GJPFH Indoor Micro-tube Breakout with CSM Fiber Optic Cable

GJPFH                                                                                          Indoor Micro-tube Breakout with CSM Fiber Optic Cable for Cabling in Buildings

Introduction:

Optical cables for vertical wiring in buildings, which is a major component of the drop segment in FTTx networks,refer to the drop cables going from ducts in buildings into rooms. Vertical wiring is mainly applied to high-storey buildings, super high-storey buildings, buildings with high-density subscribers and large information processing centers such as data centers.
The indoor micro-tube breakout optical cable uses micro-tubes(made of optical fibres and special material) as optical sub-units. Sub-units are stranded around a non-metallic central strength memberto form a cable core. Then a PVC sheath isextruded on the core. Other sheath materials are available on request.

Features:

Accurate process controlensuring good mechanical and temperature performances
Good structure design, easy for branching and splicing
Small ize and light weight, easy for installation
LSZH sheath ensuring good flame-retardant performance
Especially applicable to vertical wiring in buildings

Product Series:

GJJA

0.9mm Tight buffer

GJFJH

Duplex Tight buffer Fibers with Aramid yarns

GJFJBV

Flat Duplex Tight buffer Fibers with Aramid yarns

GJPFJV

Multi-core Tigh buffer Bundle with Aramid yarns

GJBFV-I

Multi-core Branch with CSM

GJBFJV-Il

Multi-core Branch without CSM

GJBFVH

Large Fibre Count Mixed Branch with CSM

GJPFH

Micro-tube Breakout with CSM

GJPFXJH

Breakout Tight Buffer fibers with FRP Strength

GJPFWQH

Micro-tube Breakout with FRP Strength

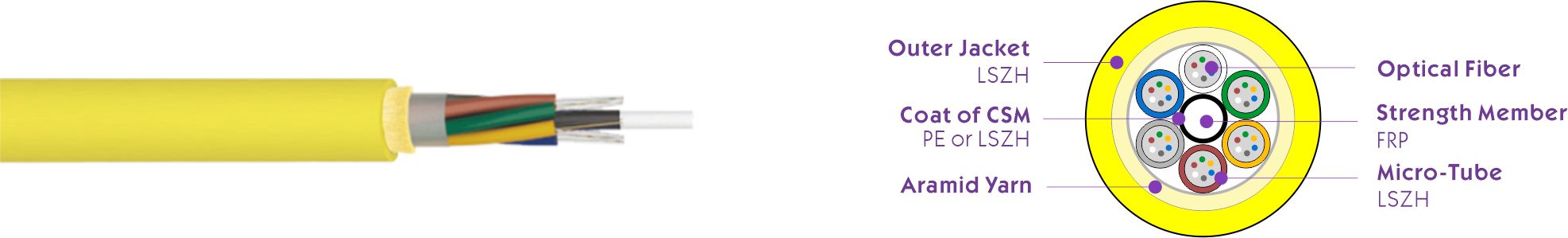

Cross Section:

Technical Characteristics:

Type

Diameter
mm

Weight
(kg/km)

Tension(N)
Long/short

Crush Resistance
Long/short
(N/100mm)

Bending Radius
Dynamic/static
mm

GJPFH -12Xn

5.5

25

200/600

300/1000

20D/10D

GJPFH -24Xn

7.1

40

200/660

300/1000

20D/10D

GJPFH -48Xn

7.6

47

400/1320

300/1000

20D/10D

  Note: This specification provides a normative reference. Adjustable outer diameter to suit your budget.Contact us ASAP.

Delivery Length:

 Standard length:2000m;Other length availabe
