GJFJH Indoor Duplex Tight buffer Fibers with Aramid yarns Fiber Optic Cable

GJFJH                                                                                            Indoor Duplex Tight buffer Fibers with Aramid yarns Fiber Optic Cable for Cabling in Buildings

Introduction:

Optical cables for vertical wiring in buildings, which is a major component of the drop segment in FTTx networks,refer to the drop cables going from ducts in buildings into rooms. Vertical wiring is mainly applied to high-storey buildings, super high-storey buildings, buildings with high-density subscribers and large information processing centers such as data centers.The duplex cable uses two 900μm or 600μm tight buffered fibres as optical transmission medium, covered with aramid yarns as the strength member, then aLSZH sheath is extruded. Other sheath materials are available on request.

Features:

Tight buffered fibres with excellent strippability
Good flame-retardant performance
Aramid yarns providing excellent tensile performance
Anti-corrosion, water blocking, flame-retardant and environment-friendly

Product Series:

GJJA

0.9mm Tight buffer

GJFJH

Duplex Tight buffer Fibers with Aramid yarns

GJFJBV

Flat Duplex Tight buffer Fibers with Aramid yarns

GJPFJV

Multi-core Tigh buffer Bundle with Aramid yarns

GJBFV-I

Multi-core Branch with CSM

GJBFJV-Il

Multi-core Branch without CSM

GJBFVH

Large Fibre Count Mixed Branch with CSM

GJPFH

Micro-tube Breakout with CSM

GJPFXJH

Breakout Tight Buffer fibers with FRP Strength

GJPFWQH

Micro-tube Breakout with FRP Strength

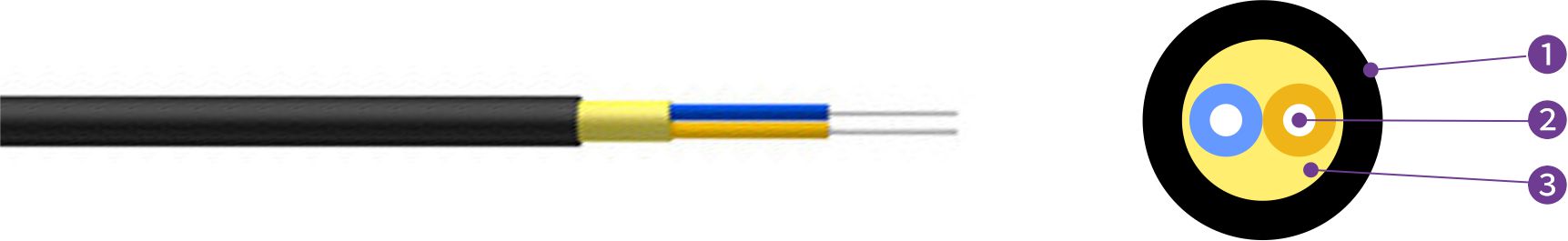

Cross Section:

1,TPU/LSZH Sheath     2,Tight Buffered Fiber    3,Aramid Yarn

Technical Characteristics:

Type

Diameter
mm

Weight
(kg/km)

Tension(N)
Long/short

Crush Resistance
Long/short
(N/100mm)

Bending Radius
Dynamic/static
mm

GJFJH-2Xn

3.5

12.6

400/800

500/1000

60/30

  Note: This specification provides a normative reference. Adjustable outer diameter to suit your budget.Contact us ASAP.

Delivery Length:

 Standard length:2000m;Other length availabe
