GJBFJV-II Indoor Multi-core Branch Fiber Optic Cable

GJBFJV-II

Indoor Multi-core Branch Fiber Optic Cable for Cabling in Buildings

■ Introduction:

Optical cables for vertical wiring in buildings, which is a major component of the drop segment in FTTx networks,refer to the drop cables going from ducts in buildings into rooms. Vertical wiring is mainly applied to high-storey buildings, super high-storey buildings, buildings with high-density subscribers and large information processing centers such as data centers.
The multi-core branch cable ll uses several simplex optical cables（made of 900μm tight buffered fibre and aramid yarns) as optical sub-units. Sub-units are stranded together to form a cable core. Then a PVCsheath is extruded on the core.Other sheath materials are available on request.

■ Features:

High tensile strength due tp stranded structure and non metallic central strength member
All dielectric design,applicable to lightning prone areas
Anti-corrosion, water blocking, flame-retardant and environment-friendly

■ Product Series:

GJJA: 0.9mm Tight buffer

GJFJH: Duplex Tight buffer Fibers with Aramid yarns

GJFJBV: Flat Duplex Tight buffer Fibers with Aramid yarns

GJPFJV: Multi-core Tigh buffer Bundle with Aramid yarns

GJBFV-I: Multi-core Branch with CSM

GJBFJV-Il: Multi-core Branch without CSM

GJBFVH: Large Fibre Count Mixed Branch with CSM

GJPFH: Micro-tube Breakout with CSM

GJPFXJH: Breakout Tight Buffer fibers with FRP Strength

GJPFWQH: Micro-tube Breakout with FRP Strength

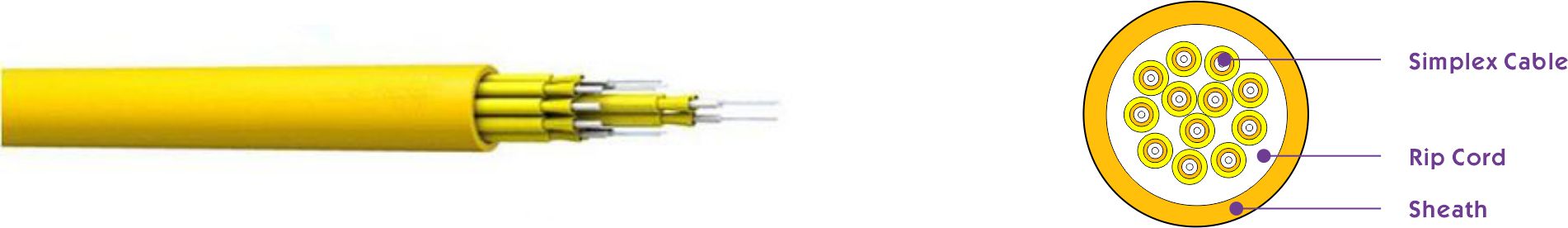

■ Cross Section:

■ Technical Characteristics:

Type: GJBFJV-II -12Xn

Diameter(mm): 10.8

Weight(kg/km): 115

Tension(N) Long/short: 200/600

Crush Resistance Long/short (N/100mm): 100/500

Bending Radius Dynamic/static(mm): 20dD/10D

■ Delivery Length:

Standard length:2000m;Other length availabe
