GJBFJVH Indoor Large Fibre Count Mixed Branch with CSM Fiber Optic Cable

  • Indoor Large Fibre Count Mixed Branch with CSM

  • N/M

  • N/M

  • Cabling in Buildings

  • ISO9001

  • 1km/Spool

  • Wooden Spool ,Φ380*380mm

  • 100km

  • 5-25 Days

  • NINGBO CHINA

  • 30%TT as deposit,70%Balance before shipping.

Availability:

Product Description


GJBFJVH                                                                                    Indoor Large Fibre Count Mixed Branch with CSM Fiber Optic Cable for Cabling in Buildings

Introduction:

Optical cables for vertical wiring in buildings, which is a major component of the drop segment in FTTx networks,refer to the drop cables going from ducts in buildings into rooms. Vertical wiring is mainly applied to high-storey buildings, super high-storey buildings, buildings with high-density subscribers and large information processing centers such as data centers.
The large fibre count mixed branchoptical cable uses 6F optical cablesmade of 900μm tight buffered fibre and aramid yarns) as optical sub-units. Sub-units are stranded around a non-metallic central strength member to form a cable core. Then a PVC sheath is extruded on the core.Other sheath materials are available on request.



























Features:

High tensile strength due tp stranded structure and non metallic central strength member
High fiber density,large capacity and compact structure
All dielectric design,applicable to lightning prone areas
Anti-corrosion, water blocking, flame-retardant and environment-friendly



























Product Series:

GJJA

0.9mm Tight buffer

GJFJH

Duplex Tight buffer Fibers with Aramid yarns

GJFJBV

Flat Duplex Tight buffer Fibers with Aramid yarns

GJPFJV

Multi-core Tigh buffer Bundle with Aramid yarns

GJBFV-I

Multi-core Branch with CSM

GJBFJV-Il

Multi-core Branch without CSM

GJBFVH

Large Fibre Count Mixed Branch with CSM

GJPFH

Micro-tube Breakout with CSM

GJPFXJH

Breakout Tight Buffer fibers with FRP Strength

GJPFWQH

Micro-tube Breakout with FRP Strength

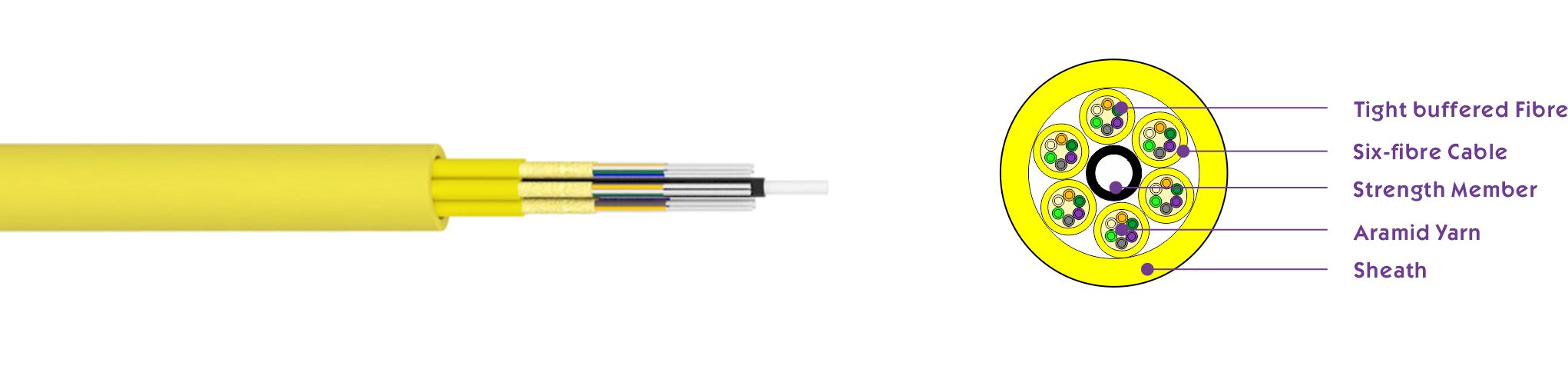

Cross Section:

GJBFJVH


























Technical Characteristics:

Type

Diameter
mm

Weight
(kg/km)

Tension(N)
Long/short

Crush Resistance
Long/short
(N/100mm)

Bending Radius
Dynamic/static
mm

GJBFJVH -36Xn

15.6

320

400/1320

300/1000

680/340

GJBFJVH -48Xn

17.6

340

400/1320

300/1000

680/340

GJBFJVH -64Xn

22

360

400/1320

300/1000

680/340

GJBFJVH -72Xn

22.5

650

400/1320

300/1000

680/340

GJBFJVH -96Xn

25.5

680

400/1320

300/1000

680/340

  Note: This specification provides a normative reference. Adjustable outer diameter to suit your budget.Contact us ASAP.


Delivery Length:

 Standard length:2000m;Other length availabe
