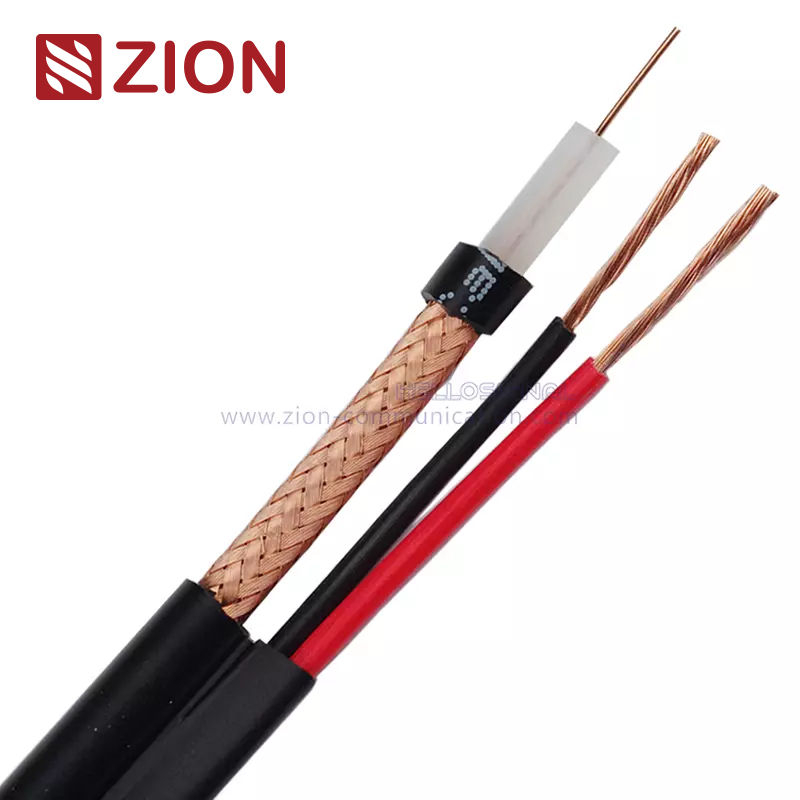

RG59 Micro CCTV POWER CABLE

■ Construction Parameters:

Inner Conductor: 7×0.18mm / 7×33 AWG Bare Copper

Dielectric: 2.2±0.05mm Solid PE

Shield: Nom. 2.7mm, 0.12mm/34AWG Copper Clad Aluminum, 95% Coverage

Jacket: 4.05±0.1mm PVC (Color by your choice)

Power Wire Conductor: 16×0.254mm Copper Clad Aluminum

Power Wire Insulation Diameter: 1.90mm PVC

Power Wire Color Code: Red, Black

Jacket (Power Wire): 5.05±0.1mm PVC

Additional Features: 1 Pair of twisted power wires

Application: For use in high-density cameras

Limited Length: Typical run length up to 375 feet

■ Electrical Characteristics:

Capacitance: 52±2 pF/m

Impedance: 75±3 Ω

Inner Conductor Resistance: 20.74 Ohms/KM at 20℃

Return Loss: Between 5 and 1000 MHz: > 17 dB

Velocity of Propagation: 0.66

Sparker Test (VAC): 3

Operating Temperature Range (PVC): -20℃ to 70℃

RoHS: YES

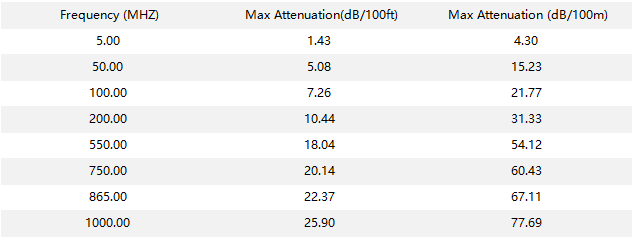

■ Attenuation (20℃):

■ Order Information:

Marking: HELLOSIGNAL KT0721 RG59 MICRO 95% CCA + 2C-0.75MM² CCA CLASS 5 CE RoHS 70°C XXXM MMDDYYYY

Package: 100m/Wooden Spool, 300m/Wooden Spool, Pallet

Delivery Time: Normally 20-25 days after receiving the deposit.

More Information: Please contact us for more details.

Brand: HELLOSIGNAL® OR OEM
