NO.7102021 RG59/U 2C 18AWG CM Figure 8

RG59/U +2C18AWG CM Figure 8
75 Ohm CCTV coaxial Cable

NO.7102021

Construction Parameters:

Inner Conductor

0.032"/0.81mm/20AWG Bare Copper

Dielectric

0.144"/3.66±0.05mm Foamed Polyethylene

Shield

0.12mmBC-Braid(95%)

Jacket

0.236"/6.00±0.1mm  PVC-CM

Power Wire Conductor

2x18AWG/(7*0.38mm) BC

Power wire Diameter of insulation

0.075"/1.90mm PVC-CM (Red,Black)

Jacket

0.199"/5.05±0.1mm PVC-CM

Application

For Use in Longer CCTV Run Lengths

Electrical Characteristics:

Inner Conductor Resistance

The Max. at 20℃ shall be  <  33.5 Ω/km (10.3 Ω/kft)

Capacitance

52 ±3 pF/m                  17±0.3 pF/ft

Impedance

75 ± 3 Ω

Return loss

between 5 and 1000MHz: > 22dB

Velocity of Propagation

0.85

Sparker Test (VAC)

4

Mechanical and Envrionmental Properties

Cable bend radius

10 times the cable diameter

Operating Temp Range

-20 ℃ to 60℃

Cable diamensions

6.0×5.05mm

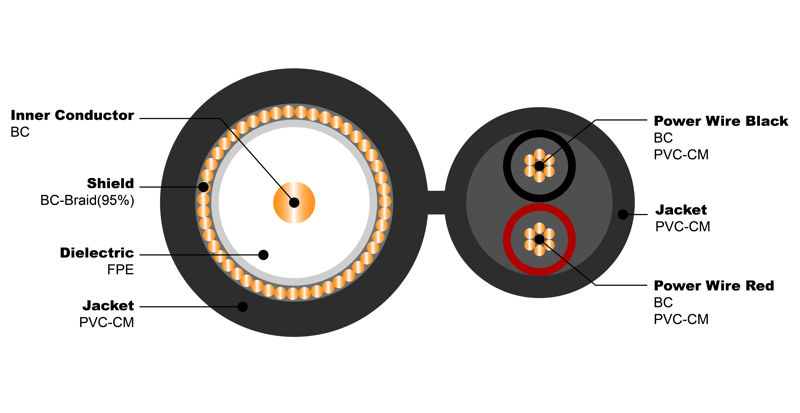

Cross Section

Attenuation(20℃):

Frequency (MHZ)

Max Attenuation(dB/100ft)

Max Attenuation (dB/100m)

5

0.86

2.82

55

2.05

6.73

83

2.45

8.04

187

3.60

11.81

211

3.80

12.47

250

4.10

13.45

300

4.45

14.60

350

4.80

15.75

400

5.10

16.73

450

5.40

17.72

500

5.70

18.70

550

5.95

19.52

600

6.20

20.34

750

6.97

22.87

865

7.52

24.67

1000

8.12

26.64

Order Informations:

Marking

HELLOSIGNAL RG59/U +2C18AWG CM Figure 8
CCTV COAXIAL CABLE 7102021 ×××M/FT

Package

Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL^® OR OEM

Similar Type:

  Coaxial Cable

  Power Cores

Catalog
No.

Cond.Type
&Nom.D.C.R

Dielectric

Shielding&
%Coverage

Jacket

Power Wire Cond.Type

Power wire
OD of
insulation

Jacket

Nom. Capacitance

RG59/U
+2C18AWG CMR
Figure 8
NO.7102022

20AWG(SOL)BC
33.5 Ω/km

Foam
FEP

BC-Braid 95%

6.00mm
PVC-CMR

2x18AWG/
(7*0.38mm) BC

1.90mm
PVC-CMR
(Red,Black)

5.05mm
PVC-CMR

52±3 pF/m

RG59/U
+2C18AWG CMP
Figure 8
NO.7102023

20AWG(SOL)BC
33.5 Ω/km

Foam
FEP

BC-Braid 95%

5.1mm
PVC-CMP

2x18AWG/
(7*0.38mm) BC

1.60mm
PVC-CMR
(Red,Black)

3.8mm
PVC-CMP

52±3 pF/m
