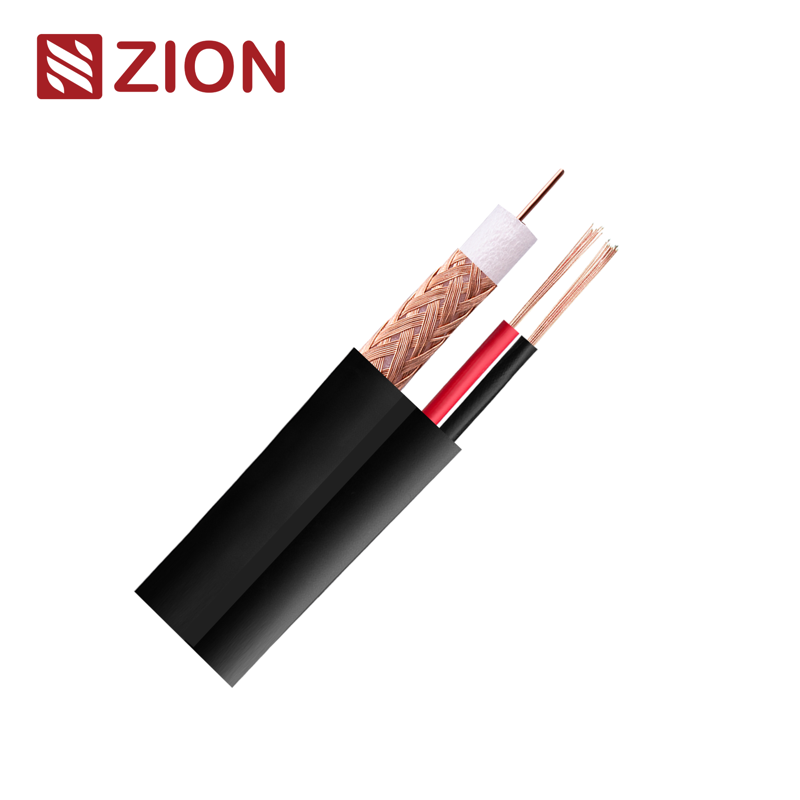

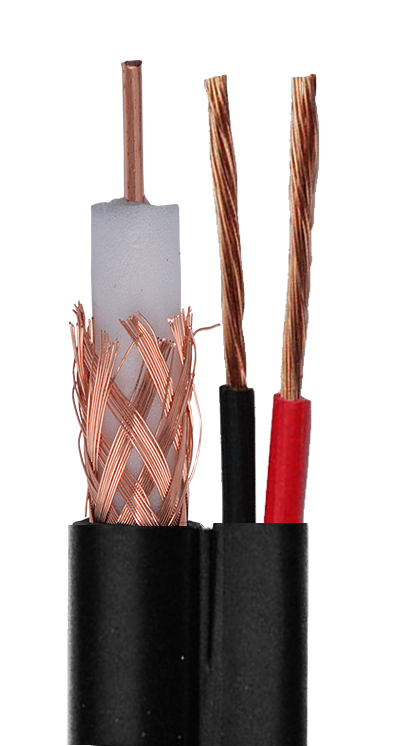

NO.7102035 RG59UK+2×0.50 PVC - UK

Construction Parameters:

Inner Conductor

0.70mm Bare Copper

Dielectric

0.144"/3.66±0.05mm Foamed Polyethylene

Shield

0.12mm BC-Braid(47%)

Jacket

0.236"/6.00±0.1mm  PVC/PE/LSZH

Power Wire Conductor

2x(24*0.15mmBC )

Power wire Diameter

0.075"/1.9mmHDPE (Red,Black)

Jacket

5.05mm PVC/PE/LSZH

Application

For Use in Longer CCTV Run Lengths

Electrical Characteristics:

Inner Conductor Resistance

54 Ohms/KM at 20℃

Capacitance

52±1 pF/m         17±0.35 pF/ft

Impedance

75 ± 3 Ω

Return loss

between 5 and 1000MHz: > 22dB

Velocity of Propagation

0.66

Sparker Test (VAC)

3

Mechanical and Envrionmental Properties

Cable bend radius

10 times the cable diameter

Operating Temp Range

-20 ℃ to 60℃

Cable diamensions

6.05×5.05mm

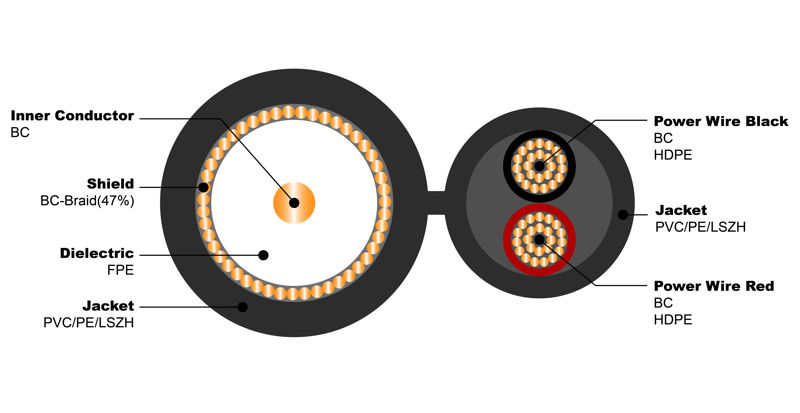

Cross Section

Attenuation(20℃):

Frequency (MHZ)

Max Attenuation(dB/100ft)

Max Attenuation (dB/100m)

5

0.82

2.50

10

0.92

2.80

50

2.13

6.50

100

2.92

8.90

200

4.20

12.80

400

6.07

18.50

700

7.51

22.90

900

8.79

26.80

1000

9.25

28.20

※Note: The above transmission performance tor the 100M, 20±2℃ under the conditions tested.

Order Informations

Marking

HELLOSIGNAL RG59K + 2C0.5 Figure 8
CCTV COAXIAL CABLE 7102035 ×××M/FT

Package

Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL^® OR OEM
