RG59 2C
hellosignal
7102043
Coaxial Cable
75 ohm
UL, ETL, CE, RoHS
100m, 305m,500m,1000m,500ft,1000ft
roll, wooden spool, carton, pallet
30KM
Normally 15 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight
75 Ohm CCTV coaxial Cable NO.7102043 | ||
Construction Parameters: | ||
Inner Conductor | 0.643mm CCS | |
Dielectric | 3.71mm Foamed Polyethylene | |
Shield 1 | AL Foil | |
Shield 2 | 0.12mmX32 AL wire | |
Jacket | 6.0mm PVC/PE/LSZH | |
Power Wire Conductor | 2x(16*0.25mmCCA ) | |
Power wire Diameter of insulation | 2.0mmPVC (Red,Black) | |
Jacket | 9.5×7.5mm PVC/PE/LSZH | |
Application | For Use in Longer CCTV Run Lengths | |
Electrical Characteristics: | ||
Inner Conductor Resistance | 252.83Ohms/KM at 20℃ | |
Capacitance | 62±2 pF/m | |
Impedance | 75 ± 3 Ω | |
Return loss | between 5 and 1000MHz: > 22dB | |
Velocity of Propagation | 0.66 | |
Sparker Test (VAC) | 3 | |
Mechanical and Envrionmental Properties | ||
Cable bend radius | 10 times the cable diameter | |
Operating Temp Range | -20 ℃ to 60℃ | |
Cable diamensions | 9.5×7.5mm | |

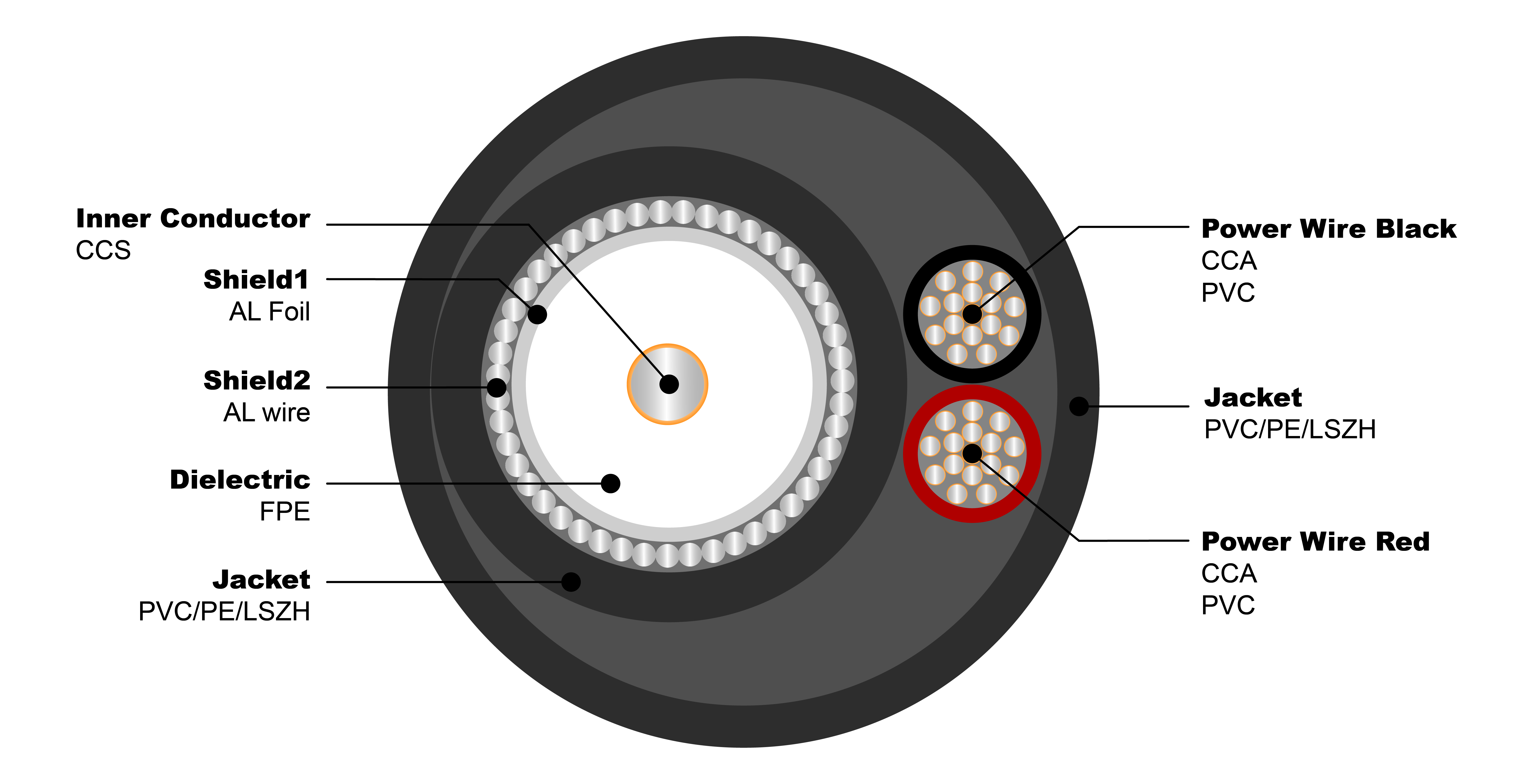

Cross Section | ||
| ||
Attenuation(20℃): | ||
Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) |
5 | 0.66 | 2.16 |
50 | 2.07 | 6.78 |
100 | 2.92 | 9.58 |
300 | 5.06 | 16.58 |
450 | 6.19 | 20.31 |
865 | 8.58 | 28.15 |
1000 | 9.23 | 30.26 |
1750 | 12.20 | 40.03 |
2150 | 13.53 | 44.37 |
2500 | 14.59 | 47.84 |
3000 | 15.98 | 52.41 |
Order Informations: | ||
Marking | HELLOSIGNAL RG59CCS+2x0.75, Common | |
Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | |
Delivery time | Normally 25 days after received the deposit. | |
Brand | HELLOSIGNAL® OR OEM | |
75 Ohm CCTV coaxial Cable NO.7102043 | ||
Construction Parameters: | ||
Inner Conductor | 0.643mm CCS | |
Dielectric | 3.71mm Foamed Polyethylene | |
Shield 1 | AL Foil | |
Shield 2 | 0.12mmX32 AL wire | |
Jacket | 6.0mm PVC/PE/LSZH | |
Power Wire Conductor | 2x(16*0.25mmCCA ) | |
Power wire Diameter of insulation | 2.0mmPVC (Red,Black) | |
Jacket | 9.5×7.5mm PVC/PE/LSZH | |
Application | For Use in Longer CCTV Run Lengths | |
Electrical Characteristics: | ||
Inner Conductor Resistance | 252.83Ohms/KM at 20℃ | |
Capacitance | 62±2 pF/m | |
Impedance | 75 ± 3 Ω | |
Return loss | between 5 and 1000MHz: > 22dB | |
Velocity of Propagation | 0.66 | |
Sparker Test (VAC) | 3 | |
Mechanical and Envrionmental Properties | ||
Cable bend radius | 10 times the cable diameter | |
Operating Temp Range | -20 ℃ to 60℃ | |
Cable diamensions | 9.5×7.5mm | |
Cross Section | ||
| ||
Attenuation(20℃): | ||
Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) |
5 | 0.66 | 2.16 |
50 | 2.07 | 6.78 |
100 | 2.92 | 9.58 |
300 | 5.06 | 16.58 |
450 | 6.19 | 20.31 |
865 | 8.58 | 28.15 |
1000 | 9.23 | 30.26 |
1750 | 12.20 | 40.03 |
2150 | 13.53 | 44.37 |
2500 | 14.59 | 47.84 |
3000 | 15.98 | 52.41 |
Order Informations: | ||
Marking | HELLOSIGNAL RG59CCS+2x0.75, Common | |
Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | |
Delivery time | Normally 25 days after received the deposit. | |
Brand | HELLOSIGNAL® OR OEM | |
RG59CCS+2x0.75, Common
