NO.7102026 RG59/U 2C18AWG CMP Common

  • RG59 2C

  • hellosignal

  • 7102026

  • Coaxial Cable

  • 75 ohm

  • UL, ETL, CE, RoHS

  • 100m, 305m,500m,1000m,500ft,1000ft

  • roll, wooden spool, carton, pallet

  • 30KM

  • Normally 15 working days

  • NINGBO, SHANGHAI

  • T/T, L/C at sight, D/P at sight

Availability:

Specification

zion LOGORG59/U +2C18AWG CMP Common

75 Ohm CCTV coaxial Cable

NO.7102026

Construction Parameters:

Inner Conductor

0.032"/0.81mm/20AWG Bare Copper

Dielectric

3.43mmFoam FEP

Shield

0.12mmBC-Braid(95%)

Jacket

0.201"/5.10±0.1mm  PVC-CMP

Power Wire Conductor

2x18AWG/(7*0.38mm) BC

Power wire Diameter of insulation

0.063"/1.60mm PVC-CMP (Red,Black)

Jacket

7.9mmPVC-CMP

Application

For Use in Longer CCTV Run Lengths

Electrical Characteristics:

Inner Conductor                         Resistance

The Max. at 20 shall be

<  33.5 Ω/km (10.3 Ω/kft)

Capacitance

52 ±3 pF/m                  17±0.3 pF/ft


Impedance

75 ± 3 Ω

Return loss

between 5 and 1000MHz: > 22dB

Velocity of Propagation

0.85

Sparker Test (VAC)

4



Mechanical and Envrionmental Properties

Cable bend radius

10 times the cable diameter

Operating Temp Range

-20  to 75

Cable diamensions

7.9mm

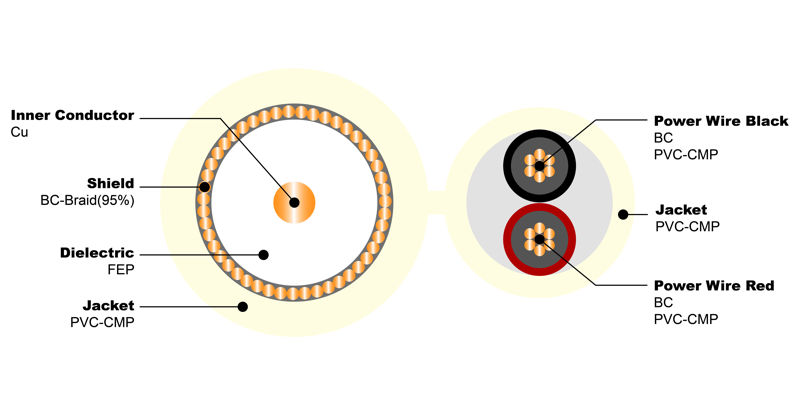

Cross Section


Attenuation(20℃):

Frequency (MHZ)

Max Attenuation(dB/100ft)

Max Attenuation (dB/100m)

1

0.34

1.11

10

1.05

3.44

100

3.60

11.80

200

5.20

17.05

400

7.70

25.25

700

10.80

35.41

900

12.40

40.66

1000

13.20

43.28


























Order Informations:

Marking

HELLOSIGNAL RG59U +2C18AWG CMP Common
CCTV COAXIAL CABLE 7102026 ×××M/FT

Package

Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
