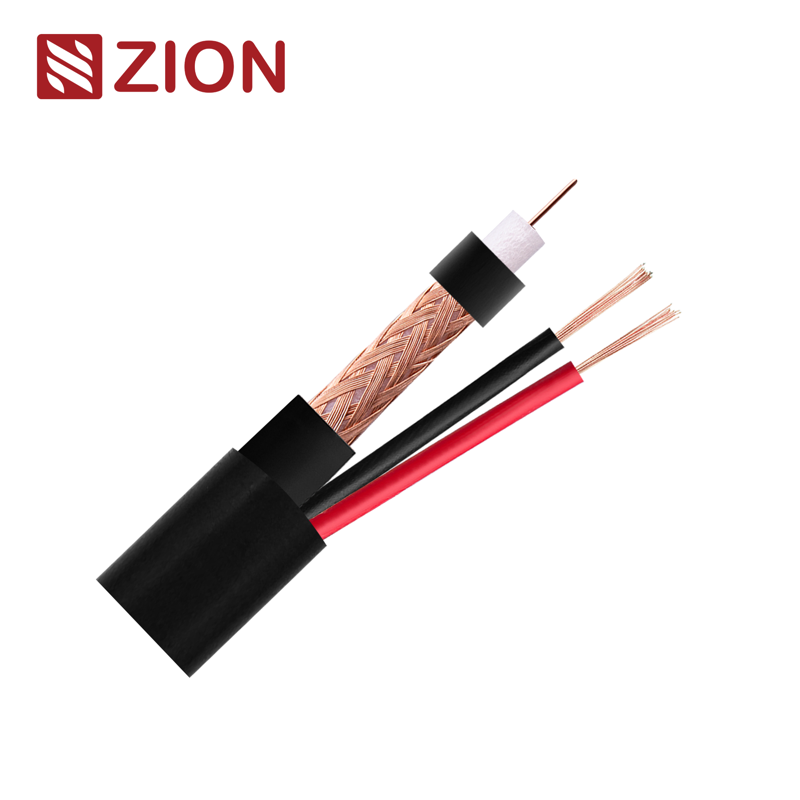

NO.7102024 RG59/U 2C 18AWG CM Common

Construction Parameters:

Inner Conductor

0.032"/0.81mm/20AWG Bare Copper

Dielectric

0.144"/3.66±0.05mm Foamed Polyethylene

Shield

0.12mmBC-Braid(95%)

Jacket

0.236"/6.00±0.1mm  PVC-CM

Power Wire Conductor

2x18AWG/(7*0.38mm) BC

Power wire Diameter of insulation

0.075"/1.90mm PVC-CM (Red,Black)

Jacket

9.5mm PVC-CM

Application

For Use in Longer CCTV Run Lengths

Electrical Characteristics:

Inner Conductor                         Resistance

The Max. at 20℃ shall be

<  33.5 Ω/km (10.3 Ω/kft)

Capacitance

52 ±3 pF/m                  17±0.3 pF/ft

Impedance

75 ± 3 Ω

Return loss

between 5 and 1000MHz: > 22dB

Velocity of Propagation

0.85

Sparker Test (VAC)

4

Mechanical and Envrionmental Properties

Cable bend radius

10 times the cable diameter

Operating Temp Range

-20 ℃ to 60℃

Cable diamensions

9.5mm

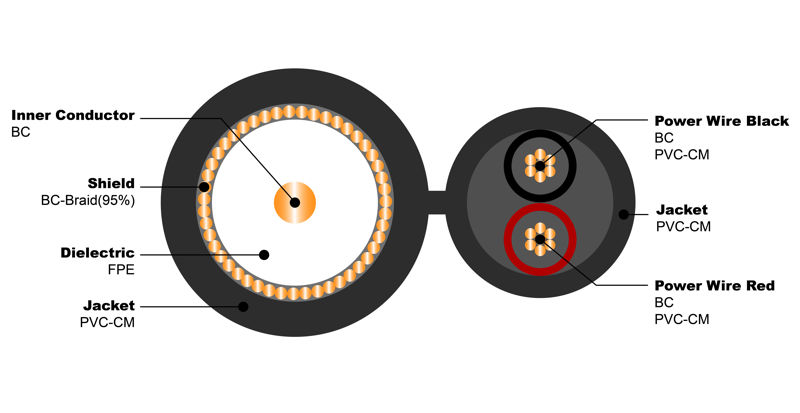

Cross Section

Attenuation(20℃):

Frequency (MHZ)

Max Attenuation(dB/100ft)

Max Attenuation (dB/100m)

5

0.86

2.82

55

2.05

6.73

83

2.45

8.04

187

3.60

11.81

211

3.80

12.47

250

4.10

13.45

300

4.45

14.60

350

4.80

15.75

400

5.10

16.73

450

5.40

17.72

500

5.70

18.70

550

5.95

19.52

600

6.20

20.34

750

6.97

22.87

865

7.52

24.67

1000

8.12

26.64

Order Informations:

Marking

HELLOSIGNAL RG59U +2C18AWG CM Common
CCTV COAXIAL CABLE 7102024 ×××M/FT

Package

Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL^® OR OEM
