RG59 2C
hellosignal
7102041
Coaxial Cable
75 ohm
UL, ETL, CE, RoHS
100m, 305m,500m,1000m,500ft,1000ft
roll, wooden spool, carton, pallet
30KM
Normally 15 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight
75 Ohm CCTV coaxial Cable NO.7102041 | ||
Construction Parameters: | ||
Inner Conductor | 0.5mm Bare Copper | |
Dielectric | 3.5mm Foamed Polyethylene | |
Shield 1 | Al/PET-Foil | |
Shield 2 | 0.12mmCCA-Braid(50%) | |
Jacket | 5.6mm PVC/PE/LSZH | |
Power Wire Conductor | 2x(16*0.25mmCCA ) | |
Power wire Diameter of insulation | 2.0mmPVC (Red,Black) | |
Jacket | 5.05mm PVC/PE/LSZH | |
Application | For Use in Longer CCTV Run Lengths | |
Electrical Characteristics: | ||
Inner Conductor Resistance | 87.6 Ohms/KM at 20℃ | |
Capacitance | 69±2 pF/m | |
Impedance | 75 ± 3 Ω | |
Return loss | between 5 and 1000MHz: > 22dB | |
Velocity of Propagation | 0.66 | |
Sparker Test (VAC) | 3 | |
Mechanical and Envrionmental Properties | ||
Cable bend radius | 10 times the cable diameter | |
Operating Temp Range | -20 ℃ to 60℃ | |
Cable diamensions | 5.6×5.05mm | |

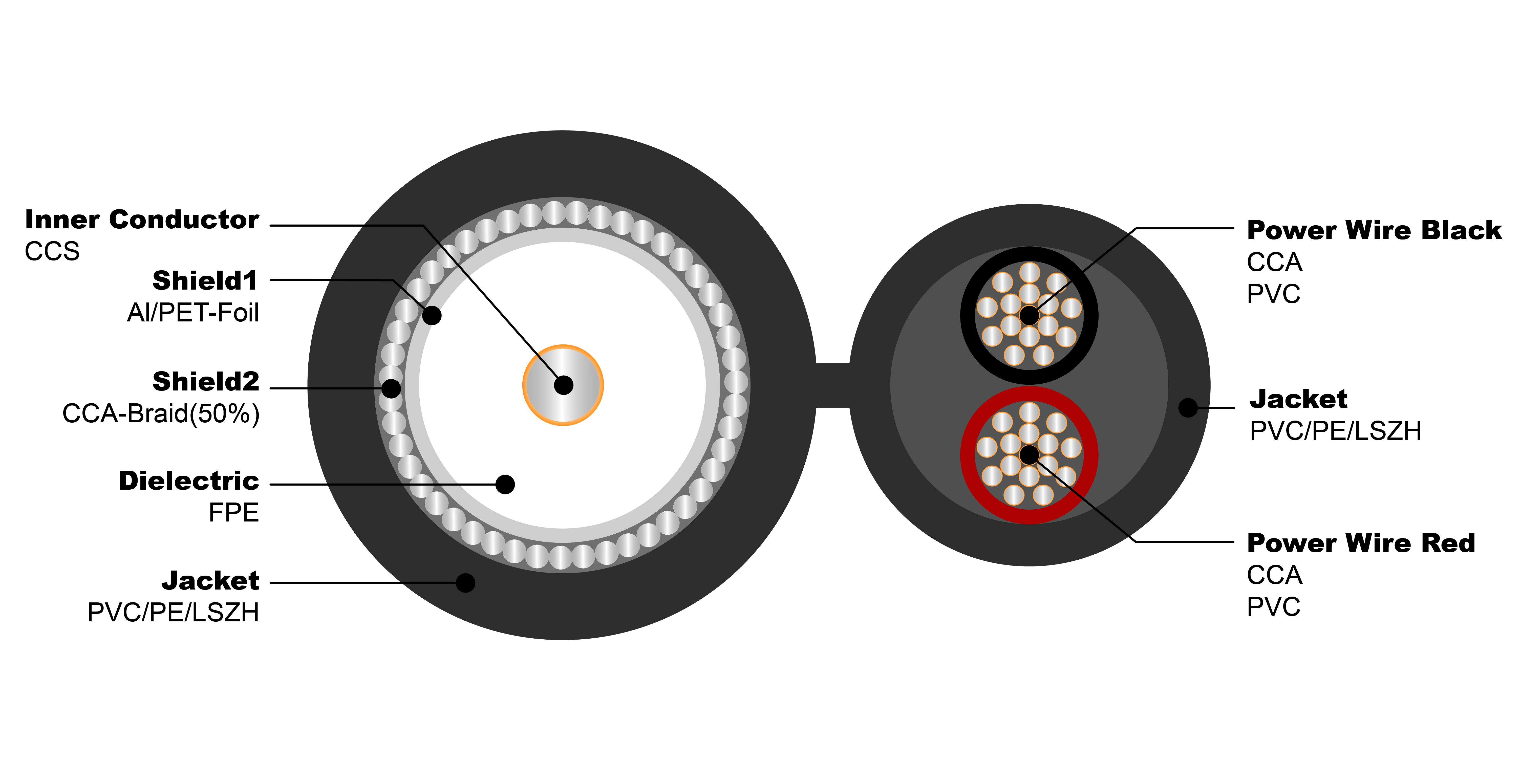

Cross Section | ||
| ||
Attenuation(20℃): | ||
Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) |
5 | 0.81 | 2.66 |
50 | 2.55 | 8.35 |
100 | 3.60 | 11.80 |
300 | 6.23 | 20.42 |
450 | 7.62 | 24.99 |
865 | 10.57 | 34.66 |
1000 | 11.36 | 37.26 |
1750 | 15.02 | 49.29 |
2150 | 16.65 | 54.62 |
2500 | 17.96 | 58.90 |
3000 | 19.67 | 64.52 |
Order Informations: | ||
Marking | HELLOSIGNAL RG59 E 50% CCA + 2C0.75MM2 CCA Figure 8 | |
Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | |
Delivery time | Normally 25 days after received the deposit. | |
Brand | HELLOSIGNAL® OR OEM | |
75 Ohm CCTV coaxial Cable NO.7102041 | ||
Construction Parameters: | ||
Inner Conductor | 0.5mm Bare Copper | |
Dielectric | 3.5mm Foamed Polyethylene | |
Shield 1 | Al/PET-Foil | |
Shield 2 | 0.12mmCCA-Braid(50%) | |
Jacket | 5.6mm PVC/PE/LSZH | |
Power Wire Conductor | 2x(16*0.25mmCCA ) | |
Power wire Diameter of insulation | 2.0mmPVC (Red,Black) | |
Jacket | 5.05mm PVC/PE/LSZH | |
Application | For Use in Longer CCTV Run Lengths | |
Electrical Characteristics: | ||
Inner Conductor Resistance | 87.6 Ohms/KM at 20℃ | |
Capacitance | 69±2 pF/m | |
Impedance | 75 ± 3 Ω | |
Return loss | between 5 and 1000MHz: > 22dB | |
Velocity of Propagation | 0.66 | |
Sparker Test (VAC) | 3 | |
Mechanical and Envrionmental Properties | ||
Cable bend radius | 10 times the cable diameter | |
Operating Temp Range | -20 ℃ to 60℃ | |
Cable diamensions | 5.6×5.05mm | |
Cross Section | ||
| ||
Attenuation(20℃): | ||
Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) |
5 | 0.81 | 2.66 |
50 | 2.55 | 8.35 |
100 | 3.60 | 11.80 |
300 | 6.23 | 20.42 |
450 | 7.62 | 24.99 |
865 | 10.57 | 34.66 |
1000 | 11.36 | 37.26 |
1750 | 15.02 | 49.29 |
2150 | 16.65 | 54.62 |
2500 | 17.96 | 58.90 |
3000 | 19.67 | 64.52 |
Order Informations: | ||
Marking | HELLOSIGNAL RG59 E 50% CCA + 2C0.75MM2 CCA Figure 8 | |
Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | |
Delivery time | Normally 25 days after received the deposit. | |
Brand | HELLOSIGNAL® OR OEM | |
RG59 E 50% CCA + 2C0.75MM2 CCA Figure 8
