RS485 Cable
hellosignal
732013
Power and Control Cables

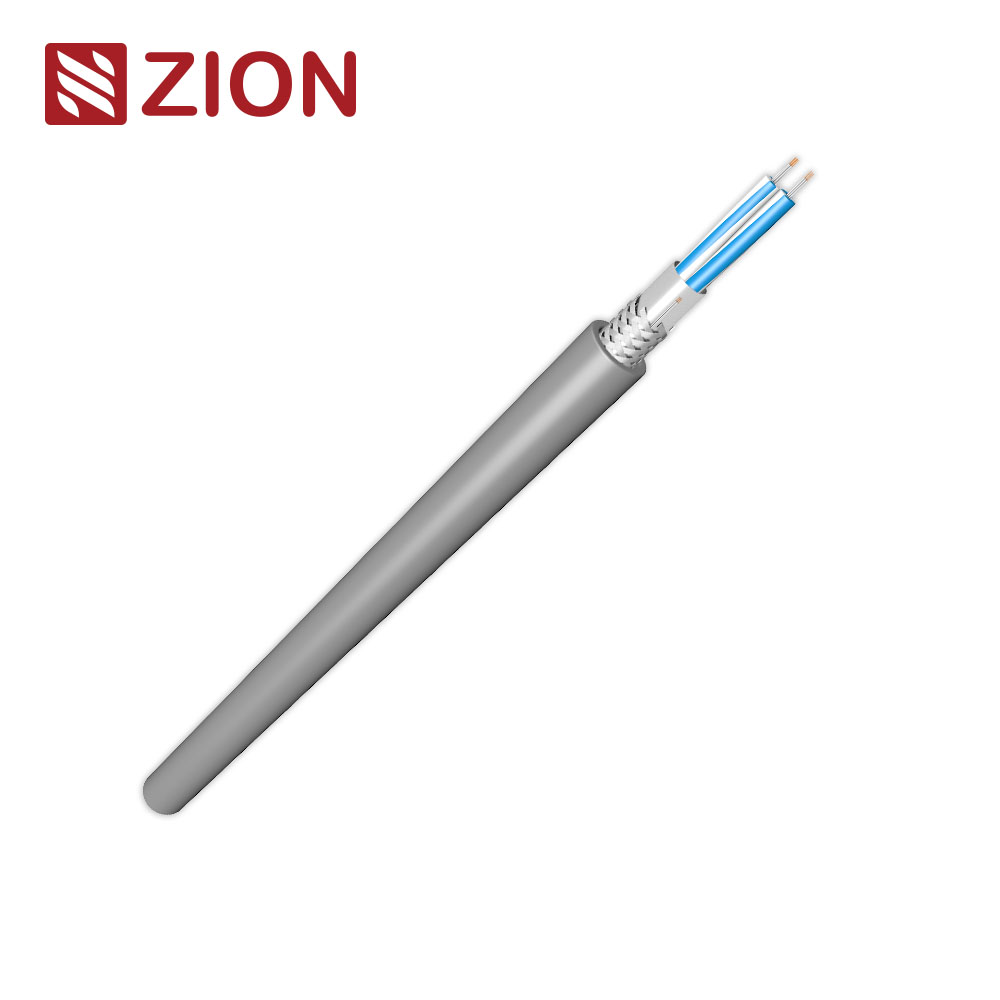

RS485 Cable, 24AWG 1P, Foil+Braid, PVC CMP, 120Ω
SKU: 732013
RS485/RS422/RS232 serial data communication
Industrial control systems (PLC, HMI, SCADA)
Building automation systems
Security and access control wiring
Point-to-point or multi-drop data networks

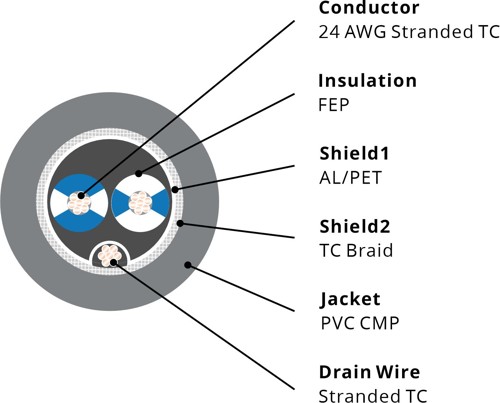

Component | Specification |
Conductor | 1 Pair, AWG 24 (7/32# = 7/0.20 mm) stranded tinned copper (TC) |
Insulation Material | FEP (Fluorinated Ethylene Propylene) |
Insulation Thickness | 0.025 in in (0.64 mm) |
Insulation Diameter | 0.074 in (1.9 mm) |
Color Code (per pair) | White/Blue Stripe & Blue/White Stripe |
Or Type 2 | Each Pair: Pure Color & White: |
Shield 1 (Foil) | Overall (Aluminum + Polyester), ＞110% coverage |
Drain Wire | AWG 24 (7/32# = 7/0.20 mm) stranded tinned copper (TC) |
Shield 2 (Braid) | Tinned Copper Braid, 90% coverage |
Jacket Material | PVC (CMP Plenum Rated), Color customization. |
Jacket Thickness | 0.015 in (0.38 mm) |
Overall Diameter | 0.240 in (5.18±0.4mm) |
Property | Value |
Conductor DCR | 24 Ohm/1000 ft |
Capacitance (Cond–Cond) | 12 pF/ft (39 pF/m) |
Capacitance (Cond–Shield) | 22 pF/ft （72 pF/m) |
Characteristic Impedance | 120 Ohm |
Velocity of Propagation | 76% |
Max. Current (Per Conductor) | 4 Amps @ 25ºC |
Insertion Loss @ 1 MHz | 0.6 dB/100 ft |
Voltage Rating | 300 V (UL CMP) |
Property | Value |
Operating Temperature | 0°C to +75°C |
Bend Radius (Min.) | 57.2 mm (2.25 in) |
Standard / Regulation | Compliance |
Flammability / Fire Resistance | NFPA 262, UL 910 (Plenum), FT6, IEC 60332-1-2 |
CPR Compliance (EU) | CPR Euroclass: Eca |
NEC / UL Compliance | UL CMP, Article 800 |
CEC / c(UL) Compliance | CMP |
EU Compliance | CE Mark, RoHS |
Environmental Suitability | Indoor |
