PROFINET Cable

PROFINET

Application

Cable widely used in industrial Ethernet fields,
such as machines, equipment, instrument and control panel,
different cable  design can be used in different applircatlns.

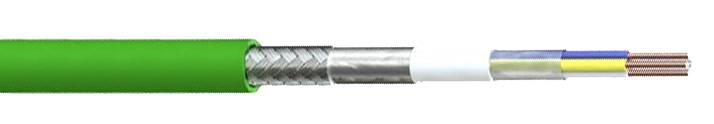

Cable Construction

Conductor: Solid or stranded copper wire

Insulation: PE

Inner jacket: see attached list

Shield: AL/Mylar screen and TC braid

Outer jacket: see attached list

Color: green(similar to RAL 6018)










Cable Construction

Fire Resistance meetsIEC60332-1

UV resistance

AL/Mylar and tinned copper braid,excellent Anti-EMI performance

Excellent transmission performance

Anti-hydrolysis,abrasion resistance


Cross Section

PROFINET CablePROFINET Cable..

Technical data

Temperature range

 .-40℃ to 80℃

Characteristic impedance

100±15 Ohm

Min bending radius

Fixed installation8x cable diameter

Occasional movement10x cable diameter

Power Chain12x cable diameter

Loop conductor DC resistance at 20

≤120ohm/km

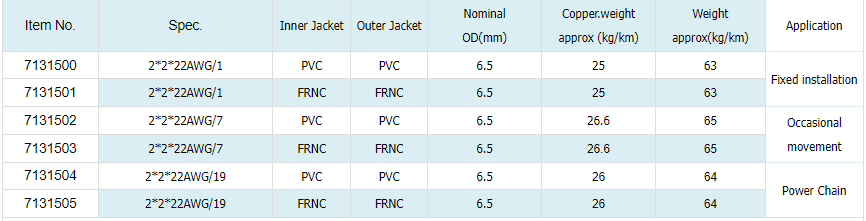

Product List

Item No.

Spec.

Inner Jacket

Outer Jacket

Nominal
OD(mm)

Copper.weight approx (kg/km)

Weight approx(kg/km)

Application

7131500

2*2*22AWG/1

PVC

PVC

6.5

25

63

Fixed installation

7131501

2*2*22AWG/1

FRNC

FRNC

6.5

25

63

7131502

2*2*22AWG/7

PVC

PVC

6.5

26.6

65

Occasional movement

7131503

2*2*22AWG/7

FRNC

FRNC

6.5

26.6

65

7131504

2*2*22AWG/19

PVC

PVC

6.5

26

64

Power Chain

7131505

2*2*22AWG/19

FRNC

FRNC

6.5

26

64


Order Informations

Marking

HELLOSIGNAL Industrial PROFINET Cable XXXFT/M

Package

100m/Reel, 300m/Wooden Spool

Delivery time

Normally 25 days after received the deposit.
