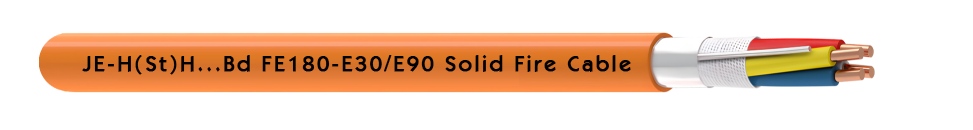

JE-H(St)H FE180-E30/E90 Solid Fire Cable

Fire Communication cable with circuit integrity

CONSTRUCTION

REFERENCE STANDARDS

Conductors:

Flame Propagation

Plain annealed copper wire,

VDE 0482-266-2-4/IEC 60332-3-24

Class 1

Fire Resistant

Solid

VDE 0472-814/IEC 60331-11(FE 180)

Insulation:

Circuit Integrity

FRNC-compound HI 1

E30/E90: DIN 4102-12

Screen 1st:

Halogen Free

Fibre Foil,  ＞120% Coverage

DIN EN 50267/IEC 60754

Drain Wire:

Smoke Density

Tinned Copper; OD: 0.80mm

DIN EN 61034/IEC 61034

Screen 2nd:

TEMPERATURE RANGE

Aluminum Polyester Tape, ＞120% Coverage

During Operation
-30℃ up to +180℃
During Installation
-5℃ up to +50℃

Outer Sheath:

FRNC-compound HM2

Sheath Color:

Orange

ELECTRICAL DATA

IDENTIFICATION OF CORES

Insulation Resistance @ 20°C:

> 100 M Ohm*Km

Colours acc. to VDE 0815

Test Voltage Core-Core/ Core-Screen

500 V  /  2000V

Mutual Capacitance:

< 120 nF/km at 800 Hz

Peak Operating Voltage:

225 V

POPULAR PACKING

CHARACTERISTICS

Min. Bending Radius
7.5 x cable diameter

100M,300M,500M Wooden Spool

CABLE PRINTING

HANGZHOU ZION Fire Cables JE-H(St)H...Bd  FE180/E30-E90 Solid
×C×SQMM+BATCH NO.+METER MARKING

JE-H(St)H  FE180-E30/E90 Solid Fire Cables

ZION  CODE

No of conductors
× cross section [mm²]

CONDUCTOR
NOM.DIA
[mm]

DIELECTRIC
NOM.DIA
[mm]

OUTER
NOM.DIA
[mm]

7115001C1OR×××

1×2×0.8

0.8±0.005 mm

12

6.1±0.2 mm

7115002C1OR×××

2×2×0.8

0.8±0.005 mm

25

7.1±0.2 mm

7115003C1OR×××

4×2×0.8

0.8±0.005 mm

45

8.3±0.2 mm

7115004C1OR×××

8×2×0.8

0.8±0.005 mm

85

9.6±0.2 mm

7115005C1OR×××

12×2×0.8

0.8±0.005 mm

126

11.5±0.2 mm

7115006C1OR×××

16×2×0.8

0.8±0.005 mm

166

6.5±0.2 mm

7115007C1OR×××

20×2×0.8

0.8±0.005 mm

206

7.4±0.2 mm

7115008C1OR×××

32×2×0.8

0.8±0.005 mm

326

8.7±0.2 mm

7115009C1OR×××

40×2×0.8

0.8±0.005 mm

407

10.1±0.2 mm

7115010C1OR×××

52×2×0.8

0.8±0.005 mm

529

7.1±0.2 mm

* Cable tested as VDE 0472 / VDE 0482

* If the cables are with a WHITE outer sheath the ZION CODE will change in: 7******C5W***

* CUSTOMIZED ITEMS: Printing on Sheath; Lable; Carton

* Conductor will be within the tolerance range: ±0.005mm
