Fire Cable
BS 6387:2013 Cat.C-W-Z
100m,500m,500ft,1000ft
roll, wooden spool, carton, pallet
10KM
Normally 15 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight

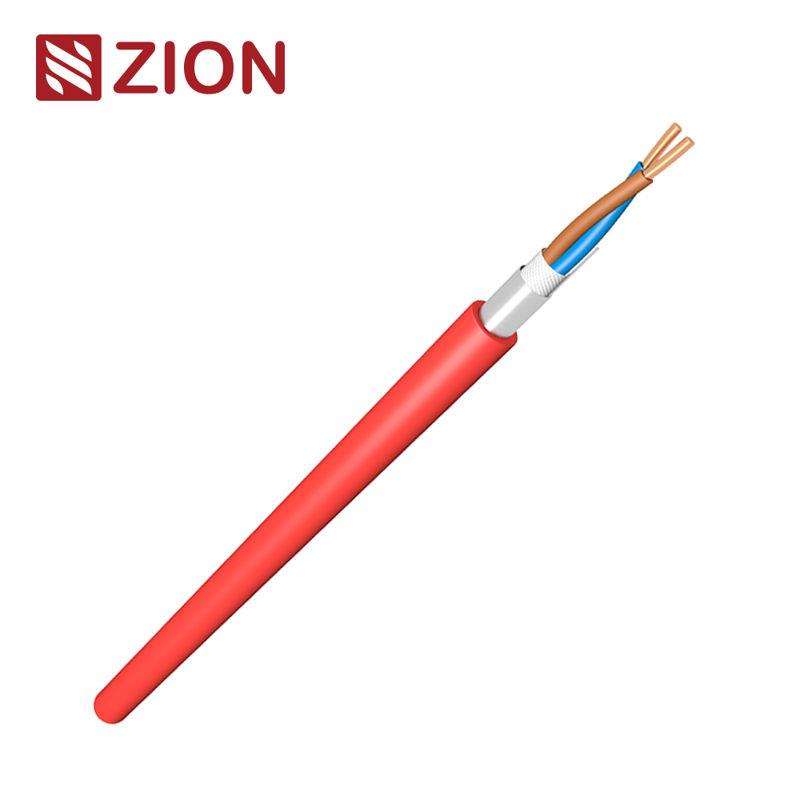

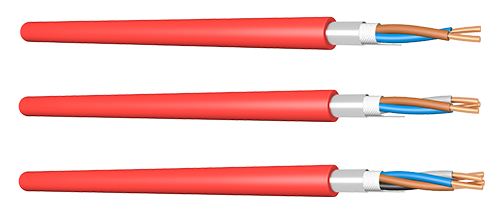

BS 6387:2013 Cat.C-W-Z Solid Cable
L*** Certificated
Conductors:
Plain annealed copper wre
Class 1
Solid
Insulation:
Ceramicized Silicon Rubber
Screen 1st:
Fibre Glass Tape,>110% Coverage
Drain wire:
Tinned Copper; OD: 0.80mm
Screen 2nd:
Aluminum Polyester Tape, >120% Coverage
Outer sheath:
Thermoplastic Low Smoke, Halogen Free
Sheath Color:
Red | white
Flame Propagation
BS 6387:2013 Cat.C-W-Z
EN 50200:2015 Class PH120
EN 60332-3-24:2009
EN 60332-1-2:2004
Acidity
EN/IEC 60754-1:2014
Smoke Density
EN /IEC 61034-2:2005+A1:2013
Insulation Resistance at 20°C: Greater than 200 MΩ·km.
Test Voltage (Core-Core/Core-Screen): 2000 V / 2000 V.
Mutual Capacitance: Less than 150 nF/km.
Operating Voltage: 300/500 V.
Lengths of 100 meters, 300 meters, or 500 meters on wooden spools.
EN 50575:2016 -Cca s1A,do, a1
During Operation: -30°C up to +180°C.
During Installation: -5°C up to +50°C.
HANGZHOU ZION Fire Cables L*** BS 6387:2013 Cat.C-W-Z Solid
300/500V ×C×SQMM+BATCH NO.+METER MARKING
BS 6387:2013 Cat.C-W-Z Solid Cable
L*** Certificated
Conductors:
Plain annealed copper wre
Class 1
Solid
Insulation:
Ceramicized Silicon Rubber
Screen 1st:
Fibre Glass Tape,>110% Coverage
Drain wire:
Tinned Copper; OD: 0.80mm
Screen 2nd:
Aluminum Polyester Tape, >120% Coverage
Outer sheath:
Thermoplastic Low Smoke, Halogen Free
Sheath Color:
Red | white
Flame Propagation
BS 6387:2013 Cat.C-W-Z
EN 50200:2015 Class PH120
EN 60332-3-24:2009
EN 60332-1-2:2004
Acidity
EN/IEC 60754-1:2014
Smoke Density
EN /IEC 61034-2:2005+A1:2013
Insulation Resistance at 20°C: Greater than 200 MΩ·km.
Test Voltage (Core-Core/Core-Screen): 2000 V / 2000 V.
Mutual Capacitance: Less than 150 nF/km.
Operating Voltage: 300/500 V.
Lengths of 100 meters, 300 meters, or 500 meters on wooden spools.
EN 50575:2016 -Cca s1A,do, a1
During Operation: -30°C up to +180°C.
During Installation: -5°C up to +50°C.
HANGZHOU ZION Fire Cables L*** BS 6387:2013 Cat.C-W-Z Solid
300/500V ×C×SQMM+BATCH NO.+METER MARKING
