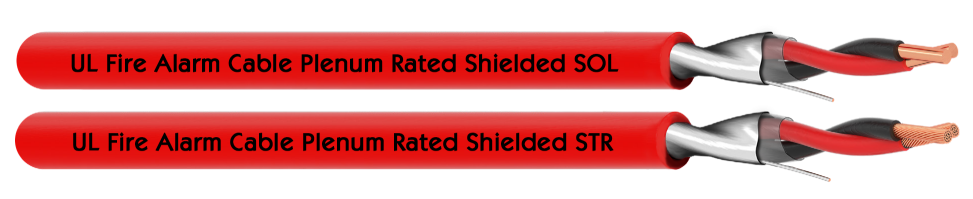

UL Fire Alarm Cable Plenum Rated Shielded Fire Cables

UL Certificate Number: E541137

CONSTRUCTION

REFERENCE STANDARDS

Conductors:

NEC Article 725

Plain annealed copper wire,

NEC Article 760

SOL = Solid = Class 1

UL 13 CL2P/CL3P

STR = Stranded = Class 2 or Class 5

NFPA 262

Insulation:

ANSI/NFPA 70

LS-PVC

UL 1581

Drain Wire:

UL 910

Tinned Copper drain wire

Screen

Aluminum Mylar Tape

Ripcord

TEMPERATURE RANGE

With

During Operation
-20℃ up to +75℃
During Installation
0℃ up to +65℃

Outer Sheath:

LS-PVC

Sheath Color:

Red /White/ More...

ELECTRICAL DATA

IDENTIFICATION OF CORES

Operating Voltage:

Black / Red / Green / Yellow

300V max.

POPULAR PACKING

CHARACTERISTICS

Min. Bending Radius
7.5 x cable diameter

500 ft packages, reel or pull box

1000 ft packages, reel or pull box

CABLE PRINTING

HANGZHOU ZION Fire Cables SKU ×AWG×C 75C E******* (UL/ETL) SOL/STR Shielded
CL2P/CL3P SUN RES(ROHS) +BATCH NO.+FT DEVICE/ZONE  MARKING

UL Fire Alarm Cable Plenum Shielded        Solid BC

ZION  CODE

Type

AWG

#/C

NOM.DIA.
[mm]

Jacket
Color

UL/NEC

7110142SOLSR×××

18/2 SOL BC Plenum

18

2

3.57

Red

CL2P/CL3P

7110143SOLSR×××

18/4 SOL BC Plenum

18

4

4.27

Red

CL2P/CL3P

7110144SOLSR×××

18/6 SOL BC Plenum

18

6

4.27

Red

CL2P/CL3P

7110145SOLSR×××

16/2 SOL BC Plenum

16

2

4.45

Red

CL2P/CL3P

7110146SOLSR×××

16/4 SOL BC Plenum

16

4

5.13

Red

CL2P/CL3P

7110147SOLSR×××

14/2 SOL BC Plenum

14

2

5.28

Red

CL2P/CL3P

7110148SOLSR×××

14/4 SOL BC Plenum

14

4

6.86

Red

CL2P/CL3P

7110149SOLSR×××

12/2 SOL BC Plenum

12

2

6.22

Red

CL2P/CL3P

UL Fire Alarm Cable Plenum Unshielded       Stranded BC

ZION  CODE

Type

AWG

#/C

NOM.DIA.
[mm]

Jacket
Color

UL/NEC

7110342SOLSR×××

18/2 SOL BC Plenum

18

2

3.97

Red

CL2P/CL3P

7110343SOLSR×××

18/4 SOL BC Plenum

18

4

4.67

Red

CL2P/CL3P

7110344SOLSR×××

18/6 SOL BC Plenum

18

6

4.67

Red

CL2P/CL3P

7110345SOLSR×××

16/2 SOL BC Plenum

16

2

4.85

Red

CL2P/CL3P

7110346SOLSR×××

16/4 SOL BC Plenum

16

4

5.53

Red

CL2P/CL3P

7110347SOLSR×××

14/2 SOL BC Plenum

14

2

5.68

Red

CL2P/CL3P

7110348SOLSR×××

14/4 SOL BC Plenum

14

4

7.26

Red

CL2P/CL3P

7110349SOLSR×××

12/2 SOL BC Plenum

12

2

6.62

Red

CL2P/CL3P

* Cable tested by UL Global

* If the cables are with a WHITE outer sheath the ZION CODE will change in: 7******STRSW***

* CUSTOMIZED ITEMS: Printing on Sheath; Lable; Carton

* Conductor will be within the tolerance range: ±0.005mm

* OD of Jacket will be within the tolerance range: ±0.3mm
