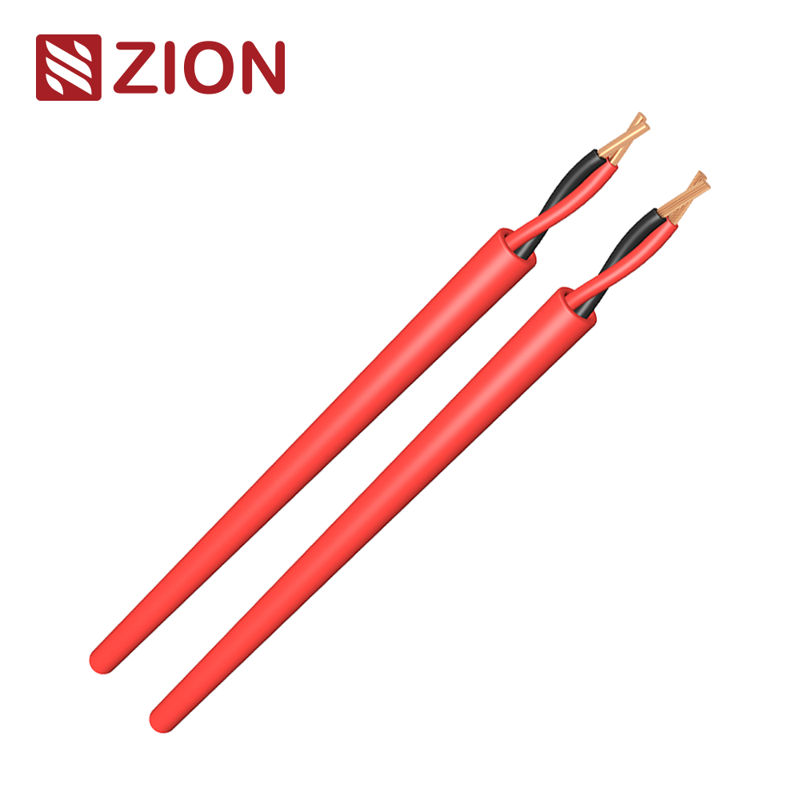

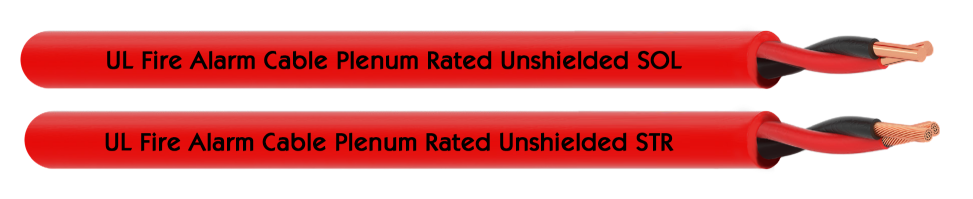

UL Fire Alarm Cable Plenum Rated Unshielded Fire Cables

UL Certificate Number: E541137

CONSTRUCTION

REFERENCE STANDARDS

Conductors:

NEC Article 725

Plain annealed copper wire,

NEC Article 760

SOL = Solid = Class 1

UL 13 CL2P/CL3P

STR = Stranded = Class 2 or Class 5

NFPA 262

Insulation:

ANSI/NFPA 70

LS-PVC

UL 1581

Screen 1st:

UL 910

Unshielded

Drain Wire:

Without

Ripcord

TEMPERATURE RANGE

With

During Operation
-20℃ up to +75℃
During Installation
0℃ up to +65℃

Outer Sheath:

LS-PVC

Sheath Color:

Red /White/ More...

ELECTRICAL DATA

IDENTIFICATION OF CORES

Operating Voltage:

Black / Red / Green / Yellow

300V max.

POPULAR PACKING

CHARACTERISTICS

Min. Bending Radius
7.5 x cable diameter

500 ft packages, reel or pull box

1000 ft packages, reel or pull box

CABLE PRINTING

HANGZHOU ZION Fire Cables SKU ×AWG×C 75C E******* (UL/ETL) SOL/STR Unshielded
CL2P/CL3P SUN RES(ROHS) +BATCH NO.+FT DEVICE/ZONE  MARKING

UL Fire Alarm Cable Plenum Unshielded        Solid BC

ZION  CODE

Type

AWG

#/C

NOM.DIA.
[mm]

Jacket
Color

UL/NEC

7110041SOLUR×××

18/2 SOL BC Plenum

18

2

3.45

Red

CL2P/CL3P

7110042SOLUR×××

18/4 SOL BC Plenum

18

4

4.05

Red

CL2P/CL3P

7110043SOLUR×××

18/6 SOL BC Plenum

18

6

4.90

Red

CL2P/CL3P

7110044SOLUR×××

16/2 SOL BC Plenum

16

2

3.90

Red

CL2P/CL3P

7110045SOLUR×××

16/4 SOL BC Plenum

16

4

4.60

Red

CL2P/CL3P

7110046SOLUR×××

14/2 SOL BC Plenum

14

2

4.60

Red

CL2P/CL3P

7110047SOLUR×××

14/4 SOL BC Plenum

14

4

6.25

Red

CL2P/CL3P

7110048SOLUR×××

12/2 SOL BC Plenum

12

2

6.25

Red

CL2P/CL3P

UL Fire Alarm Cable Plenum Unshielded       Stranded BC

ZION  CODE

Type

AWG

#/C

NOM.DIA.
[mm]

Jacket
Color

UL/NEC

7110241STRUR×××

18/2 STR BC Plenum

18

2

3.85

Red

CL2P/CL3P

7110242STRUR×××

18/4 STR BC Plenum

18

4

4.40

Red

CL2P/CL3P

7110243STRUR×××

18/6 STR BC Plenum

18

6

5.28

Red

CL2P/CL3P

7110244STRUR×××

16/2 STR BC Plenum

16

2

4.31

Red

CL2P/CL3P

7110245STRUR×××

16/4 STR BC Plenum

16

4

4.97

Red

CL2P/CL3P

7110246STRUR×××

14/2 STR BC Plenum

14

2

4.97

Red

CL2P/CL3P

7110247STRUR×××

14/4 STR BC Plenum

14

4

6.65

Red

CL2P/CL3P

7110248STRUR×××

12/2 STR BC Plenum

12

2

6.65

Red

CL2P/CL3P

* Cable tested by UL Global

* If the cables are with a WHITE outer sheath the ZION CODE will change in: 7******STRUW***

* CUSTOMIZED ITEMS: Printing on Sheath; Lable; Carton

* Conductor will be within the tolerance range: ±0.005mm

* OD of Jacket will be within the tolerance range: ±0.3mm
