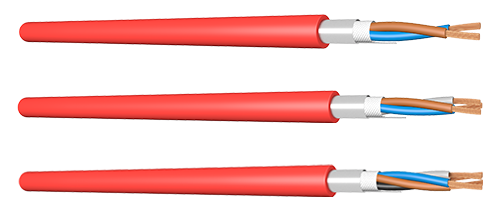

EN 50200:2015 Class PH 120 STR Flexible Cable

UL Certificate Number: UL-US-2319226-1

■ Construction:

Conductors:

Plain annealed copper wire

Class 5

STR Flexible

Insulation:

Special Mix Silicon Rubber

Screen 1st:

Fibre Glass Tape, >110% Coverage

Drain Wire:

Tinned Copper; OD: 0.80mm

Screen 2nd:

Aluminum Polyester Tape,>120% Coverage

Outer Sheath:

Thermoplastic Low Smoke,Halogen Free

Sheath Color:

Red |White |Orange

■ Electrical Data:

Insulation Resistance@ 20°C: >200 M Ohm*Km

Test Voltage Core-Core/ Core-Screen: 2000V/2000V

Mutual Capacitance: <150 nF/km

Operating Voltage: 300/500 V

■ Popular Packing:

Lengths of 100 meters, 300 meters, or 500 meters on wooden spools.

■ Reference Standards:

Flame Propagation: EN 50200:2015 Class PH120

Acidity: EN /IEC 60754-1:2014

Smoke Density: EN/IEC 61034-2:2005+A1:2013

■ CPR Classification:

Rated as EN 50575:2016-Cca s1A, d0, a1.

■ Temperature Range:

During Operation: -30°C up to +180°C.

During Installation: -5°C up to +50°C.

■ Identification of cores:

■ Cable Printing:

HANGZHOU ZION Fire Cables BS 7629-1:2015 (Standard 60)  STR Flexible
300/500V  ×C×SQMM+BATCH NO.+METER MARKING

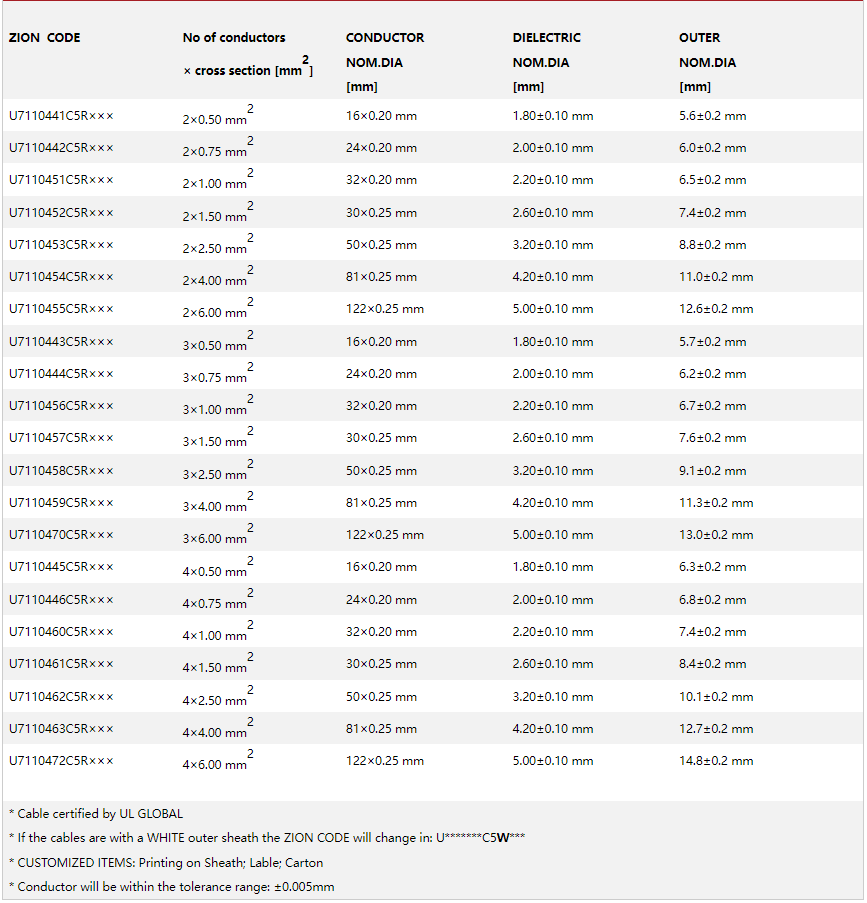

■ UL EN 50200:2015 Class PH 120 CABLE STR Flexible:
