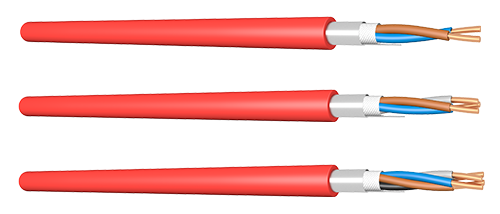

UL EN 50200:2015 Class PH120 Solid Fire Cable

UL EN 50200:2015 Class PH120 Solid Fire Cable

Categories:
Fire Cable
Certificates:
EN 50200:2015 Class PH120
Length:
100m,500m,500ft,1000ft
Packing:
roll, wooden spool, carton, pallet
MOQ:
10KM
Delivery time:
Normally 15 working days
Port of Loading:
NINGBO, SHANGHAI
Term of payment:
T/T, L/C at sight, D/P at sight

Availability:



Inquire

Specification

EN 50200:2015 Class PH 120 Solid Cable

UL Certificate Number: UL-US-2319226-1

UL EN 502002015 Class PH120 Solid Fire Cable

■ Construction:

Conductors: Plain annealed copper wire, Class 1, Solid

Insulation: Special Mix Silicon Rubber

Screen 1st: Fibre Glass Tape, >110% Coverage

Drain Wire: Tinned Copper; OD: 0.80mm

Screen 2nd: Aluminum Polyester Tape, >120% Coverage

Outer Sheath: Thermoplastic Low Smoke,Halogen Free

Sheath Color: Red | White | Orange

■ Reference Standards:

Flame Propagation

EN 50200: 2015 Class PH120

Acidity

EN /IEC 60754-1: 2014

Smoke Density

EN /IEC 61034-2: 2005+A1: 2013

CPR Classification

EN 50575: 2016-Cca s1A, d0, a1

■ Electrical Data:

Insulation Resistance at 20°C: Greater than 200 MΩ·km.

Test Voltage (Core-Core/Core-Screen): 2000 V / 2000 V.

Mutual Capacitance: Less than 150 nF/km.

Operating Voltage: 300/500 V.

■ Popular Packing:

Lengths of 100 meters, 300 meters, or 500 meters on wooden spools.

■ CPR Classification:

Rated as EN 50575:2016-Cca s1A, d0, a1.

■ Temperature Range:

During Operation: -30°C up to +180°C.

During Installation: -5°C up to +50°C.

■ Identification of cores:

Fire Cable color

■ Cable Printing:

HANGZHOU ZION Fire Cables UL EN50200:2015 Class PH120 Solid

300/500V ×C×SQMM+BATCH NO.+METER MARKING

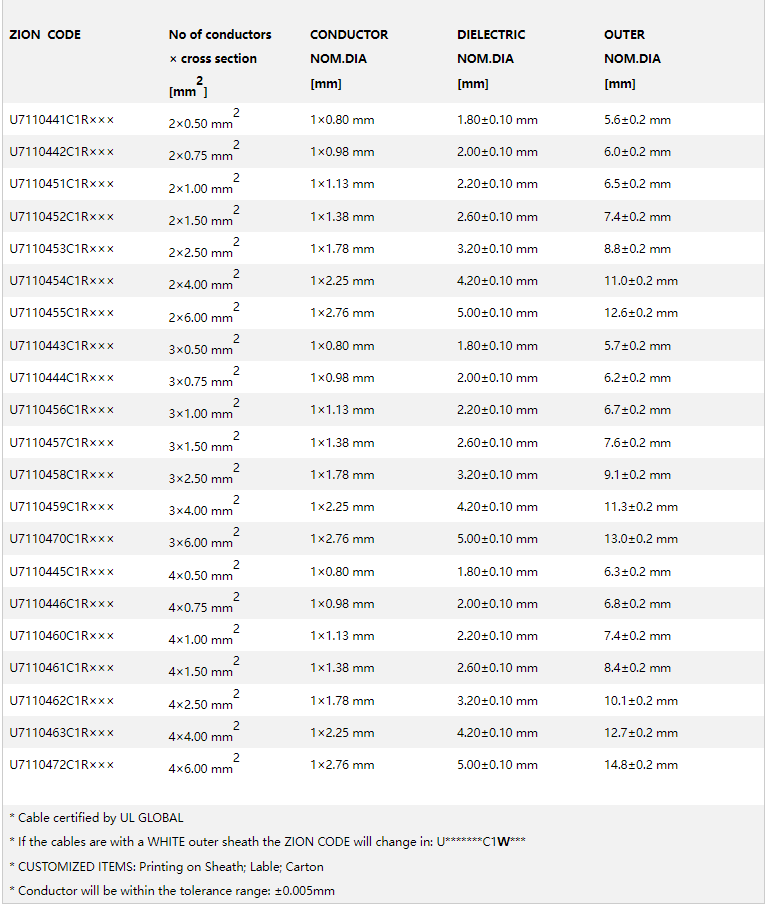

■ UL EN 50200:2015 Class PH 120 CABLE SOLID:

UL EN 50200：2015 Class PH 120 CABLE SOLID
