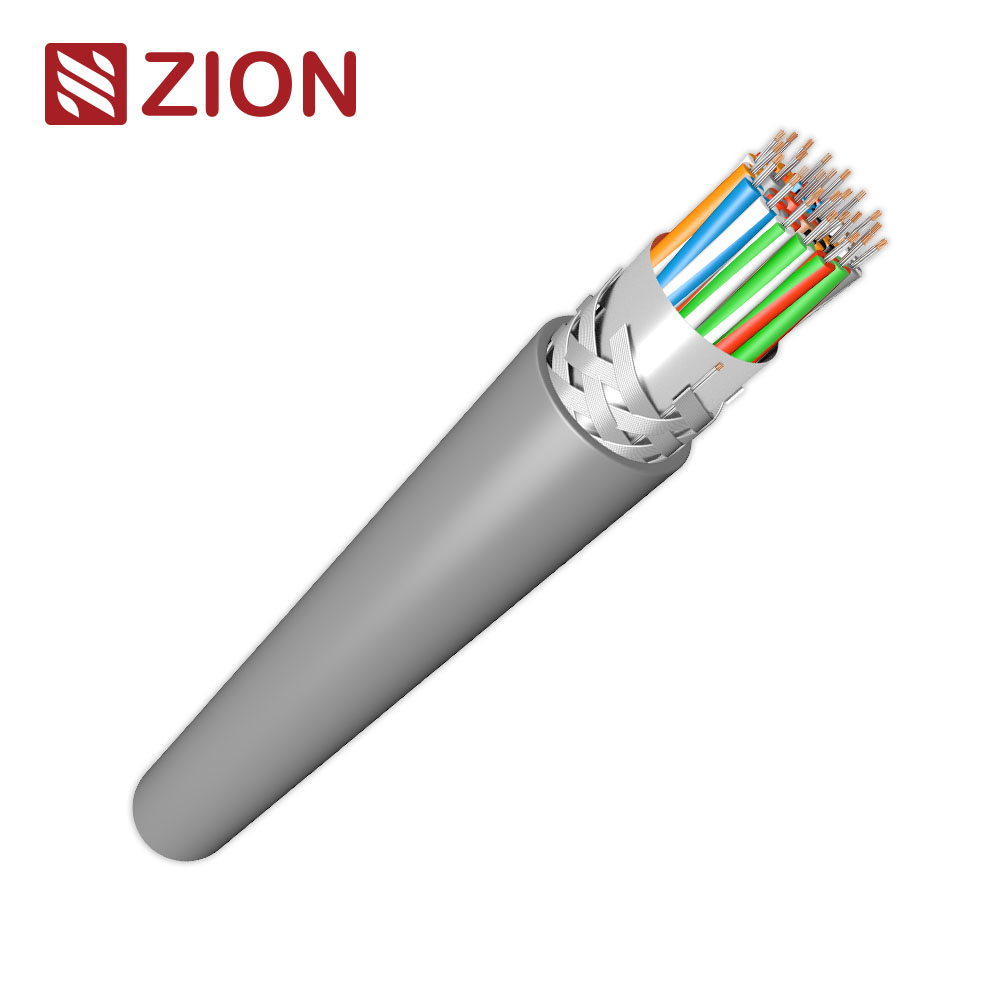

RS485/232 Cable, 28AWG 18PR, Foil+Braid, PVC, 120Ω
SKU: 73118
RS485/RS422/RS232 serial data communication
Industrial control systems (PLC, HMI, SCADA)
Building automation systems
Security and access control wiring
Point-to-point or multi-drop data networks
Component | Specification | |
Conductor | 18pairs, AWG 28 (7/36# = 7/0.127 mm) stranded tinned copper (TC) | |
Insulation Material | FPE (Foam Polyethylene） | |
Insulation Thickness | 0.0145 in (0.368 mm) | |
Color Code (per pair) | 1. White/Blue & Blue/White | 10. Red/Gray & Gray/Red |
Or Type 2 | Each Pair: Pure Color & White: | |
Shield 1 (Foil) | Overall (Aluminum + Polyester), ＞110% coverage | |
Drain Wire | AWG 28 (7/36# = 7/0.127 mm) stranded tinned copper (TC) | |
Shield 2 (Braid) | Tinned Copper Braid, 65% coverage | |
Jacket Material | PVC (Polyvinyl Chloride), Color customization. | |
Jacket Thickness | 0.045 in (1.1 mm) | |
Overall Diameter | 0.467 in (11.9±0.5mm) | |
Property | Value |
Conductor DCR | 65 Ohm/1000 ft (210 Ohm/km) |
Capacitance (Cond-to-Cond) | 11 pF/ft (36 pF/m) |
Capacitance (Cond-to-Shield) | 20 pF/ft (66 pF/m) |
Characteristic Impedance | 120 Ohm |
Velocity of Propagation | 78% |
Max. Current | 0.6 Amps @ 25°C |
Voltage Rating | 30 V (UL AWM 2919) |
Property | Value |
Operating Temperature Range | -30°C to +80°C |
Standard / Regulation | Compliance |
Flammability / Fire Reaction | UL 1685, IEC 60332-1-2 |
NEC / UL Compliance | NEC Article 725, CL2 |
AWM Compliance | UL AWM Style 2919 |
CPR Compliance | EU CPR Euroclass: Eca |
EU Directives | CE Mark, RoHS |
Environmental Suitability | Indoor (Not Riser or Plenum) |
