Automotive Cable
hellosignal
Japanese Standard
Normally 25 working days
NINGBO, SHANGHAI

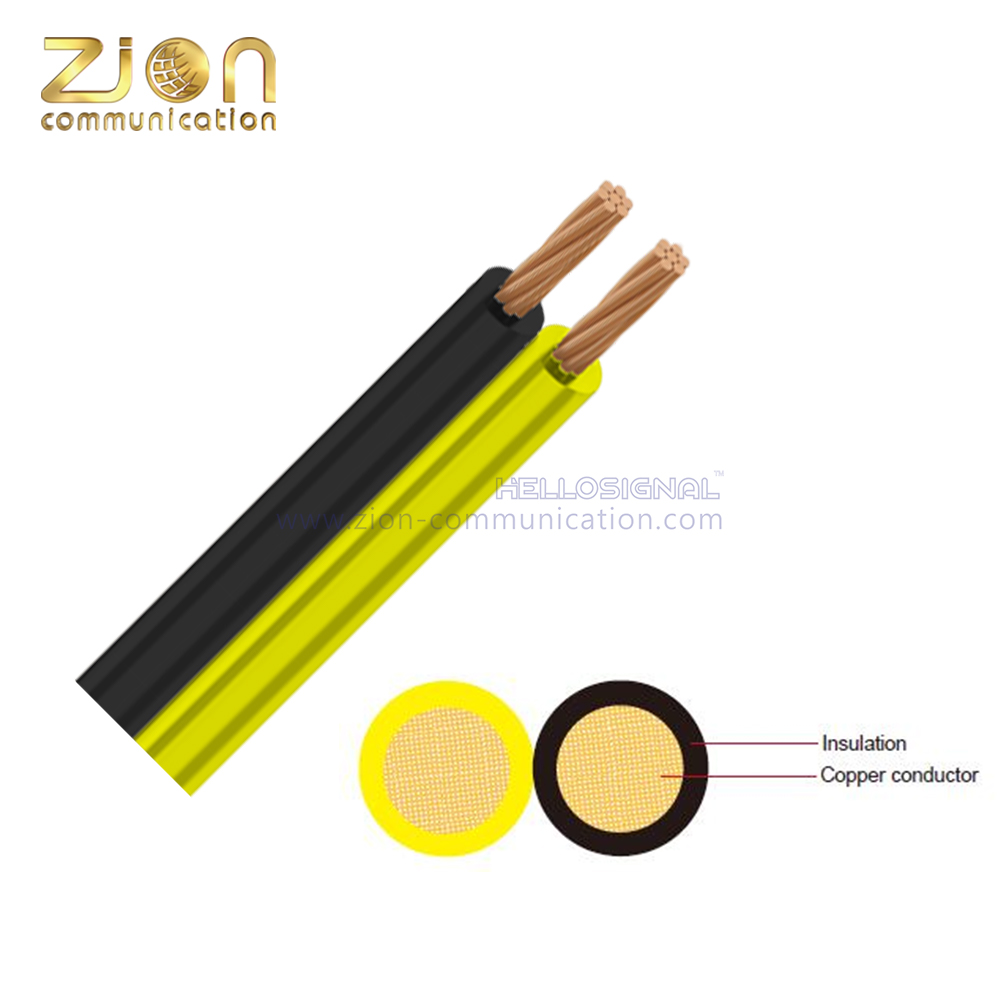

AVSSXFT Automotive Cable | ||||||||
Product Description: | ||||||||
Conductor | Annealed stranded copper | |||||||
Insulation | Cross-linked Polyvinyl Chloride | |||||||
Standard Compliance | JASO D611; ES SPEC | |||||||
Technical Parameters | Operating temperature:–40°C to +100 °C | |||||||
Application: | ||||||||
This Cross-linked Polyvinyl Chloride insulated cable is used in low voltage signal circuits in automobiles. Superior heat resistant with irradiated PVC. | ||||||||
 | ||||||||
Zion's Hot Types of AVSSXFT Automotive cable | ||||||||
Conductor | Insulation | Cable | ||||||
Nominal | No. and | Diameter max. | Electrical | Thickness Wallnom. | Overall Diameter Min. | Overall | Weight | |
mm2 | No./mm | mm | mΩ/m | mm | mm | mm | Kg/km | |
0.30 | 19/0.16 | 0.80 | 49.40 | 0.30 | 2.80 | 3.00 | 10.30 | |
0.50 | 19/0.19 | 1.00 | 35.00 | 0.30 | 3.20 | 3.40 | 14.00 | |
0.85 | 37/0.17 | 1.20 | 22.00 | 0.30 | 3.60 | 3.80 | 20.40 | |
1.25 | 37/0.21 | 1.50 | 14.60 | 0.30 | 4.20 | 4.40 | 29.50 | |
*Note: Other configurations, sizes, colors and length not specified herein are available upon request. | ||||||||
