AHFX-BS Automotive Cable

AHFX-BS Automotive Cable

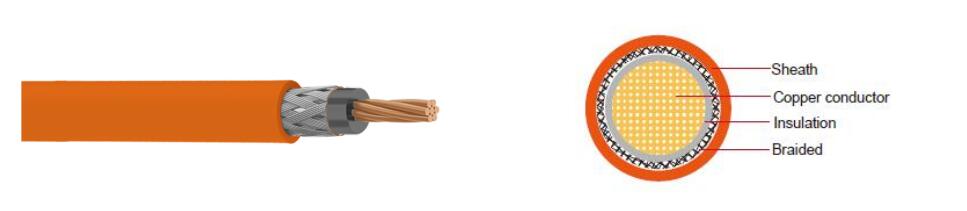

Product Description:

Conductor

Tin plated copper

Insulation

Fluororubber

Braided

Shield tin plated copper

Sheath

Halogen free Polyolefine

Standard Compliance

KIS-ES-1121

Technical Parameters

Operating temperature: –40 °C to +200°C
Rated Voltage: 600V

Application:

This Fluororubber insulated single-core cable is used for HEV automobiles.

Zion's Hot Types of  AHFX-BS Automotive cable

Conductor

Insulation

Cable

Nominal
cross-
section

No. and Dia. of Wires

Diameter
Max.

Electrical resistance at 20°C  max.

Thickness
wall Nom.

Diameter of Core

Diameter Width

Diameter Height

Weight approx.

mm²

No./mm

mm

 mΩ/m

mm

mm

mm

mm

Kg/km

1x3

65/0.26

2.40

5.65

4.05

3.55

90.00

5.60

5.30

1x5

65/0.32

3.00

3.72

4.90

4.30

90.00

7.30

6.50

1x8

154/0.26

4.00

2.43

5.90

5.30

90.00

8.30

7.50

1x15

171/0.32

5.30

1.44

7.80

7.20

90.00

10.75

9.85

1x20

247/0.32

6.50

1.00

9.00

8.40

90.00

11.95

11.05

1x25

323/0.32

7.40

0.76

10.60

9.80

90.00

13.50

12.50

1x30

361/0.32

7.80

0.68

11.00

10.20

90.00

13.90

12.90

1x40

494/0.32

9.10

0.52

12.30

11.50

90.00

16.25

15.15

1x50

608/0.32

10.10

0.42

13.75

12.85

90.00

17.70

16.50

*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
