AVUHSF Automotive Cable

AVUHSF Automotive Cable

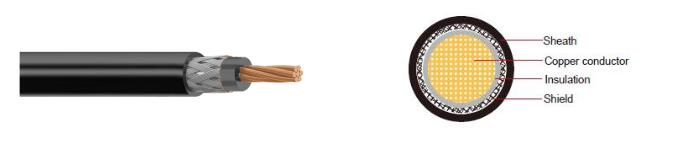

Product Description:

Conductor

Annealed stranded copper

Insulation

Vinyl

Shield

Tin coated annealed stranded copper

Sheath

Vinyl

Standard Compliance

HKMC ES 91110-05

Technical Parameters

Operating temperature:–45°C to +135 °C

Application:

This Vinyl insulated single-core cable is used in EPS (Electric power steering) for automobiles.

Zion's Hot Types of  AVUHSF Automotive cable

Conductor

Insulation

Cable

Nominal
cross-
section

No. and
Dia. of Wires

Diameter max.

Electrical
resistance at 20°C max.

Thickness Wallnom.

Overall Diameter Min.

Overall
Diameter max.

Weight
approx.

mm²

No./mm

mm

 mΩ/m

mm

mm

mm

Kg/km

1x5.0

207/0.18

3.00

3.94

0.80

6.70

7.10

72.00

1x8.0

315/0.18

3.70

2.32

0.80

7.50

7.90

128.00

1x10.0

399/0.18

4.20

1.76

0.90

8.20

8.60

153.00

*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
