Automotive Cable
hellosignal
Japanese Standard
Normally 25 working days
NINGBO, SHANGHAI

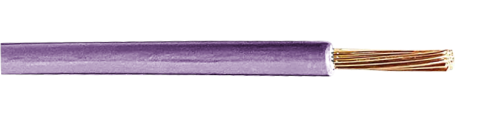

AVS Automotive Cable | ||||||||
Product Description: | ||||||||

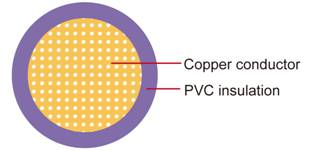

Conductor | Cu-ETP1 bare according to D 609-90 | |||||||
Insulation | PVC | |||||||
Standard Compliance | JASO D 611-94 | |||||||
Technical Parameters | Operating temperature:–40 °C to +85 °C Intermittent temperature:120°C (120hm) | |||||||
Application: | ||||||||
Automotive PVC insulated single-core cable is used for low voltage circuits in automobiles, vehicles and motorcycles. | ||||||||
  | ||||||||
Zion's Hot Types of AVS Automotive cable | ||||||||
Conductor | Insulation | Cable | ||||||
Nominal | No. and | Diameter max. | Electrical | Thickness Wallnom. | Overall Diameter Min. | Overall | Weight | |
mm2 | No./mm | mm | mΩ/m | mm | mm | mm | Kg/km | |
1 x0.3 | 7/0.26 | 0.80 | 50.20 | 0.50 | 1.80 | 1.90 | 6.00 | |
1 x0.5 | 7/0.32 | 1.00 | 32.70 | 0.60 | 2.10 | 2.40 | 7.00 | |
1 x0.85 | 11/0.32 | 1.20 | 20.80 | 0.60 | 2.30 | 2.60 | 10.00 | |
1 x1.25 | 16/0.32 | 1.50 | 14.30 | 0.60 | 2.60 | 2.90 | 15.00 | |
1 x2 | 26/0.32 | 1.90 | 8.81 | 0.60 | 3.00 | 3.40 | 22.00 | |
1 x3 | 41/0.32 | 2.40 | 5.59 | 0.70 | 3.50 | 3.90 | 42.00 | |
1 x5 | 65/0.32 | 3.00 | 3.52 | 0.80 | 4.50 | 4.90 | 61.00 | |
1 x0.3f | 15/0.18 | 0.80 | 48.90 | 0.50 | 1.80 | 1.90 | 6.00 | |
1 x0.5f | 20/0.18 | 1.00 | 36.70 | 0.50 | 2.00 | 2.10 | 8.00 | |
1 x0.75f | 30/0.18 | 1.20 | 24.40 | 0.50 | 2.20 | 2.30 | 11.00 | |
1 x1.25f | 50/0.18 | 1.50 | 14.70 | 0.50 | 2.50 | 2.60 | 17.00 | |
1 x2f | 37/0.26 | 1.80 | 9.50 | 0.50 | 2.90 | 3.10 | 24.00 | |
The "f" in the nominal size column indicates a flexible conductor with a finer wire diameter. | ||||||||
AVS Automotive Cable | ||||||||
Product Description: | ||||||||
Conductor | Cu-ETP1 bare according to D 609-90 | |||||||
Insulation | PVC | |||||||
Standard Compliance | JASO D 611-94 | |||||||
Technical Parameters | Operating temperature:–40 °C to +85 °C Intermittent temperature:120°C (120hm) | |||||||
Application: | ||||||||
Automotive PVC insulated single-core cable is used for low voltage circuits in automobiles, vehicles and motorcycles. | ||||||||
| ||||||||
Zion's Hot Types of AVS Automotive cable | ||||||||
Conductor | Insulation | Cable | ||||||
Nominal | No. and | Diameter max. | Electrical | Thickness Wallnom. | Overall Diameter Min. | Overall | Weight | |
mm2 | No./mm | mm | mΩ/m | mm | mm | mm | Kg/km | |
1 x0.3 | 7/0.26 | 0.80 | 50.20 | 0.50 | 1.80 | 1.90 | 6.00 | |
1 x0.5 | 7/0.32 | 1.00 | 32.70 | 0.60 | 2.10 | 2.40 | 7.00 | |
1 x0.85 | 11/0.32 | 1.20 | 20.80 | 0.60 | 2.30 | 2.60 | 10.00 | |
1 x1.25 | 16/0.32 | 1.50 | 14.30 | 0.60 | 2.60 | 2.90 | 15.00 | |
1 x2 | 26/0.32 | 1.90 | 8.81 | 0.60 | 3.00 | 3.40 | 22.00 | |
1 x3 | 41/0.32 | 2.40 | 5.59 | 0.70 | 3.50 | 3.90 | 42.00 | |
1 x5 | 65/0.32 | 3.00 | 3.52 | 0.80 | 4.50 | 4.90 | 61.00 | |
1 x0.3f | 15/0.18 | 0.80 | 48.90 | 0.50 | 1.80 | 1.90 | 6.00 | |
1 x0.5f | 20/0.18 | 1.00 | 36.70 | 0.50 | 2.00 | 2.10 | 8.00 | |
1 x0.75f | 30/0.18 | 1.20 | 24.40 | 0.50 | 2.20 | 2.30 | 11.00 | |
1 x1.25f | 50/0.18 | 1.50 | 14.70 | 0.50 | 2.50 | 2.60 | 17.00 | |
1 x2f | 37/0.26 | 1.80 | 9.50 | 0.50 | 2.90 | 3.10 | 24.00 | |
The "f" in the nominal size column indicates a flexible conductor with a finer wire diameter. | ||||||||
