AVSSH Automotive Cable

AVSSH Automotive Cable

Product Description:

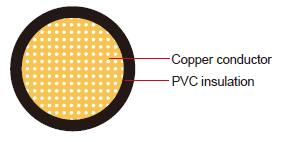

Conductor

Stranded ,bare copper

Insulation

PVC

Standard Compliance

JASO D 611-09 JASO D608

Technical Parameters

Operating temperature: –40 °C to +100 °C
Rated voltage: 25V AC and 60 V DC

Application:

This PVC insulated single-core cable is used for automobiles, vehicles and Motorcycles.

Zion's Hot Types of  AVSSH Automotive cable

Conductor

Insulation

Cable

Nominal
cross-
section

No. and
Dia. of Wires

Diameter max.

Electrical
resistance at 20°C max.

Thickness Wallnom.

Overall Diameter Min.

Overall
Diameter max.

Weight
approx.

mm²

No./mm

mm

 mΩ/m

mm

mm

mm

Kg/km

1x0.3f

19/0.16

0.80

48.60

0.30

1.40

1.50

5.00

1x0.5f

19/0.16

1.00

34.60

0.30

1.60

1.70

7.00

1x0.75f

19/0.23

1.20

23.60

0.30

1.80

1.90

10.00

1x1.25f

37/0.21

1.50

14.60

0.30

2.10

2.20

14.00

The “f“ in the nominal size column indicates a flexible conductor with a fine wire diameter.
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
