APEX-BS Automotive Cable

APEX-BS Automotive Cable

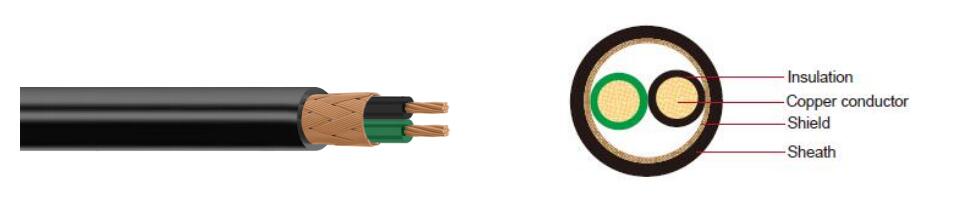

Product Description:

Conductor

Annealed stranded copper

Insulation

XLPE

Shield

Tin coated annealed copper

Sheath

PVC

Standard Compliance

JASO D611; ES SPEC

Technical Parameters

Operating temperature:–40°C to +120 °C

Application:

This XLPE insulated cable is used in low voltage signal circuits in automobiles. Superior heat resistance with irradiated PE. Suitable for the consideration of the shielding characteristic.

Zion's Hot Types of  APEX-BS Automotive cable

Conductor

Insulation

Cable

Nominal
cross-
section

No. and
Dia. of Wires

Diameter max.

Electrical
resistance at 20°C max.

Thickness Wallnom.

Overall Diameter Min.

Overall
Diameter max.

Weight
approx.

mm²

No./mm

mm

 mΩ/m

mm

mm

mm

Kg/km

0.50

20/0.18

0.93

0.04

0.60

3.70

3.90

21.00

0.85

34/0.18

1.21

0.02

0.60

4.20

4.40

27.00

1.25

50/0.18

1.50

0.02

0.60

4.50

4.70

31.00

*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
