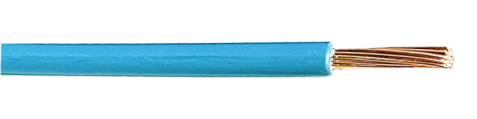

CAVUS Automotive Cable

CAVUS Automotive Cable

Product Description:

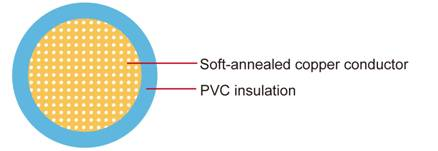

Conductor

Cu-ETP1 according to JIS C 3102

Insulation

PVC

Standard Compliance

JASO D 611-94

Technical Parameters

Operating temperature:–40°C to +80 °C

Application:

Automotive PVC insulated single-core cable is used for automotive wiring.

Zion's Hot Types of  CAVUS Automotive cable

Conductor

Insulation

Cable

Nominal
cross-
section

No. and
Dia. of Wires

Diameter max.

Electrical
resistance at 20°C max.

Thickness Wallnom.

Overall Diameter Min.

Overall
Diameter max.

Weight
approx.

mm²

No./mm

mm

 mΩ/m

mm

mm

mm

Kg/km

1 x0.30

7/0.26

0.70

50.20

0.20

1.10

1.20

4.00

1 x0.50

7/0.32

0.90

32.70

0.20

1.30

1.40

6.00

1 x0.85

11/0.32

1.10

20.80

0.20

1.50

1.60

9.00

1 x1.25

16/0.32

1.40

14.30

0.20

1.80

1.90

13.00

Note: Other configurations, sizes, colors and length not specified herein are available upon request
