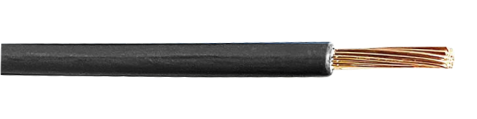

AHFX Automotive Cable

AHFX Automotive Cable

Product Description:

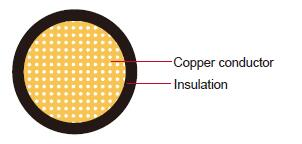

Conductor

Tin coated annealed stranded copper

Insulation

Fluoroelastomer

Standard Compliance

KIS-ES-8093

Technical Parameters

Operating temperature:–40°C to +200 °C

Application:

This Fluoroelastomer insulated single-core cable is used in Fuel Pump and Transmission for automobiles,
Superior oil resistance, Suitable for the consideration of the flexibility and thermal resistance.

Zion's Hot Types of  AHFX Automotive cable

Conductor

Insulation

Cable

Nominal
cross-
section

No. and
Dia. of Wires

Diameter max.

Electrical
resistance at 20°C max.

Thickness Wallnom.

Overall Diameter Min.

Overall
Diameter max.

Weight
approx.

mm²

No./mm

mm

 mΩ/m

mm

mm

mm

Kg/km

1x0.50

20/0.18

0.90

38.20

0.40

1.55

1.85

7.80

1x0.75

19/0.23

1.20

24.70

0.40

1.75

2.05

10.80

1x1.25

50/0.18

1.40

15.90

0.40

2.15

2.45

16.70

1x2.00

37/0.26

1.80

10.50

0.40

2.45

2.75

23.50

*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
