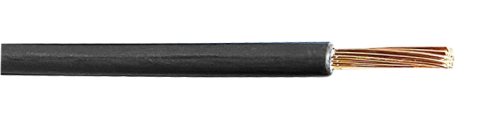

EB/HDEB Automotive Cable | ||||||||
Product Description: | ||||||||

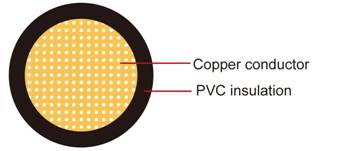

Conductor | Cu-ETP1 according to JIS C 3102 | |||||||
Insulation | PVC | |||||||
Standard Compliance | JIS C 3406 | |||||||
Features | EB wires are for grounding (-side): complex stranded conductors (flexible type) and thin type. | |||||||
Technical Parameters | Operating temperature:–40°C to +100 °C | |||||||
Application: | ||||||||
Automotive PVC insulated single-core cable is used in low voltage circuits of battery for automobiles | ||||||||
  | ||||||||
Zion's Hot Types of EB/HDEB Automotive cable | ||||||||
HD | ||||||||
Conductor | Insulation | Cable | ||||||
Nominal | No. and | Diameter max. | Electrical | Thickness Wallnom. | Overall Diameter Min. | Overall | Weight | |
mm2 | No./mm | mm | mΩ/m | mm | mm | mm | Kg/km | |
1 x5 | 63/0.32 | 3.10 | 3.58 | 0.60 | 4.30 | 4.70 | 57.00 | |
1 x9 | 112/0.32 | 4.20 | 2.00 | 0.60 | 5.40 | 5.80 | 95.00 | |
1 x15 | 171/0.32 | 5.30 | 1.32 | 0.60 | 6.50 | 6.90 | 147.00 | |
1 x20 | 247/0.32 | 6.50 | 0.92 | 0.60 | 7.70 | 8.00 | 207.00 | |
1 x30 | 361/0.32 | 7.80 | 0.63 | 0.60 | 9.00 | 9.40 | 303.00 | |
1 x40 | 494/0.32 | 9.10 | 0.46 | 0.60 | 10.30 | 10.80 | 374.00 | |
1 x50 | 608/0.32 | 10.10 | 0.37 | 0.60 | 11.30 | 11.90 | 473.00 | |
1 x60 | 741/0.32 | 11.10 | 0.31 | 0.60 | 12.30 | 12.90 | 570.00 | |
HDEB | ||||||||
1 x9 | 112/0.32 | 4.20 | 2.00 | 1.00 | 6.20 | 6.50 | 109.00 | |
1 x15 | 171/0.32 | 5.30 | 1.32 | 1.10 | 7.50 | 8.00 | 161.00 | |
1 x20 | 247/0.32 | 6.50 | 0.92 | 1.10 | 8.70 | 9.30 | 225.00 | |
1 x30 | 361/0.32 | 7.80 | 0.63 | 1.40 | 10.60 | 11.30 | 331.00 | |
1 x40 | 494/0.32 | 9.10 | 0.46 | 1.40 | 11.90 | 12.60 | 442.00 | |
1 x60 | 741/0.32 | 11.10 | 0.31 | 1.60 | 14.30 | 15.10 | 655.00 | |
Note: Other configurations, sizes, colors and length not specified herein are available upon request. | ||||||||
