AV-V Automotive Cable

  • Automotive Cable

  • hellosignal

  • Japanese Standard

  • Normally 25 working days

  • NINGBO, SHANGHAI

Availability:

Product Description


AV-V Automotive Cable

Product Description:

Conductor

Annealed stranded copper

Insulation

Lead free PVC

Standard Compliance

HMC ES 91110-05

Technical Parameters

Operating temperature: –40 °C to +80 °C
Rated temperature: 80 °C
Rated voltage up to 60V

Application:

This PVC insulated single-core cable is used in low voltage circuits in automobiles(Battery Cables).

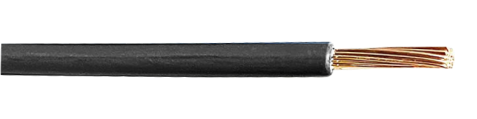

AV-V2AV-V1

Zion's Hot Types of  AV-V Automotive cable


Conductor

Insulation

Cable

Nominal
cross-
section

No. and
Dia. of Wires

Diameter max.

Electrical
resistance at 20°C max.

Thickness Wallnom.

Overall Diameter Min.

Overall
Diameter max.

Weight
approx.

mm2

No./mm

mm

 mΩ/m

mm

mm

mm

Kg/km

1x5

63/0.32

3.10

3.58

0.80

4.70

5.00

6.50

1x8

105/0.32

4.10

2.14

1.00

6.10

6.40

6.00

1x10

114/0.32

4.20

1.96

1.00

6.20

6.50

8.50

1x15

171/0.32

5.30

1.32

1.00

7.30

7.80

8.00

1x20

247/0.32

6.30

0.92

1.00

8.30

8.80

11.00

1x30

361/0.32

7.80

0.63

1.00

9.80

10.30

12.00

1x50

608/0.32

10.10

0.37

1.00

12.10

12.80

16.50

1x60

741/0.32

11.10

0.31

1.40

13.90

14.60

16.00

1x85

1064/0.32

13.10

0.21

1.40

15.90

16.60

24.50

1x100

369/0.32

15.10

0.17

1.40

17.90

18.80

23.50

*Note: Other configurations, sizes, colors and length not specified herein areavailable upon request.
