RS485/232 Cable
hellosignal
73005
Power and Control Cables

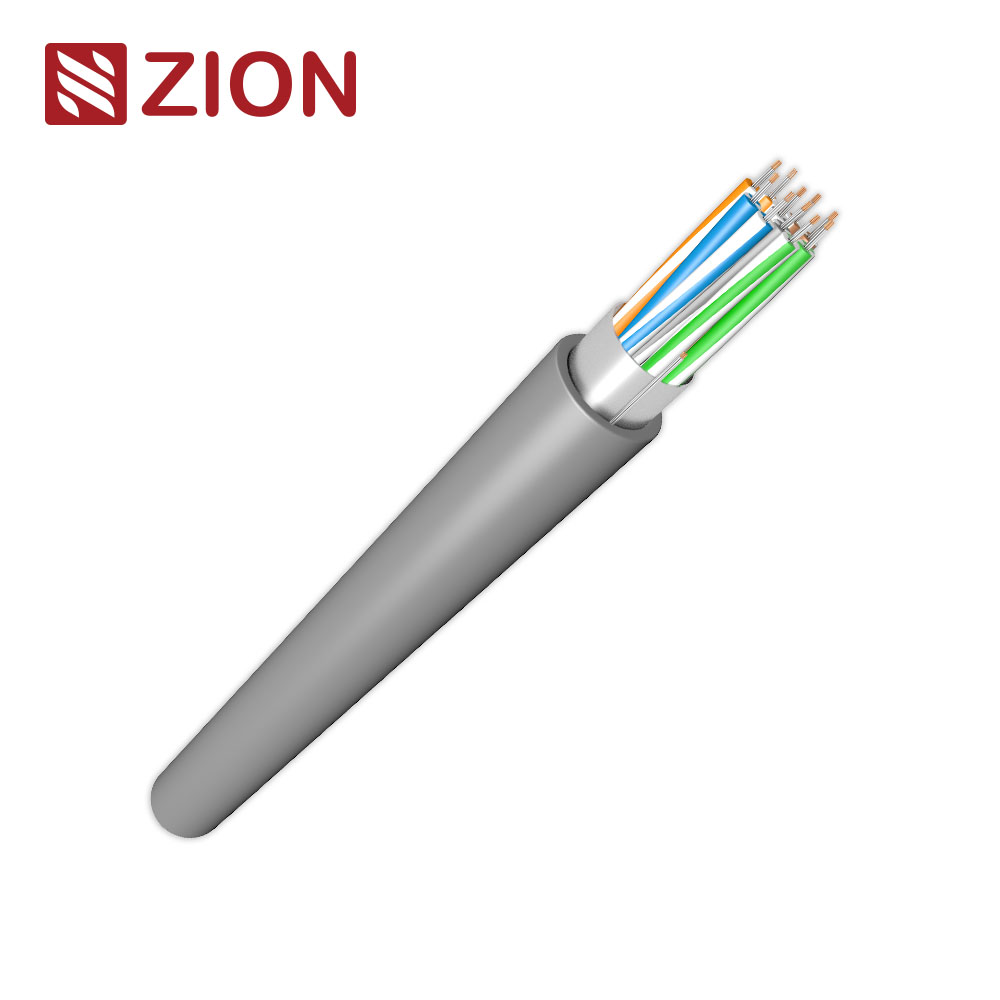

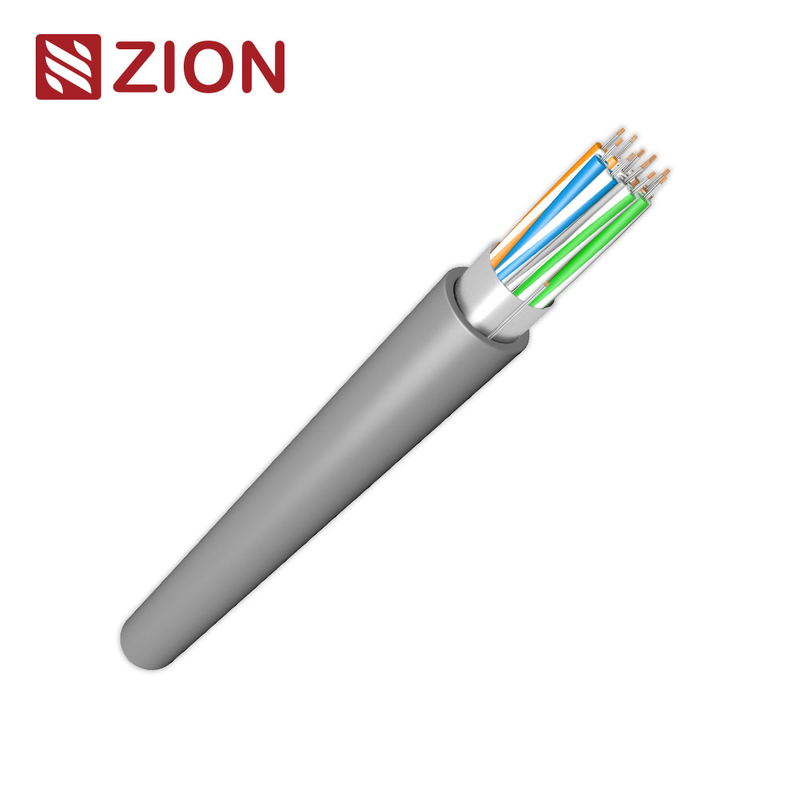

RS485/232 Cable, 28AWG 5PR, Foil, PVC,120Ω
SKU: 73005
RS485/RS422/RS232 serial data communication
Industrial control systems (PLC, HMI, SCADA)
Building automation systems
Security and access control wiring
Point-to-point or multi-drop data networks

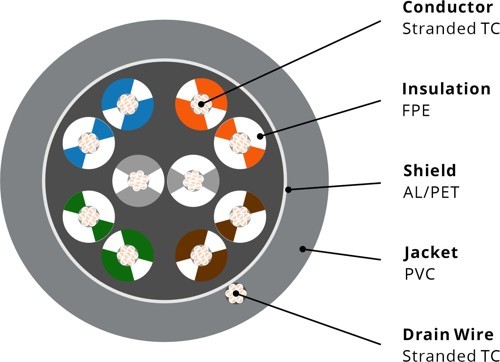

Component | Specification |
Conductor | 5pairs, AWG 28 (7/36# =7/0.127mm) stranded tinned copper (TC) |
Insulation Material | FPE (Foam Polyethylene） |
Insulation Thickness | 0.0145 in (0.368 mm) |
Insulation Diameter | 0.044 in (1.1 mm) |
Color Code (per pair) | 1. White/Blue & Blue/White |
Or Type 2 | Each Pair: Pure Color & White: |
Shield Type | Overall (Aluminum + Polyester), ＞110% coverage |
Drain Wire | AWG 28 (7/36# =7/0.127mm) stranded tinned copper (TC) |
Jacket Material | PVC (Polyvinyl Chloride), Color customization. |
Jacket Thickness | 0.035 in (0.89 mm) |
Overall Diameter | 0.280 in (7.11±0.3mm ) |
Property | Value |
Conductor DCR | 73.5 Ohm/1000 ft |
Capacitance (Cond-to-Cond) | 11 pF/ft (36 pF/m) |
Capacitance (Cond-to-Shield) | 20 pF/ft (66 pF/m) |
Characteristic Impedance | 120 Ohm |
Velocity of Propagation | 78% |
Max. Current (per conductor) | 0.9 Amps @ 30°C |
Voltage Rating (UL/CL2) | 150V (CL2), 30V (AWM 2919) |
Property | Value |
Operating Temperature | -30°C to +80°C |
Minimum Bend Radius | 2.8 in (71 mm) |
Max. Pull Tension | 23.1 lbs (10.5 kg) |
Standard / Regulation | Compliance |
UL Flame Test | UL1685 |
AWM Style | AWM 2919 |
CE Mark | Yes |
RoHS | Compliant |
Environmental Suitability | Indoor use |
