RS485/232 Cable
hellosignal
73006
Power and Control Cables

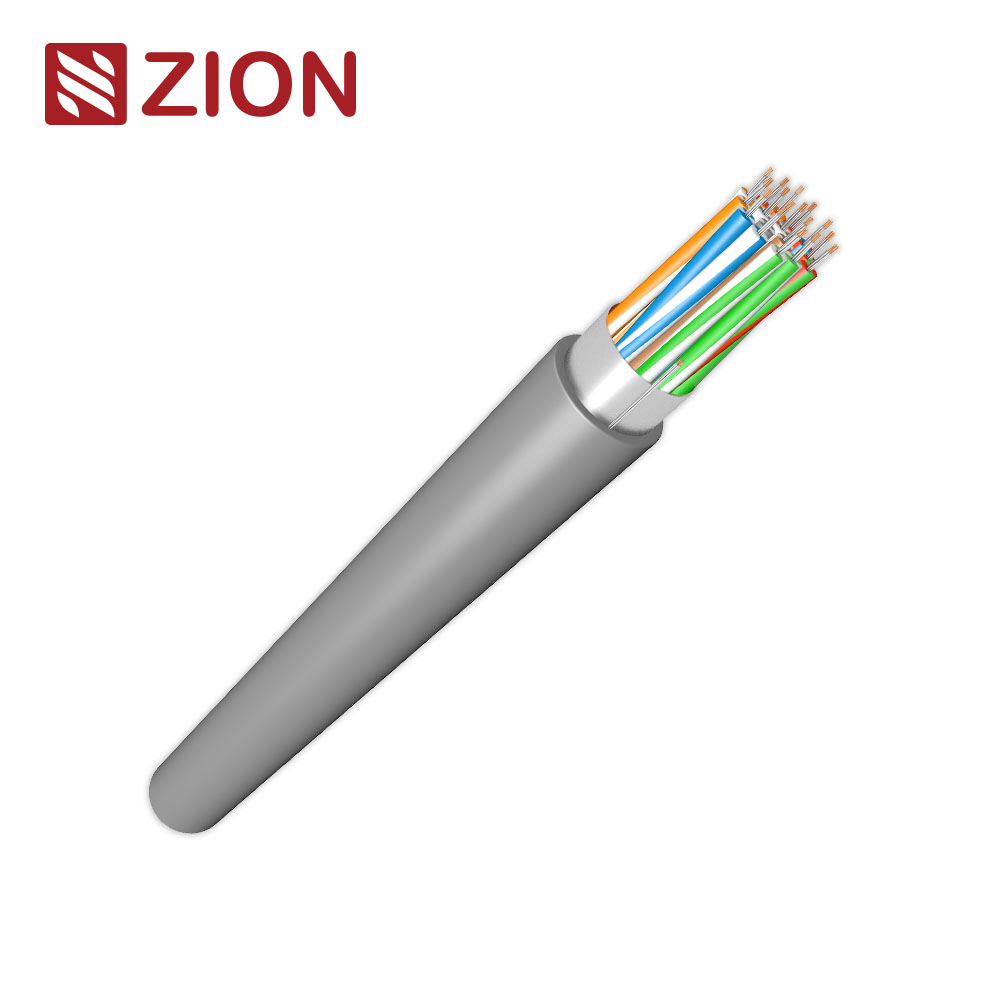

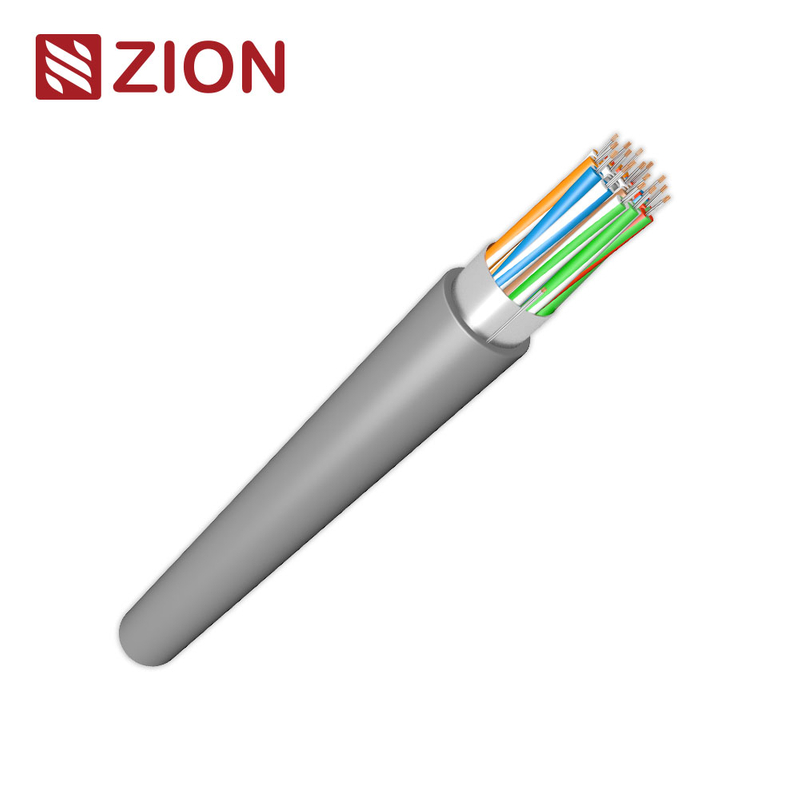

RS485/232 Cable, 28AWG 8PR, Foil, PVC, 120Ω
SKU: 73006
RS485/RS422/RS232 serial data communication
Industrial control systems (PLC, HMI, SCADA)
Building automation systems
Security and access control wiring
Point-to-point or multi-drop data networks

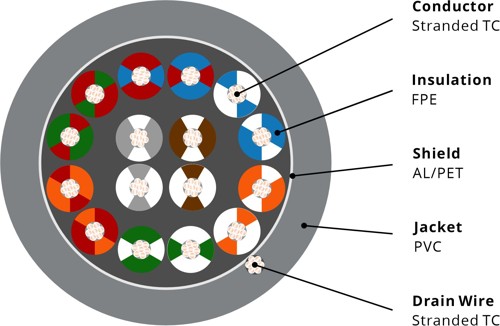

Component | Specification |
Conductor | 8pairs, AWG 28 (7/36# =7/0.127mm) stranded tinned copper (TC) |
Insulation Material | FPE (Foam Polyethylene） |
Insulation Thickness | 0.015 in |
Color Code (per pair) | 1. White/Blue & Blue/White |
Or Type 2 | Each Pair: Pure Color & White: |
Shield Type | Overall (Bi-laminate Aluminum + Polyester), 100% coverage |
Drain Wire | AWG 28 (7/36# =7/0.127mm) stranded tinned copper (TC) |
Jacket Material | PVC (Polyvinyl Chloride) |
Jacket Thickness | 0.04 in (1.016 mm) |
Overall Diameter | 0.31 in (7.87±0.3 mm) |
Property | Value |
Conductor DCR | 65 Ohm/1000 ft |
Shield DCR | 17.7 Ohm/1000 ft |
Capacitance (Cond-to-Cond) | 11 pF/ft (36 pF/m) |
Capacitance (Cond-to-Shield) | 20 pF/ft (66 pF/m) |
Characteristic Impedance | 120 Ohm |
Delay Skew | Max. 78 ns/100 m |
Velocity of Propagation (VP) | 78% |
Max. Recommended Current | 0.7 Amps per conductor @ 25°C |
Voltage Rating | 30 V RMS (UL AWM Style 2919)150 V RMS (CL2) |
Property | Value |
Operating Temperature | -20°C to +70°C |
Min. Bend Radius | 3.25 in (82.55 mm) |
Standard / Regulation | Compliance |
NEC / UL Compliance | CL2 |
UL AWM Style | AWM 2919 (30 V, 80°C) |
UL Flammability | UL1685 |
RoHS | Yes |
CE Mark | Yes |
Environmental Suitability | Indoor |
