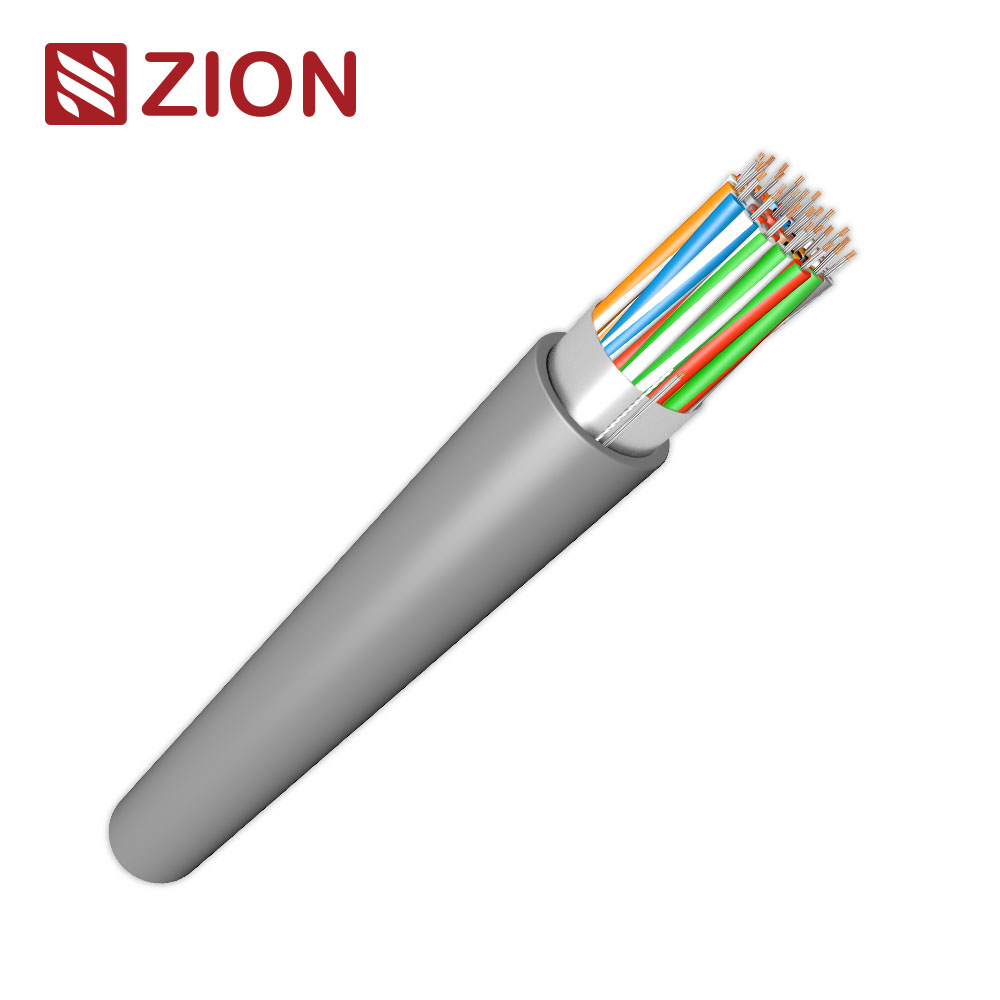

RS485/232 Cable, 28AWG 12.5PR, Foil, PVC, 120Ω
SKU: 73012
RS485/RS422/RS232 serial data communication
Industrial control systems (PLC, HMI, SCADA)
Building automation systems
Security and access control wiring
Point-to-point or multi-drop data networks
Component | Specification | |
Conductor (Pairs) | 12 pairs, AWG 28 (7/36# = 7/0.127mm) stranded tinned copper (TC) | |
Conductor (Single) | 1 conductor, AWG 28 (7/36# = 7/0.127mm) stranded tinned copper (TC) | |
Insulation (Pairs) | FPE (Foam Polyethylene), 0.032 in (0.81 mm) thick, Ø 0.077 in (2.0 mm) | |
Insulation (Single) | FPE, 0.014 in (0.36 mm) thick, Ø 0.044 in (1.1 mm) | |
Color Code (Pairs) | 1. White/Blue & Blue/White | 7. Red/Orange & Orange/Red |
Or Type 2 | Each Pair: Pure Color & White: | |
Gray | ||
Shield Type | Overall (Aluminum + Polyester), ＞110% coverage | |
Drain Wire | AWG 28 (7/36# = 7/0.127mm) stranded tinned copper | |
Outer Jacket | PVC (Polyvinyl Chloride), Color customization. | |
Jacket Thickness | 0.035 in (0.89 mm) | |
Overall Cable Diameter | 0.385 in (9.78±0.3mm) | |
Ripcord | Yes | |
Property | Value |
Conductor DCR (Pairs) | 73.5 Ohm/1000ft |
Conductor DCR (Single) | 72.1 Ohm/1000ft (237 Ohm/km) |
Capacitance (Cond-to-Cond) | 11 pF/ft (36 pF/m) |
Capacitance (Cond-to-Shield) | 20 pF/ft (66 pF/m) |
Characteristic Impedance | 120 Ohm |
Velocity of Propagation | 78% |
Max. Current (Pairs) | 0.5 Amps per conductor @ 30°C |
Max. Current (Single) | 1.6 Amps per conductor @ 30°C |
Voltage Rating | 30 V (AWM 2919), 300 V (CL2) |
Property | Value |
Operating Temperature Range | -20°C to +70°C |
Stationary Bend Radius | 3.85 in (97.8 mm) |
Installation Bend Radius | 3.85 in (97.8 mm) |
Max. Pull Tension | 54.6 lbs (24.8 kg) |
Standard / Regulation | Compliance |
NEC / UL Compliance | CL2 |
UL AWM Style | AWM 2919 (30 V, 80°C) |
UL Flammability | UL1685 |
RoHS | Yes |
CE Mark | Yes |
Environmental Suitability | Indoor |
