18AWG 2/C SOL FPL-CL2 Fire Alarm Cables

Fire Alarm Cable Description
ZION COMMUNICATION supplies a wide range of fire alarm cables which are for use with fire monitoring,
fire detection, power-limited fire alarm systems, smoke detectors, signaling, audio circuits, control circuits,
fire protective circuits and security systems.
All HANGZHOU ZION COMMUNICATION CO.,LTD fire alarm cables comply with International standards within
the industry. If you do not find the product you need in then we offer the option of a special custom design cable. Here you can choose between different constructions, jacket colours or other materials etc.

Key Features
These products are solid conductor or multi conductor cables that come in a shielded and unshielded version.
The variations are PVC, Plenum, shielded and unshielded which automatically puts this cable in at least
4 types of different applications. Standard ways of asking for it would be fire alarm cable, shielded fire alarm cable, FPLR cable and FPLP cable which stated for Riser and Plenum.

Why chose us as your partner?
  ● Price: You can get ultimate reasonable factory price of the CATV coaxial cable itself from us!
  ● Service: You will enjoy best service from our export team on price for import and export, shipping time, documents and custom policy, which will save cost ultimately  and create biggest value for you.
  ● Quality Guarantee:You will received 100% quality pass testing before sending to our customers; also we are responsible for all products during it’s normal lifetime.

18AWG 2/C SOL FPL-CL2

Fire Alarm Cables

NO.7110006

Cable construction

Conductor:

18AWG Solid Bare Copper

Nom.Dia:0.04''(1.02mm)

Dielectric:

Type: Polypropylene

Dia.over Dielectric: 0.052±0.004''nom.(1.32±0.10mm)

Color Code:

1.Blk

2.Red

Jacket:

Type: PVC

Color: Red

Dia.over Jacket: 0.134''±0.006''(3.40±0.15mm)

Print Legend:

HELLOSIGNAL NO.7110006 18AWG 2C 60C E××××××(UL) FPL-CL2
SUN RES(ROHS) ××××M/FT DEVICE/ZONE
A B C D E F 1 2 3 4 5 6 7 8 9

Electrical Properties

Temperature Rating

-20℃ ~ +60℃

Operating Voltage

300 Volts max

Capacitance

20 pf/ft nom

Impedance

81 Ohms nom

DC Resistance

6.5 Ohms/M' at 20℃

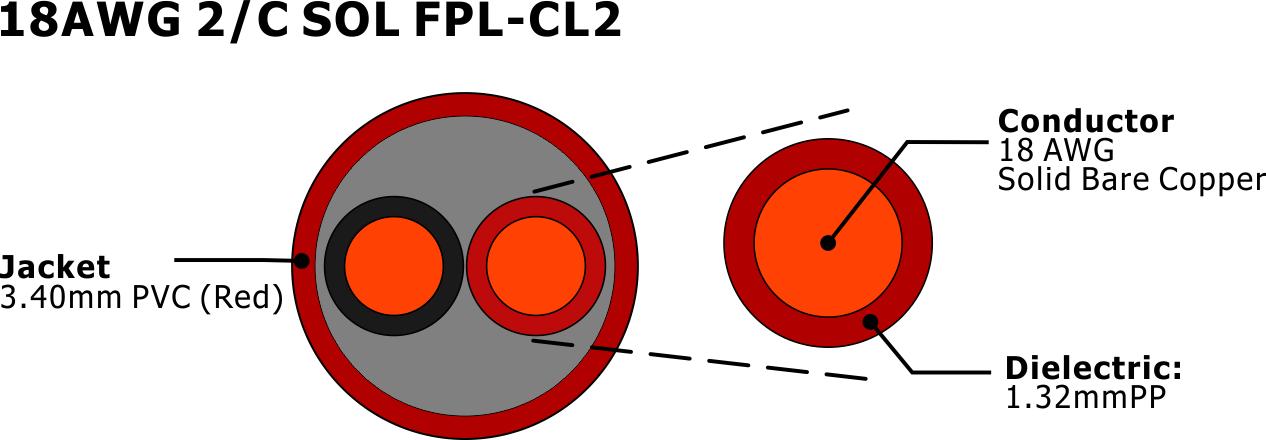

Cross Section

The Factory

We have a study and design label,a professional team of engineers and skilled workers, also with the advanced machines and modern factories which can provide our customers with outstanding quality, service, and pricing.
Monthly Production Capacity:
Wire (Copper/copper clad aluminium) drawing: 500 Metric Tons+
Coaxial Cable: 14,000KM+
Telephone Cable: 10,000KM+
Data & Computer Cable: 12,200KM+
Security & Fire Alarm Cable: 10,000KM+
Other Cable Types: 10,000KM+
Cable Accessories: 180,000pcs+
Telecom Accessories: 180,000pcs+

Packing

We have abundant types of packing for you,such as reel, plastic spool, wooden spool,pull box, colorful carton, pallet and many other more. Also our design team will supply you best solution of the packing for size ,firm and artistic outlooking.

Order Informations

Package

Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet...

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL®OR OEM

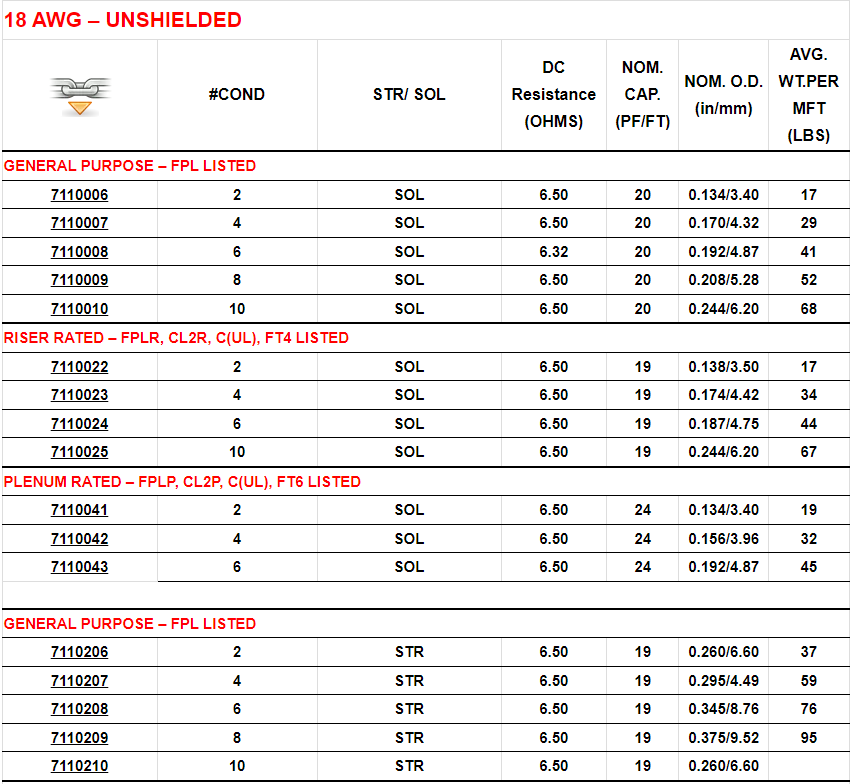

Similar Type

18 AWG – UNSHIELDED

#COND

STR/ SOL

DC Resistance (OHMS)

NOM. CAP. (PF/FT)

NOM. O.D. (in/mm)

AVG. WT.PER MFT (LBS)

GENERAL PURPOSE – FPL LISTED

7110006

2

SOL

6.50

20

0.134/3.40

17

7110007

4

SOL

6.50

20

0.170/4.32

29

7110008

6

SOL

6.32

20

0.192/4.87

41

7110009

8

SOL

6.50

20

0.208/5.28

52

7110010

10

SOL

6.50

20

0.244/6.20

68

RISER RATED – FPLR, CL2R, C(UL), FT4 LISTED

7110022

2

SOL

6.50

19

0.138/3.50

17

7110023

4

SOL

6.50

19

0.174/4.42

34

7110024

6

SOL

6.50

19

0.187/4.75

44

7110025

10

SOL

6.50

19

0.244/6.20

67

PLENUM RATED – FPLP, CL2P, C(UL), FT6 LISTED

7110041

2

SOL

6.50

24

0.134/3.40

19

7110042

4

SOL

6.50

24

0.156/3.96

32

7110043

6

SOL

6.50

24

0.192/4.87

45

GENERAL PURPOSE – FPL LISTED

7110206

2

STR

6.50

19

0.260/6.60

37

7110207

4

STR

6.50

19

0.295/4.49

59

7110208

6

STR

6.50

19

0.345/8.76

76

7110209

8

STR

6.50

19

0.375/9.52

95

7110210

10

STR

6.50

19

0.260/6.60

RISER RATED – FPLR, CL2R, C(UL), FT4 LISTED

7110222

2

STR

0.138/3.85

7110223

4

STR

0.174/4.82

7110224

6

STR

0.187/4.97

7110225

10

STR

0.244/6.60

PLENUM RATED – FPLP, CL2P, C(UL), FT6 LISTED

7110241

2

STR

0.134/3.85

7110242

4

STR

0.156/4.40

7110243

6

STR

0.192/5.28
