18AWG 4C SOL FPLR-CL2R Fire Alarm Cables

Cable construction :

Conductor:

18AWG Solid Bare Copper

Nom.Dia:0.04''(1.02mm)

Dielectric:

Type: Polypropylene

Dia.over Dielectric: 0.052±0.004''nom.(1.32±0.10mm)

Color Code:

1.Blk

2.Red

3.Ylw

4.Grn

Jacket:

Type: PVC

Color: Red

Dia.over Jacket: 0.174''±0.006''(4.42±0.15mm)

Print Legend:

HELLOSIGNAL NO.7110023 18AWG 4C 75C E××××××(UL)SOL FPLR-CL2R

SUN RES(ROHS) ××××M/FT DEVICE/ZONE

A B C D E F 1 2 3 4 5 6 7 8 9

Electrical Properties :

Temperature Rating

-20℃ ~ +75℃

Operating Voltage

300 Volts max

Capacitance

21 pf/ft nom

Impedance

75 Ohms nom

DC Resistance

6.5 Ohms/M' at 20℃

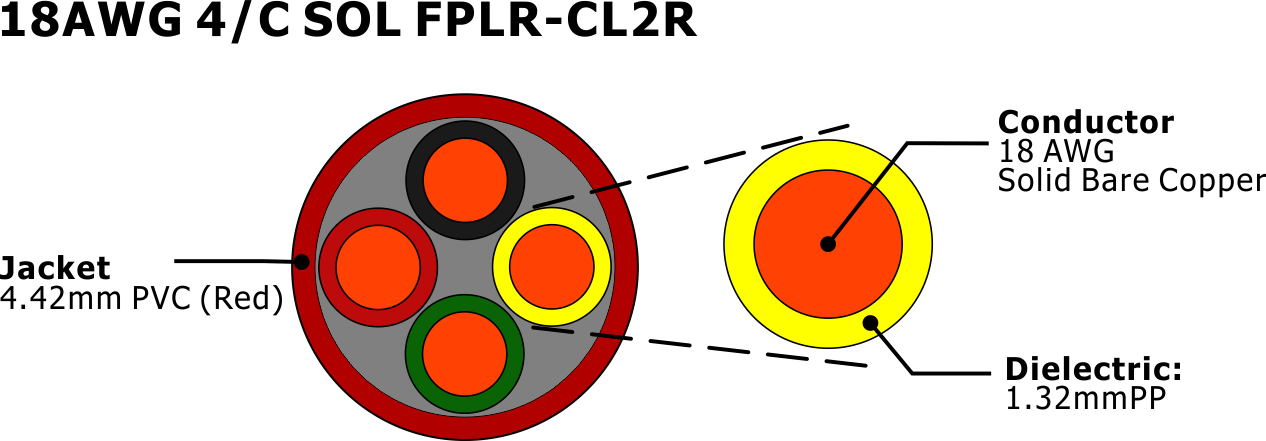

Cross Section :

Order Informations :

Package

Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet...

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
