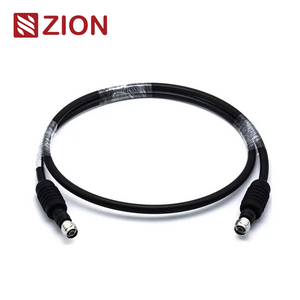

1/2" Superflex Jumper, 4.3/10 Male Straight to 7/16 DIN Male Straight

Cross Section:

Interface:

According to

IEC 61169-54 / IEC-60169-4

Electrical:

Characteristic Impedance

IEC 61169-54 / IEC-60169-4

Freqency Range

IEC 61169-54 / IEC-60169-4

VSWR

IEC 61169-54 / IEC-60169-4

Features and Applications:

√ High tensile strength

√ All dielectric structure and semi-dry core design

√ Small diameter and light weight

√ Self-supporting aerial installation

Optical Characteristics:

G.652.D

G.655

50/125um

62.5/125um

Attenuation

@850nm

-

-

≤3.0 dB/km

≤3.0 dB/km

@1300nm

-

-

≤1.0 dB/km

≤1.0 dB/km

@1310nm

≤0.36 dB/km

≤0.40 dB/km

-

-

@1550nm

≤0.22 dB/km

≤0.23 dB/km

-

-

Bandwidth

@850nm

-

-

≥500 MHz · km

≥200 MHz · km

@1300nm

-

-

≥1000 MHz · km

≥600 MHz · km

Polarization
mode
dispersion

lndividual fibre

≤0.20 ps/√km

≤0.20 ps/√km

-

-

Design link value
(M=20,Q=0.01%)

≤0.10 ps/√km

≤0.10 ps/√km

-

-

Technical Data:

Item

Contents

Fibers

Fiber Count

6|12|24

48

72

96

144

288

Loose Tube

Tubes* Fbres/Tube

1x6 | 2x6
4x6

6x 8
4x12

6x12

8x12

12x12

24x12

Outer diameter (mm)

1.8

2.0

2.5

2.5

2.5

2.5

Adjustable (OEM)

1.5|2.0

1.8|2.3

2.1|2.3

2.1|2.3

2.1|2.3

2.1|2.3

Central strength member

Material

Glass Fbre Reinforced Plasticrod (GFRP)

Diameter (mm)

2.0

2.0

2.5

2.8

3.7

2.6

Adjustable (OEM)

1.8|2.3

1.8|2.3

2.5

2.8

3.7

2.6

PE coated diameter (mm)

No

4.2

7.4

4.8

Water Blocking

Material

Water blocking tape

Peripheral Strength

Material

Aramid Yarn

Outer Sheath

Thickness (mm)

1.8mm(1.5-2.0mm OEM)

Cable diameter(mm)Approx.

9.5

9.5|10

12.2

13.9

17.1

20.2

Cable diameter(mm) Adjustable (OEM)

8.0|8.5|9.0

10.5|11.0

-

-

-

-

Operating temperature range(℃)

From -40~+70

Max. span (m)

50m | 80m | 100m | 120m | 150m

Climate condition

No Ice,25m/s Max Wind Speed

MAT

Design according to customer requirements

√  Other structure and fibre count are also available according to customer requirements.

√   Cable diameter and weight in this table is typical value, which will fluctuate according to different designs

√  The span needs to be recalculated due to other climate conditions according to the installation area.
