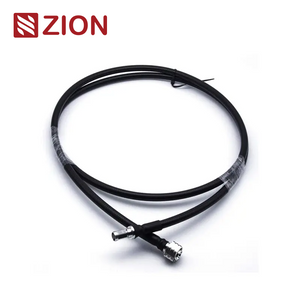

Super Flex Jumper Cable
HELLOSIGNAL
50ohm coax cable
50 ohm
Normally 15 working days
NINGBO, SHANGHAI
3/8”Superflex Jumper, | |||

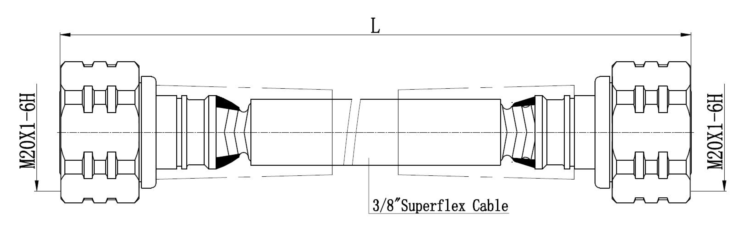

Cross Section: | |||
| |||
Interface: | |||
According to | IEC60169-11 | ||
Electrical: | |||
Characteristic Impedance | 50 ohm | ||
Freqency Range | DC-3.6GHz | ||
VSWR | ≤1.15(0-4GHz) | ||
Insertion Loss(dB) @(DC-400MHz） | ≤0.744 | ||
Insertion Loss(dB) @(401-960MHz） | ≤1.077 | ||
Insertion Loss(dB) @(961-1880MHz） | ≤1.452 | ||
Insertion Loss(dB) @(1881-2170MHz） | ≤1.597 | ||
Insertion Loss(dB) @(2171-2690MHz） | ≤1.802 | ||
Insertion Loss(dB) @(2691-4000MHz） | ≤2.299 | ||
Inter modulation@2-tonex20w | ≤-160 dBc | ||
Dielectric Withstanding Voltage | ≥1100V RMS,50Hz, at sea level | ||
Dielectric Resistance | ≥5000MΩ | ||
Mechanical: | |||
Durability | Mating cycles ≥500 | ||
Material and plating: | |||
Part | Material | Plating | |
Body | Brass | Tri-alloy | |
Insulator | PTFE | - | |
Center conductor | Phosphor bronze/Brass | Ag | |
Others | Brass | Ni | |
Environmental: | |||
Temperature Range | -60℃～+85℃ | ||
Watertightness | IP68 | ||
RoHS | Full | ||
