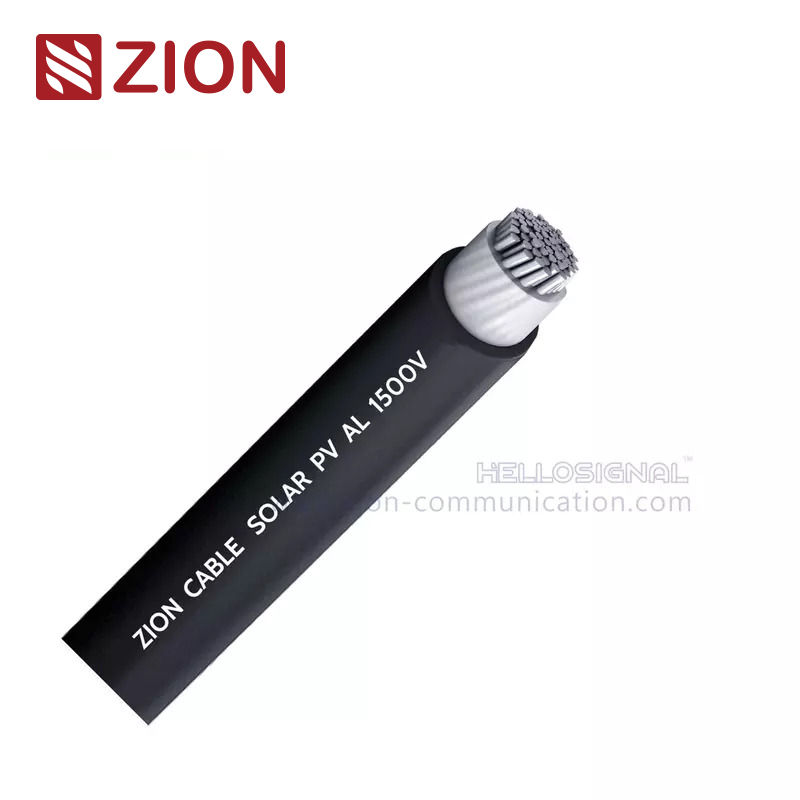

7194302 Solar Aluminum Alloy Conductor Cable-10.0mm² (TUV standard)

10.0mm² Solar Aluminum Alloy Conductor Cable
 - 2 PfG 2642/01.22-(NO.7194302)

■ General characteristics:

■ Application:

The cables are suitable for use in class II equipment as defined in IEC 61140.

We suggest using this type instead of a 6 sqm copper conductor solar cable.

■ Advantage:

Aluminum wire is lighter and more manageable than copper and can be easier to install, especially for long-distance runs. Aluminum has a much lower scrap value than copper, making it less attractive to thieves. In some configurations, the ‘loaded costs’ of aluminum PV wire (including infrastructure and labor)  can be less than copper.

■ Cable Construction:

Conductor:

Material: Aluminum Alloy

Nom.Size(mm²): 1*10.0

Shape: Class 5 by Annex A

Construction(N/mm): 79/0.41

Conductor(Dia./mm): 4.35 (Ref.)

Max.D.C.Resistance at 20℃: 2.89 Ohm/KM



Insulation: 120℃ XLPE/XLPO

Nom. thickness (mm): 0.8 (Ref.)

Standard diameter (mm): 5.8±0.10

Colour: NATURAL

Resistance: 489 Mega Ohm/KM at 20℃



Jacket: 120℃ XLPE, Black

Min. thickness (mm): 0.7

Nom. thickness (mm): 0.9 (Ref.)

Outer diameter (mm): 7.60±0.1

Approx Net Weight: 76 KGS/1KM

Making: 2 PfG 2642 PV1500DC-AL-K 1×10mm²  120℃

HALOGEN-FREE  LOW  SMOKE  ZION

■ Electrical properties:

Rated Voltage: DC 1500V

Max. permitted Voltage: DC 1800V

Ambient Temperature: -40℃~+90℃

Thermal Index: 120℃ for 20000h

Fire Performance: IEC/EN 60332-1-2

Halogen-free: Yes

Resistance to chemicals and oils: EN 50618

Service life: ＞25 years ( -40℃~+90℃)

Temperature: -40~90℃

Conductor resistance (20℃): 2.89Ω/km

Insulation resistance (70℃): 489  MΩ/km

Speak voltage(V/5min): AC 6500V or DC 15000V

Min bending radius(mm): 10*D





■ Package:

Standard packing length: 1000 Mtrs ± 5%

Cable and sealing: Yes with end caps

Non. Standard length: 10%-20% QUANTITY TO BE SUPPLIED IN NON-STD.LENGTHS.

Order Quantity Tolerance: ± 5%
