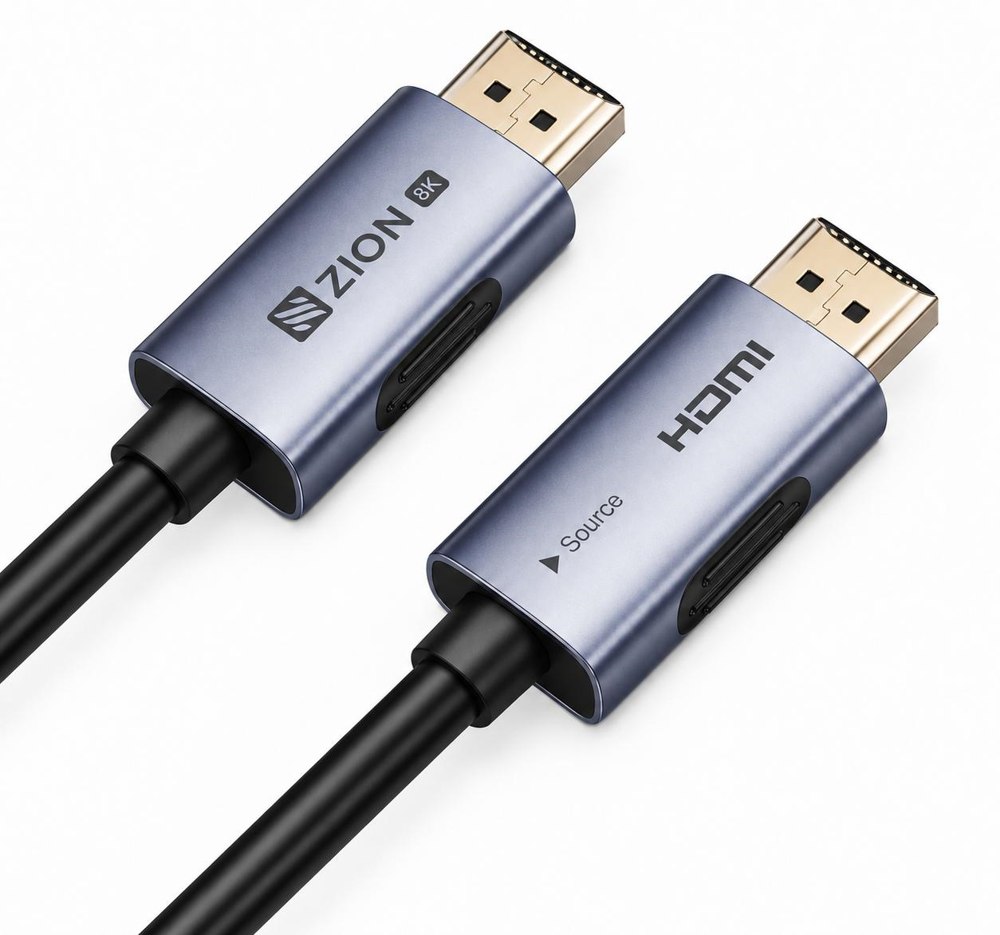

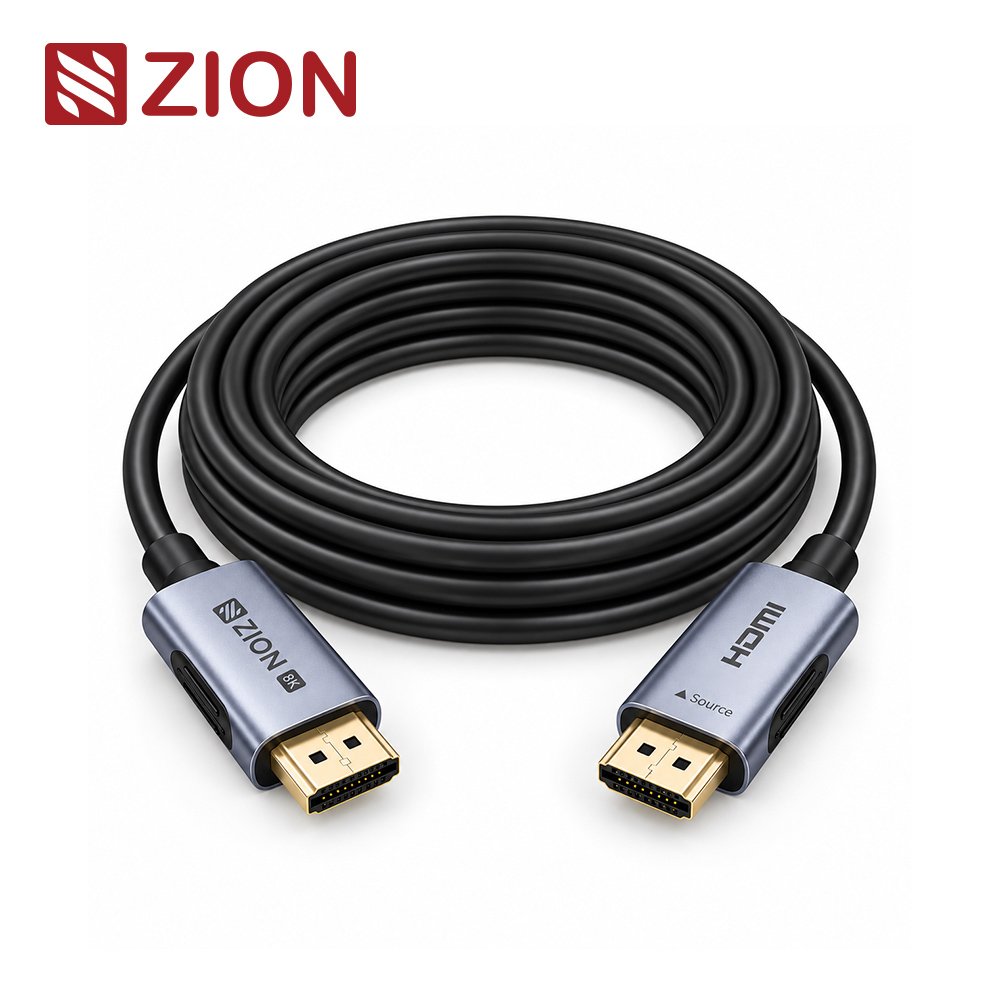

What Is the ZC-A147 HDMI AOC?
ZC-A147 is an active optical HDMI cable that carries high-speed audiovisual data through OM3 optical fiber while retaining copper conductors for auxiliary electrical functions. Integrated electronics inside the connector housings perform the electrical-to-optical and optical-to-electrical conversion, providing a plug-and-connect form factor without separate external transmitter and receiver boxes.
The cable is specified for bandwidth up to 48Gbps, 8K@60Hz with Display Stream Compression and 4K@120Hz. Its 4.8 mm outer diameter is designed for easier routing through AV furniture, ceilings, equipment spaces and concealed pathways than many long copper HDMI assemblies.
When to Choose Active Optical HDMI
For long point-to-point routes, 8K or 4K120 requirements, narrow cable pathways, ceiling-mounted projectors, meeting-room displays and installations where a slim 4.8 mm cable is preferred.
For shorter device-to-display links where cable distance is limited, installation access is easy and the selected passive cable is verified for the required bandwidth.
Key Benefits
Specified for high-bandwidth HDMI links including 8K@60Hz with DSC and 4K@120Hz system requirements.
Available across a broad 0.5 m to 100 m range for equipment racks, projectors, displays and concealed AV routes.
Four OM3 optical fibers and seven oxygen-free copper conductors are integrated into a 4.8 mm cable.
Supports full 4:4:4 color sampling together with HDR10, HDR10+, Dolby Vision and HLG formats listed in the product specification.
eARC support is specified for compatible Dolby Atmos, DTS-HD and Dolby TrueHD source, display and audio systems.
VRR, ALLM, QFT and QMS are listed for compatible consoles, PCs, displays and content modes.
Applications
Long table-to-display and equipment-rack-to-screen connections for professional presentation systems.
Concealed routes between AV receivers, media sources, ceiling projectors and large-format displays.
Point-to-point signal links for retail displays, information screens and commercial presentation systems.
Connections between workstation sources, equipment racks and high-resolution monitoring displays.
Compatible source-to-display links where 4K@120Hz, VRR and low-latency system features are required.
Product supply for AV brands, distributors, system integrators and project contractors requiring defined lengths and packaging.
Specifications
| Specification | ZC-A147 |
|---|---|
| Product Type | HDMI active optical cable / fiber optic HDMI cable |
| Model | ZC-A147 |
| Bandwidth | Up to 48Gbps |
| Video Support | 8K@60Hz with DSC; 4K@120Hz |
| Chroma Sampling | 4:4:4 |
| HDR Formats | HDR10, HDR10+, Dolby Vision, HLG |
| Audio / Return Channel | eARC; Dolby Atmos, DTS-HD and Dolby TrueHD support as listed |
| Gaming Features | VRR, ALLM, QFT, QMS |
| Length Range | 0.5 m to 100 m |
| Cable Construction | 4-core OM3 optical fiber + 7 oxygen-free copper conductors |
| Outer Diameter | 4.8 mm |
| Jacket | Eco-friendly PVC, black |
| Connector Type | HDMI Type A, 19-pin, male to male |
| Connector Plating | 24K gold on copper |
| Connector Shell | Space gray |
| Signal Direction | Directional; Source connector is marked |
Performance depends on cable length, source output, display input, system firmware and content format. Confirm the required length and complete equipment chain when requesting samples or project approval.
Procurement & Customization Support
ZION can prepare the ZC-A147 for distribution or project supply according to confirmed length, quantity, labeling and packaging requirements. For projects, request a length-specific sample and verify the cable with the actual source and display before bulk installation.
Specify the installed route length and allow practical service slack without creating unnecessary excess cable.
Discuss connector marking, jacket printing, product labels and brand presentation for confirmed orders.
Request datasheets, packing information, samples and available compliance documents for submittal review.
RFQ Checklist
State the exact cable length required from 0.5 m to 100 m.
Confirm 8K@60Hz, 4K@120Hz or another required resolution and refresh rate.
Provide source, display, AV receiver or switch model information.
Describe conduit, ceiling, wall, rack, bend and connector-clearance conditions.
List fire rating, compliance documents, test reports or sample approval needs.
State quantity, target packaging, labeling, OEM and delivery requirements.
FAQ
What is an HDMI AOC?
An HDMI AOC is an active optical HDMI cable that converts high-speed electrical signals to optical transmission inside the connector modules. ZC-A147 combines four OM3 optical fibers with seven oxygen-free copper conductors.
What resolutions does ZC-A147 support?
The available specification identifies support for up to 48Gbps, 8K at 60Hz with DSC, and 4K at 120Hz. Final performance should be confirmed for the required length and source/display combination.
What lengths are available?
ZC-A147 can be supplied in lengths from 0.5m to 100m. Buyers should state the exact length and required video format when requesting a quotation.
Is the ZC-A147 HDMI AOC directional?

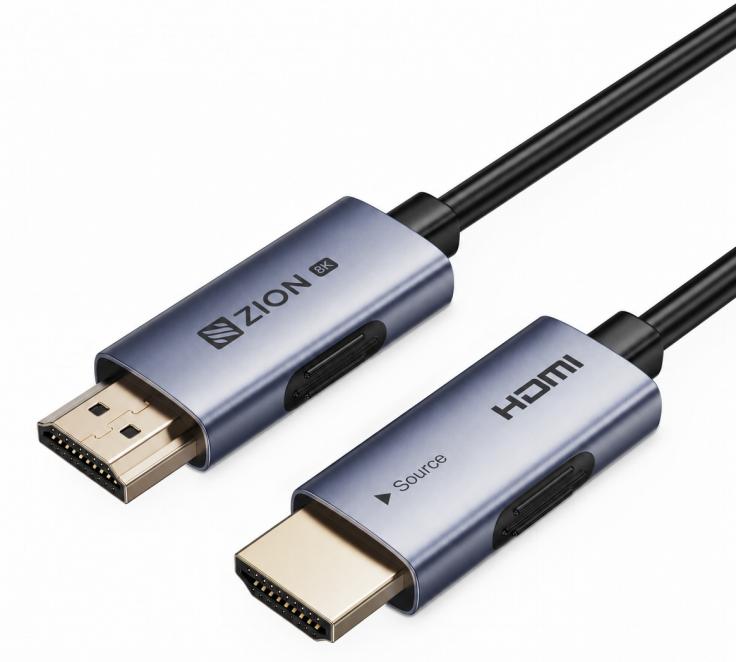

The connector housing includes a Source direction mark. Confirm the Source and Display ends before routing or concealing the cable, and request the installation guide for the selected length.
Does this fiber optic HDMI cable support HDR and gaming features?
The product specification lists HDR10, HDR10+, Dolby Vision, HLG, eARC, VRR, ALLM, QFT and QMS. Compatibility depends on the complete source, display and audio system.
What should be confirmed before ordering?
Confirm cable length, target resolution and refresh rate, source and display models, installation route, fire-rating requirement, quantity, packaging and any certification or project-document requirements.
