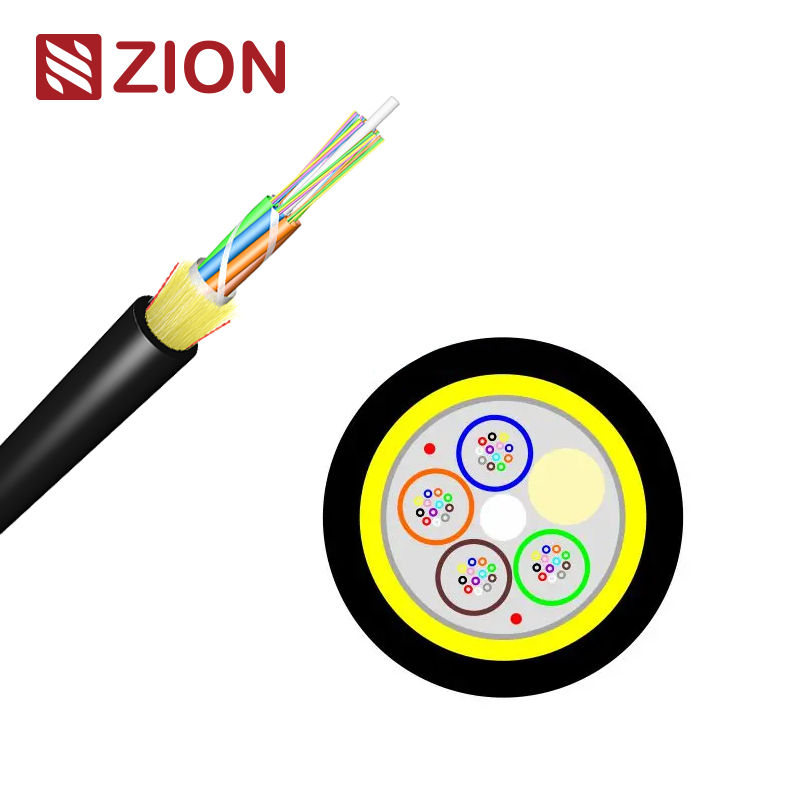

All Dielectric Self-supporting Aerial Cable

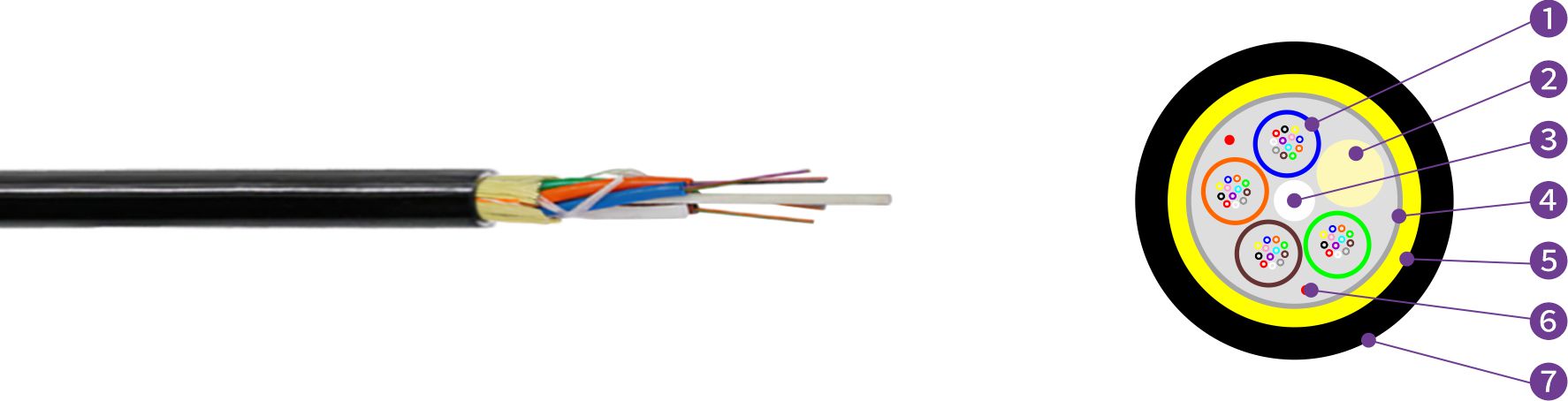

1. Loose Tube: thermoplastic material, containing optical fibres and filled with gel.

2. Filler Elements: thermoplastic rods.

3. Central Strength Member(CSM): glass fibre reinforced plasticrod (GFRP), coated with polyethylene when needed.

4.  Longitudinal Water Blocking Material: Water blocking tape.

5. Peripheral Strength Member: aramid yarn.

6.  Ripcord

7. Outer Sheath: black polyethylene.

Features and Applications

High tensile strength

✔ All dielectric structure and semi-dry core design

✔ Small diameter and light weight

✔ Self-supporting aerial installation

Optical Characteristics

Technical Data

• Other structures and fiber count are also available according to customer requirements.

• Cable diameter and weight in this table is typical value, which will fluctuate according to different designs

• The span needs to be recalculated due to other climate conditions according to the installation area.

ITU-T Rec. G.652.D             IEC 60794
GR-409                                 IEEE1222-2004
ICEA-596                              YD/T 1997-2009
