Alarm, signal Cable
hellosignal
UL, ETL, CE,CPR, RoHS
100m,305m,500m,500ft,1000ft
pull box, wooden spool, carton, pallet
10KM
Normally 25 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight

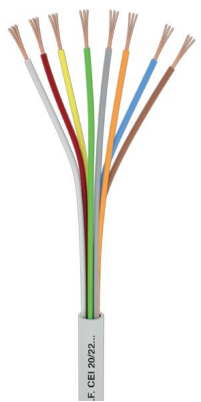

CABLES FOR CIVIL AND INDUSTRIAL SAFETY PLANTS - CPR-Eca | ||||||||
Cable Construction : | ||||||||
Inner Conductor: | Stranded Bare Copper |
| ||||||
Signal wire 0,22mm2 | 7×0.16mm Bare Copper | |||||||
Feeding wire 0,50mm2 | 9×0.25mm Bare Copper | |||||||
Feeding wire 0,75mm2 | 14×0.24mm Bare Copper | |||||||
Insulation | PVC | |||||||
Signal wire 0,22mm2 | φ1.0mm, Thickness ≥0,20mm | |||||||
Feeding wire 0,50mm2 | φ1.5mm, Thickness ≥0,20mm | |||||||
Feeding wire 0,75mm2 | φ1.7mm, Thickness ≥0,20mm | |||||||
Outer Sheath | Polyvinyl chloride-PVC White | |||||||
Thickness | ＞0,50mm | |||||||
Cabling printing | On the outer Sheath | |||||||
ZION COMMUNICATION ALARM CABLE (TYPE) CEI 20/22 III CEI 36762 C-4(Uo=400V) + BATCH | ||||||||
Standard Reference: | ||||||||
IEC 60228 / CEI 20-11 / EN 50363 / CEI UNEL 36762 | ||||||||
IDENTIFICATION OF CORES | ||||||||
0,22mm2: Black Red Yellow Green Brown Blue White Orange Purple Gray Pink Tan | ||||||||
0,50/0,75mm2: Black Red | ||||||||
Electrical Properties & CHARACTERISTICS: | ||||||||
Test Volatage | 0,22 wire : 1000V; 0,50/0,75 wire: 2000V | |||||||
Max. electrical resistance 20℃ | 0,22 wire: 125 Ω/km; 0,50 wire: 40 Ω/km; 0,75 wire: 27 Ω/km | |||||||
Operating Voltage: | 300 V (Max. vlotage to ground 400 V AC) | |||||||
Min. Bending Radius: | 10× cable diameter | |||||||
Operation Temperature: | -30℃ to +80℃ | |||||||
Installation Temperature: | -5℃ to +50℃ | |||||||
PACKAGE: 100mt, 500mt,1000mt | ||||||||
Hot selling types | ||||||||
ZION | Formation | Outer | Outer | CPR | ||||
i7111101 | 2×0.22 | 2.9 | PVC | CPR-Eca | ||||
i7111102 | 4×0.22 | 3.4 | PVC | CPR-Eca | ||||
i7111103 | 6×0.22 | 3.9 | PVC | CPR-Eca | ||||
i7111104 | 8×0.22 | 4.1 | PVC | CPR-Eca | ||||
i7111105 | 10×0.22 | 4.8 | PVC | CPR-Eca | ||||
i7111106 | 12×0.22 | 4.9 | PVC | CPR-Eca | ||||
i7111201 | 2×0.50 + 2×0.22 | 4.0 | PVC | CPR-Eca | ||||
i7111202 | 2×0.50 + 4×0.22 | 4.5 | PVC | CPR-Eca | ||||
i7111203 | 2×0.50 + 6×0.22 | 4.8 | PVC | CPR-Eca | ||||
i7111204 | 2×0.50 + 8×0.22 | 5.4 | PVC | CPR-Eca | ||||
i7111205 | 2×0.50 + 10×0.22 | 5.5 | PVC | CPR-Eca | ||||
i7111206 | 2×0.50 + 12×0.22 | 5.7 | PVC | CPR-Eca | ||||
i7111241 | 2×0.75 + 2×0.22 | 4.4 | PVC | CPR-Eca | ||||
i7111242 | 2×0.75 + 4×0.22 | 4.8 | PVC | CPR-Eca | ||||
i7111243 | 2×0.75 + 6×0.22 | 5.1 | PVC | CPR-Eca | ||||
i7111244 | 2×0.75 + 8×0.22 | 5.7 | PVC | CPR-Eca | ||||
i7111245 | 2×0.75 + 10×0.22 | 5.8 | PVC | CPR-Eca | ||||
i7111246 | 2×0.75 + 12×0.22 | 6.0 | PVC | CPR-Eca | ||||
Welcome for your OEM orders, contact us for quotation, sample now! | ||||||||
