Cat3 6P6C RJ11 connector

7024003  |  ZC-MP3-66UR

Modular Plug , 8P/8C, CAT6,Shielded, Round,
8-position, crystal head,100/bag

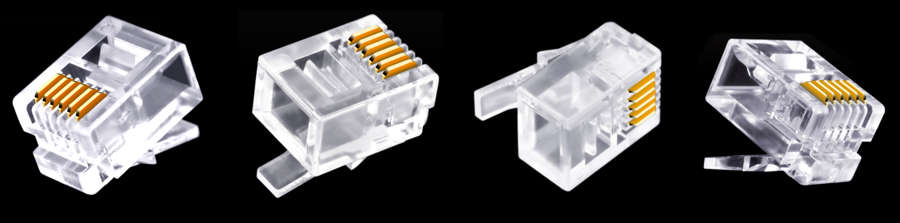

■ Physical photo:

■ Dimensional Structure:

■ Electrical Specifications:

ANSI/TIA Category: 5

Current Rating (Max): 0.75 A

Insulation Resistance (Min): 500 MΩ

Safety Voltage Rating: 150 Vac

Fluke Test: Compliant

■ General Specifications:

Cable Type: Round, unShielded

Interface: RJ11

Application: Data Communication

Operating Temperature: -40℃ to +85℃

Relative Humidity: Up to 93%, Non-condensing

Package Quantity: 100

Packaging Type: Bag | Box | Carton

Positions/Loaded Contacts: 6P/6C

■ Mechanical Specifications:

Conductor Gauge: Solid/Stranded 26-23 AWG

Contact Base Material: Phosphor Bronze

Contact Plating Material: Gold

Contact Plating Thickness: 50µ OR 30µ | 6µ

Material Type: Polycarbonate (PC)

Plug Insertion Life (Min): 750 Times

Plug Shield Base Material: Copper Alloy

Plug Shield Plating Material: Nickel

■ Regulatory Compliance/Certifications:

RoHS 2011/65/EU: Compliant

■ Ordering Information：

Label: Customizable

Delivery Time: Normally 15 Working Days

Brand: Hellosignal®

OEM: Yes
