Cat6 UTP 8P8C RJ45 connector

7024009  |  ZC-MP6-88UR

Modular Plug , 8P/8C, CAT6,Shielded, Round,
8-position, crystal head,100/bag

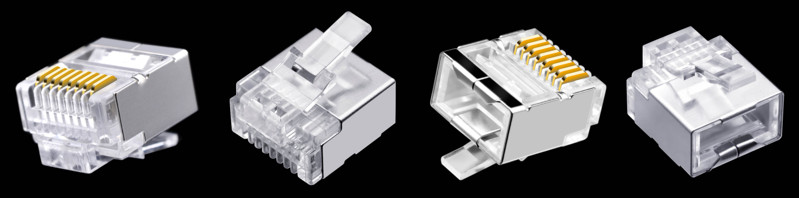

■ Physical photo:

■ Dimensional Structure:

■ Electrical Specifications:

ANSI/TIA Category: 5

Current Rating (Max): 0.75 A

Insulation Resistance (Min): 500 MΩ

Safety Voltage Rating: 150 Vac

Fluke Test: Compliant

■ General Specifications:

Cable Type: Round, Shielded

Interface: RJ45

Application: Data Communication

Operating Temperature: -40℃ to +85℃

Relative Humidity: Up to 93%, Non-condensing

Package Quantity: 100

Packaging Type: Bag | Box | Carton

Positions/Loaded Contacts: 8P/8C

■ Mechanical Specifications:

Conductor Gauge: Solid/Stranded 26-23 AWG

Contact Base Material: Phosphor Bronze

Contact Plating Material: Gold

Contact Plating Thickness: 50µ OR 30µ | 6µ

Material Type: Polycarbonate (PC)

Plug Insertion Life (Min): 750 Times

■ Regulatory Compliance/Certifications:

RoHS 2011/65/EU: Compliant

■ Ordering Information：

Label: Customizable

Delivery Time: Normally 15 Working Days

Brand: Hellosignal®

OEM: Yes

Email: info@zion-communication.com

7024009  |  ZC-MP6-88UR
Modular Plug , 8P/8C, CAT6,unshielded, round, 8-position,  crystal head,100/bag
Physical photo
Dimensional Structure
Electrical Specifications
ANSI/TIA Category				5
Current Rating,maximum				0.75 A
Insulation Resistance,minimum				500 mOhm
Safety Voltage Rating				150 Vac
Pass fluke test				Compliant
General Specifications
Cable Type				Round,unshielded
Interface				RJ45
Application
Operating Temperature				-40℃ to +85℃
Relative Humidity				Up to 93%, non-condensing
Package Quantity				100
Packaging Type				Bag  |  Box  |  Carton
Positions/loaded Contacts				8P/8C
Mechanical Specifications
Conductor Gauge				Solid/Stranded  26-23 AWG
Contact Base Material				Phosphor bronze
Contact Plating Material				Gold
Contact Plating Thickness				50μ  OR  30μ | 6μ
Material Type				PC = Polycarbonate
Plug Insertion Life,minimum				750 times
Regulatory Compliance/Certifications
RoHS 2011/65/EU				Compliant
Order Informations
Label				Can be customized
Delivery time				Normally 15 working days
Brand				Hellosignal ®
OEM				Yes
Email				info@zion-communication.com
