Double Suspension for OPGW | |||||||||||||||||||||||||
Double Suspension Set For OPGW with the use of double-Suspension design, including the inner and outer pre-twisted wire to connect two sets of hanging head and matching fittings. Clamp has excellent fatigue resistance, mainly for large height difference, span more than 800 | |||||||||||||||||||||||||

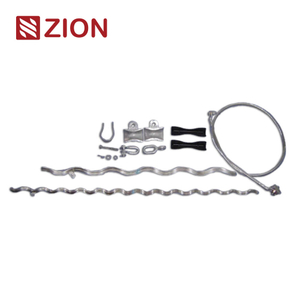

Pictures and illustrations: | |||||||||||||||||||||||||
1.Structural Reinforcing Rods 2.Dead-end Component 3.AGS Clamp 4.PS-Link | |||||||||||||||||||||||||
Model Specification: | |||||||||||||||||||||||||

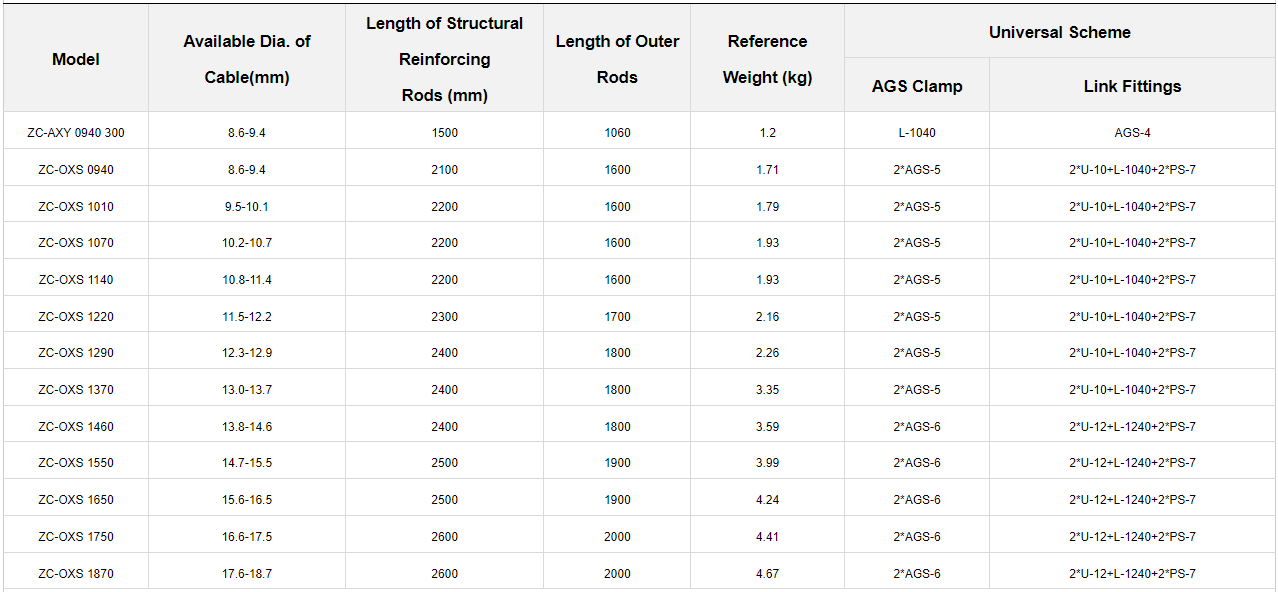

Model | Available Dia. of | Length of Structural Reinforcing | Length of Outer Rods | Reference | Universal Scheme | ||||||||||||||||||||
AGS Clamp | Link Fittings | ||||||||||||||||||||||||
ZC-AXY 0940 300 | 8.6-9.4 | 1500 | 1060 | 1.2 | L-1040 | AGS-4 | |||||||||||||||||||
ZC-OXS 0940 | 8.6-9.4 | 2100 | 1600 | 1.71 | 2*AGS-5 | 2*U-10+L-1040+2*PS-7 | |||||||||||||||||||
ZC-OXS 1010 | 9.5-10.1 | 2200 | 1600 | 1.79 | 2*AGS-5 | 2*U-10+L-1040+2*PS-7 | |||||||||||||||||||
ZC-OXS 1070 | 10.2-10.7 | 2200 | 1600 | 1.93 | 2*AGS-5 | 2*U-10+L-1040+2*PS-7 | |||||||||||||||||||
ZC-OXS 1140 | 10.8-11.4 | 2200 | 1600 | 1.93 | 2*AGS-5 | 2*U-10+L-1040+2*PS-7 | |||||||||||||||||||
ZC-OXS 1220 | 11.5-12.2 | 2300 | 1700 | 2.16 | 2*AGS-5 | 2*U-10+L-1040+2*PS-7 | |||||||||||||||||||
ZC-OXS 1290 | 12.3-12.9 | 2400 | 1800 | 2.26 | 2*AGS-5 | 2*U-10+L-1040+2*PS-7 | |||||||||||||||||||
ZC-OXS 1370 | 13.0-13.7 | 2400 | 1800 | 3.35 | 2*AGS-5 | 2*U-10+L-1040+2*PS-7 | |||||||||||||||||||
ZC-OXS 1460 | 13.8-14.6 | 2400 | 1800 | 3.59 | 2*AGS-6 | 2*U-12+L-1240+2*PS-7 | |||||||||||||||||||
ZC-OXS 1550 | 14.7-15.5 | 2500 | 1900 | 3.99 | 2*AGS-6 | 2*U-12+L-1240+2*PS-7 | |||||||||||||||||||
ZC-OXS 1650 | 15.6-16.5 | 2500 | 1900 | 4.24 | 2*AGS-6 | 2*U-12+L-1240+2*PS-7 | |||||||||||||||||||
ZC-OXS 1750 | 16.6-17.5 | 2600 | 2000 | 4.41 | 2*AGS-6 | 2*U-12+L-1240+2*PS-7 | |||||||||||||||||||
ZC-OXS 1870 | 17.6-18.7 | 2600 | 2000 | 4.67 | 2*AGS-6 | 2*U-12+L-1240+2*PS-7 | |||||||||||||||||||
Note: 1. The maximum single side suspension angle of single suspension clamp is 30 ° - 36 °. |
