FTTX ADSS Tension clamp High Strength Fiber overhead wire Cable Suspension Clamp ADSS Clamp high tension cable clamp ZCPGC-01

Specification：

P/N

ZCPGC-01

Product Material

Polyamide 6 or Polyamide 66 and Galvanized steel (PA6.PA66+CS)

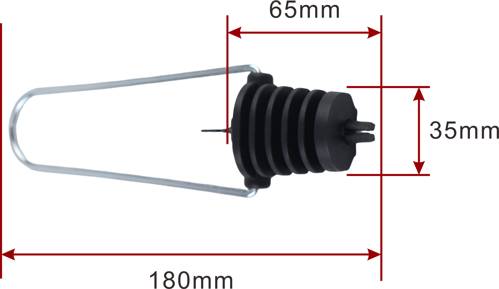

Product Size

180*65*35mm

Bearing Tensile

1.1 KN or 2.5KN

Per Weight

114g

Applicable Wire Diameter

Φ2-10mm

Packing Specifications

Carton Size：41*37*35cm Weight：23.5KG

Single Box Quantity

200pcs/Carton

Application

Fiber optical systems

Brand

HELLOSIGNAL® OR OEM

MOQ

200pcs

Application:

● Optic Anchoring Clamp For Adss Tension Cable Clip Drop Fiber Clamp Dead End plastic wire clamps
● Used to relieve strain on messenger wire.
● Suit for ADSS overhead line cable
● Provides dead ending at the ends of the poles
● Offers double dead ending to jointing poles
● Provides double anchoring at poles located in hilly areas
● Other applications in Fiber optical systems

 Features:

● High tensile strength and stability.
● Is used to connect a overhead fiber cable to a optical devices or a house, widely used indoor / outdoor installation.
● Self-adjustable wedge.
● Suitable for 4-8mm diameter FTTH round cables.
● Strong corrosion resistance, acid resistance and alkalinity in the field.
● Simple, fast installation, no require other tools.
● Special designed metal gasket Better cable grip.
● High quality with Competitive price.
● Perfect environment stability.
● Effective cable clamping due to the conical wedging system.
● Without drop cable bending during installation.
● Open bail allow easy installation on cross-arm or pole brackets.

Description：

● This Conical wedge clamp composed of an opened thermoplastic body with very high mechanical and climatic resistance, an inner sheath consisting one or two insulating plastic wedges ensuring the clamping of the neutral messenger without damaging cable insulation. Two stainless bail ends are compressed on it to lock into clamp. Simple assembling because the wedges open by pulling them back.The flexible steel loop can be fixed into a closed eye bracket.
● It is suitable for the fixation of butterfly optical cables, with stable tension and durable products. Different materials can adapt to the field environment with different acid and alkali strengths.
● ADSS clamp is developed for tensioning of fiber optical ADSS cable applied in aerial network routes. Is allow to be used on cable spans up to 100 meters, the exact distance depends on fiber optic cable configuration.
● ADSS Tension clamp is a very simple electrical hardware that attaches the aerial cables, whetherinsulated or non-insulated, to some support.lts design allows to transmit adequate but required mechanical anchoring of cables to the conductor orsupport.The anchoring clamp provides a connection to insulators of different conductors as well.An anchoring clamp is known chiefly as a dead-end type of strain clamp.
● The ADSS tension clamp consists of self-adjusting palstic wedges ,which clamp the optical cable without damaging. Wide range of gripping capacities archived by different types of wedges ADSS anchor clamp.
● The stainless steel bail allows installations of clamps on a pole brackets or hooks at seaside area.
● These clamps allow an easy and quick cable installation by gripping directly onto cable outer sheath without need to use additional protector.
● The ADSS tension clamp  consists of plastic body with elongated captive clamping wedges and flexible stainless steel bail. High-strength UV-stabilized plastic provides reliable fit in any environments. Elongated wedges are designed for better contact area of cable sheath and there are multiple fixing ledges on them.
● FTTX drop cable anchor clamps passed the tensile tests,Operation experience with temperatures ranging form-40degree up to 60 degree test. Temperature cycling test,aging test , Corrosin resistant test.
