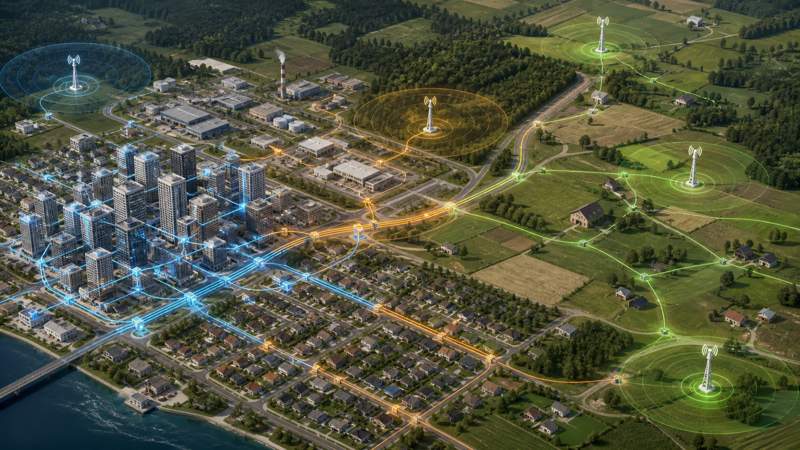

Start with the service zone, not the technology
Divide the target service area into small planning zones. A city-wide average can hide major differences between dense apartment districts, low-rise suburbs, industrial areas and dispersed settlements.
For each zone, collect:
- serviceable premises and occupied premises;
- expected take-up by phase rather than one optimistic final figure;
- building type and internal distribution constraints;
- existing ducts, poles, fibre routes and usable mobile sites;
- wayleave and building-access lead time;
- available spectrum and sector capacity;
- peak-hour throughput and latency target;
- indoor signal conditions and CPE installation requirement;
- backhaul capacity and upgrade path;
- grid reliability, backup power and field-maintenance access;
- required activation date and investment horizon.
Without this information, “fibre is better” and “FWA is cheaper” are both incomplete statements.
Use a decision matrix
| Planning factor | FTTH tends to fit when | 5G FWA tends to fit when | Evidence required |
|---|---|---|---|
| Premises density | many serviceable premises share feeder and distribution infrastructure | premises are dispersed or early take-up is uncertain | GIS count and address validation |
| Existing assets | ducts, poles or fibre routes can be reused lawfully and practically | usable radio sites and sector capacity already exist | asset survey and ownership record |
| Time to service | civil access and building permissions are available | rapid activation is required without new last-mile civil works | permit and deployment schedule |
| Capacity | stable high usage and long-term bandwidth growth justify a dedicated path | forecast demand fits the available radio capacity | busy-hour model, not headline speed |
| Installation | drop and in-building pathways are repeatable | suitable indoor or outdoor CPE can receive a stable signal | sample installations and signal survey |
| Operating model | operator can maintain ODN records, faults and spares | operator can manage radio optimisation, CPE and site power | operations capability review |
| Demand risk | take-up is sufficiently proven to support the fixed build | demand should be tested before a permanent drop network is built | phased commercial forecast |
GSMA guidance describes FWA as a last-mile alternative that can reach locations where new wireline deployment is difficult, while also recognising cases where fibre and FWA complement each other. It also notes that spectrum, power, site and transport costs still matter; removing the final cable does not remove the rest of the network. (GSMA FWA)
Compare capacity with busy-hour evidence
Do not compare a fibre port specification with a 5G promotional peak speed. For both options, model the service at busy hour.
FTTH inputs
- PON architecture and split approved by the operator;
- active subscribers sharing the PON resource;
- service mix and oversubscription policy;
- feeder and distribution loss budget;
- OLT and uplink capacity;
- planned upgrade path.
FWA inputs
- spectrum band and bandwidth;
- expected signal quality by premises type;
- sector load from mobile and fixed users;
- indoor versus outdoor CPE;
- backhaul capacity;
- traffic-management and service-policy assumptions.
Record the assumptions in the business case. A successful trial with a lightly loaded cell is not a substitute for a mature busy-hour model.

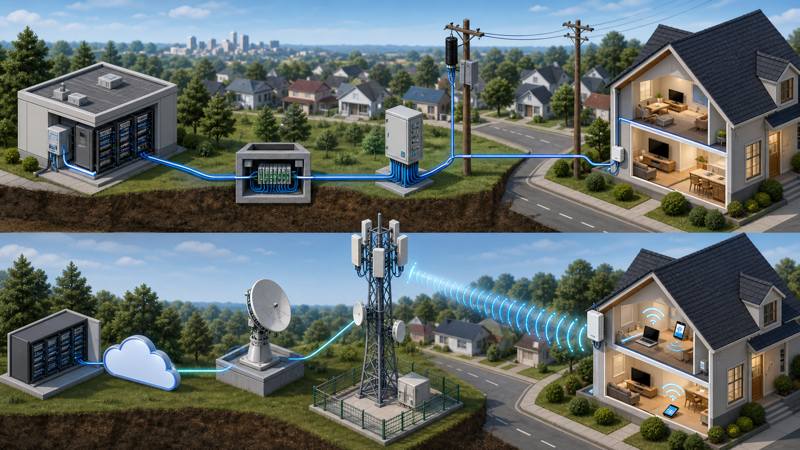

Compare the complete cost boundary
A fair cost comparison uses the same geographical boundary and service period.
| Cost group | FTTH | 5G FWA |
|---|---|---|
| Shared network | feeder, distribution, splitters, closures and active access | radio site, antenna/radio upgrade, transport and core capacity |
| Premises connection | drop cable, terminal, ONT and installation | indoor/outdoor CPE, mounting and installation where needed |
| Access rights | ducts, poles, roads and buildings | sites, spectrum and mounting rights |
| Energy | active node and customer equipment | radio site, cooling/backup and customer equipment |
| Maintenance | cable faults, connectors, ODN records and spares | RF optimisation, site faults, CPE and power system |
| Growth | additional split/ports, feeder capacity and electronics | spectrum, sectors, sites, radios and backhaul |
Use current local supplier quotes and operator cost data. Do not publish a universal cost per home; civil conditions, import costs, site rents and take-up differ too widely.

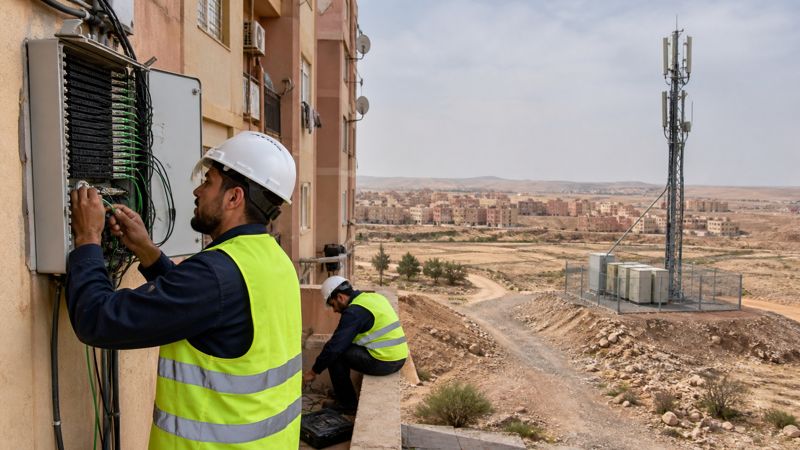

Three practical deployment patterns
Pattern 1: fibre-first dense zone
Use FTTH where verified premises density, reusable infrastructure and long-term demand support a permanent ODN. Standardise feeder, distribution and drop interfaces so additional connections do not require redesign.
Pattern 2: FWA-first demand discovery
Use FWA to open a low-certainty zone quickly, but record where demand, congestion or service requirements may justify later fibre. Reserve transport and site capacity so early success does not create a new bottleneck.
Pattern 3: hybrid access portfolio
Use fibre for dense buildings, business users, mobile backhaul and high-demand clusters; use FWA for dispersed or time-sensitive premises. The customer eligibility process should assign the appropriate technology by address, not by a blanket city label.
Where ZION can fit
ZION's credible role is on the passive fibre side of the comparison:
- outdoor and indoor fibre cable for feeder, distribution and backhaul;
- FTTH drop cable and passive ODN components;
- closures, terminal boxes, ODFs, pigtails, adapters and PLC splitters;
- fibre backhaul between mobile sites, aggregation points and core facilities;
- pre-terminated or installation-ready passive assemblies where supported by an approved specification.
ZION should not present itself as a 5G radio, spectrum-planning or FWA CPE supplier unless a separately verified product scope exists. The article should help an ISP identify where passive fibre is required even within a wireless access plan.
Data request before proposing an access package
Ask the customer for:
- a zone map and verified premises count;
- existing fibre, duct, pole and radio-site assets;
- target services and busy-hour assumptions;
- deployment phases and expected connections;
- aerial, duct and building installation rules;
- PON design inputs for FTTH zones;
- backhaul requirements for FWA zones;
- applicable standards, acceptance tests and documentation;
- required delivery sequence and spare strategy.
That information produces a defensible FTTH or backhaul BOM. A broad label alone does not.
Sources
- GSMA — Fixed Wireless Access: Economic Potential and Best Practices
- GSMA — Fixed-Wireless Access overview
Define the passive fiber scope behind the access plan
Share the zone map, existing fiber and site assets, target services, premises count, route methods, backhaul needs and rollout phases so ZION can review the cable and passive ODN portion of the project.
