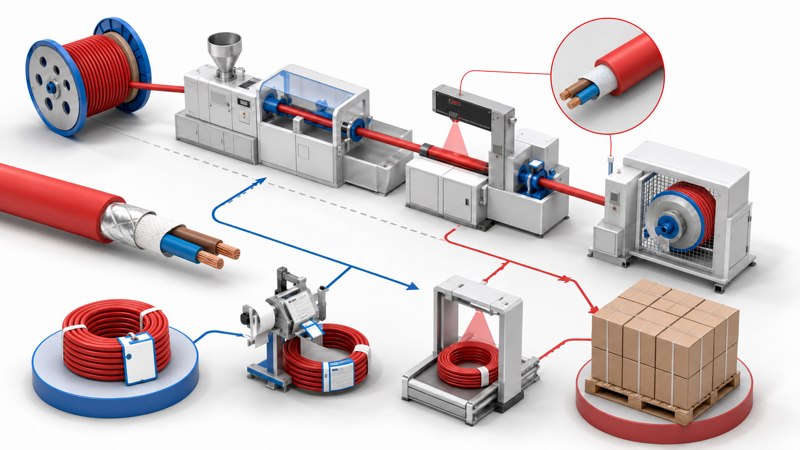

What Appears in ZION Fire Cable Printing Lines
EN and BS fire cable examples show printing patterns such as HANGZHOU ZION Fire Cables, the product family, voltage, number of cores, cross section, batch number, and meter marking. UL fire alarm cable examples show SKU, AWG, conductor count, temperature mark, UL/ETL reference area, SOL or STR, shielded or unshielded, rating, batch number, and FT device or zone marking.
Meter Marking vs FT Device or Zone Marking
| Marking Context | Catalog Wording | Where It Appears |
|---|---|---|
| Meter marking | BATCH NO. + METER MARKING | EN 50200, BS 6387, CPR, BS 7629, and JE-H(St)H examples. |
| FT device / zone marking | BATCH NO. + FT DEVICE/ZONE MARKING | UL plenum and riser fire alarm cable examples. |
| Customized items | Printing on sheath; label; carton | Product notes in multiple ZION fire cable tables. |
Sheath Color and Code Confirmation
Sheath colors listed in the catalog include red, white, orange, and more depending on the family. Several product notes say that if the cable uses a white outer sheath, the ZION code changes. The JE-H(St)H FE180-E30/E90 family lists orange sheath color in the construction block.

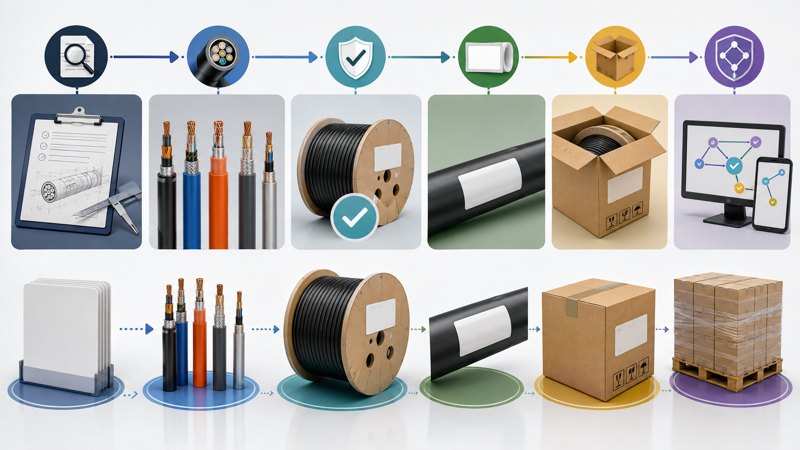

What to Send for Printing Approval
Send the required cable family, code or size table row, exact printing text, color, batch format, length marking preference, label requirements, carton requirements, package length, and any market-specific marking requirement.
FAQ
Is sheath printing optional?
The catalog lists standard printing examples and also notes customized printing on sheath. Confirm whether the project needs standard or customized text.
Why does marking matter for fire cable projects?
Marking supports identification, traceability, installation management, and later maintenance checks.
Should label and carton requirements be sent with the RFQ?
Yes. The catalog notes label and carton as customizable items, so they should be confirmed early if the project has special packaging or traceability requirements.
