GJYXCH

FTTH Cable Drop Autosoportado figura.8
GJYXCH-1F

Tamaño: 2.0 * 5.2 mm LSZH
Fibras: G.657.A1 | A2 (1 o 2)

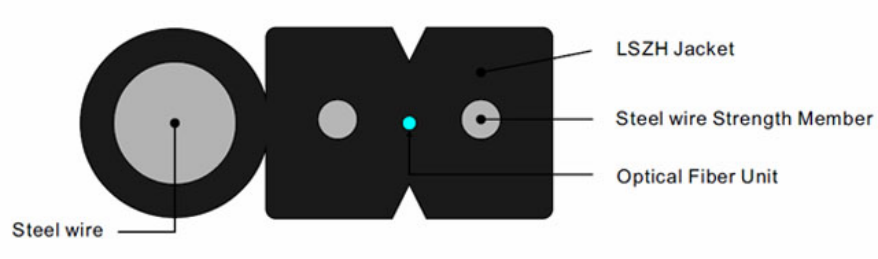

■ Sección transversal:

■ Technical Parameters:

Cable Code: GJYXCH-1

• Fiber Count: 1

• Dimensions (mm): 2.0 x 5.2 ± 0.2

• Cable Weight (kg/km): 19

• Tensile Strength (Long/Short Term) (N): 300 / 600

• Crush Resistance (Long/Short Term) (N/100mm): 2200

• Bending Radius (Dynamic/Static) (mm): 15 / 30



Cable Code: GJYXCH-2

• Fiber Count: 2

• Dimensions (mm): 2.0 x 5.2 ± 0.2

• Cable Weight (kg/km): 19

• Tensile Strength (Long/Short Term) (N): 300 / 600

• Crush Resistance (Long/Short Term) (N/100mm): 2200

• Bending Radius (Dynamic/Static) (mm): 15 / 30



Cable Code: GJYXCH-4

• Fiber Count: 4

• Dimensions (mm): 2.0 x 5.2 ± 0.2

• Cable Weight (kg/km): 19

• Tensile Strength (Long/Short Term) (N): 300 / 600

• Crush Resistance (Long/Short Term) (N/100mm): 2200

• Bending Radius (Dynamic/Static) (mm): 15 / 30

■ Características Físicas:

• Item: Optical Fiber

       Description: UV fiber G.657.A1/A2; @1310nm ≤ 0.35 dB/km; @1550nm ≤ 0.2 dB/km.



• Item: Strength Member

       Description: 2 Steel Reinforcements.



• Item: Self-Supporting Aerial

       Description: 1.0 mm Steel Wire.



• Item: Outer Sheath

       Description: LSZH (Low Smoke Zero Halogen), flame retardant; passes vertical flame test.



• Item: Cable Length / Reel

       Description: 1 km or 2 km (with a 2% tolerance for longer lengths).



• Item: Temperature Range

       Description: -20 °C to +60 °C.

■ Certificaciones similares:

ITU-T Rec. G.657A

IEC 60794

GR-409

ISO9001

ICEA-596

YD/T 1997-2009

■ Cor -12:



■ Información sobre pedidos:

Calificación: solicitud del cliente

Paquete: solicitud del cliente

El tiempode entrega: Normalmente 25 días después de recibido el depósito.

Marca: OEM
