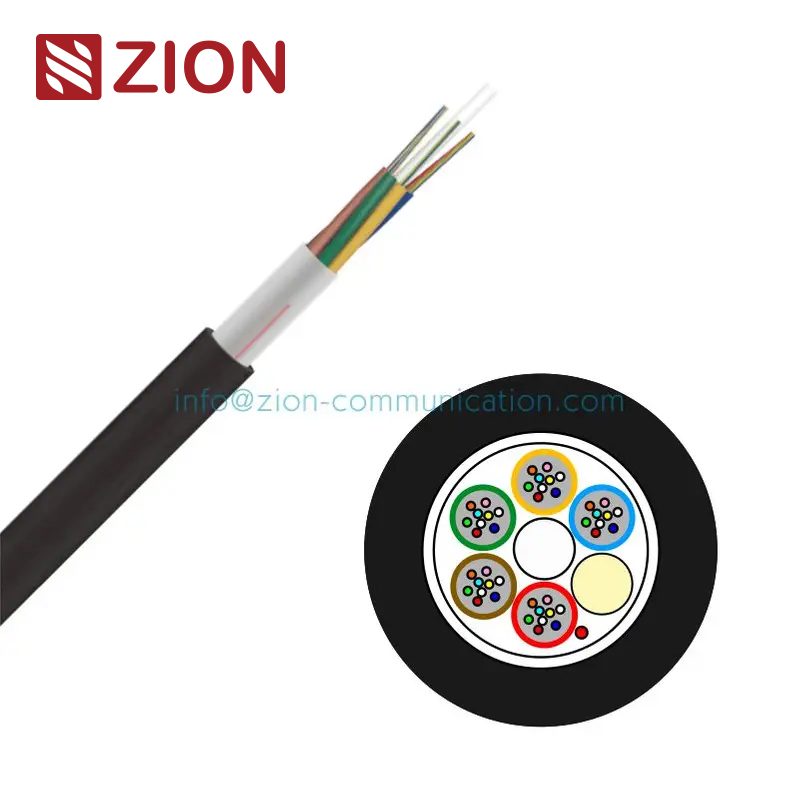

GYFY (HDD 4-144 Heavy Duty Duct cable)

  • Loose Tube All dielectric Semi-dry Optic Cable

  • hellosignal

Availability:
Inquire


GYFY

HDD 4-14 Heavy Duty Duct Fiber Cable

with 4-144 fiber for duct installation

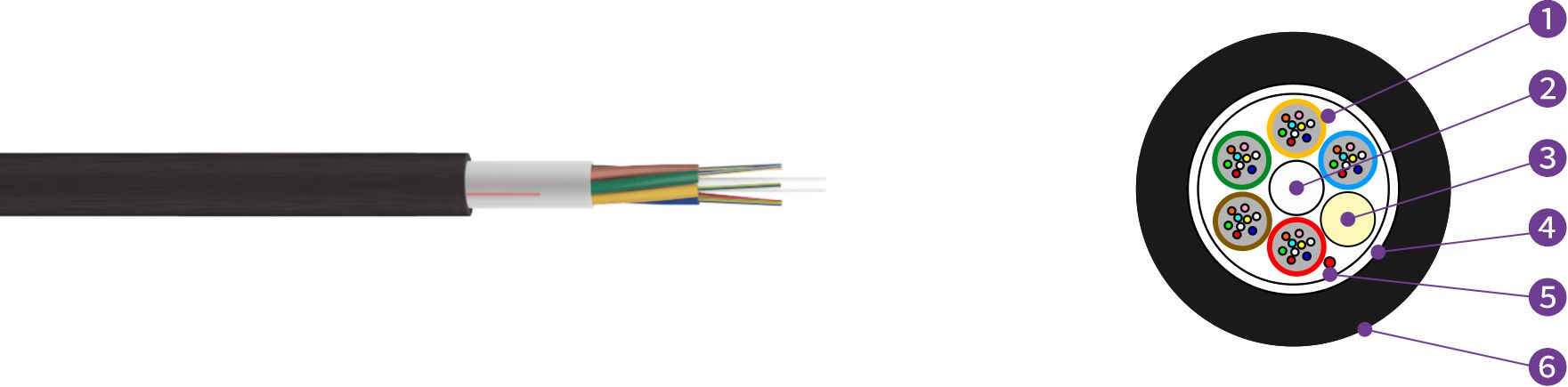

GYFY(Stranded Loose Tube All dielectric Semi-dry Cable)



  1. Loose Tube: thermoplastic material, containing optical fibers and filled with gel.

  2. Central Strength Member (CSM): Glass fibre reinforcedplastic rod (GFRP), coated with polyethylene when needed.

  3. Filler Elements: thermoplastic rods.

  4. Longitudinal Water Blocking Material: Water blocking tape.

  5. Ripcord

  6. Outer Sheath: black polyethylene.



PDF download



Description

  • Non-metallic structure

  • Lighting resistance

  • Duct installation or aerial installation

  • Semi-dry core design, easy for installation and splice

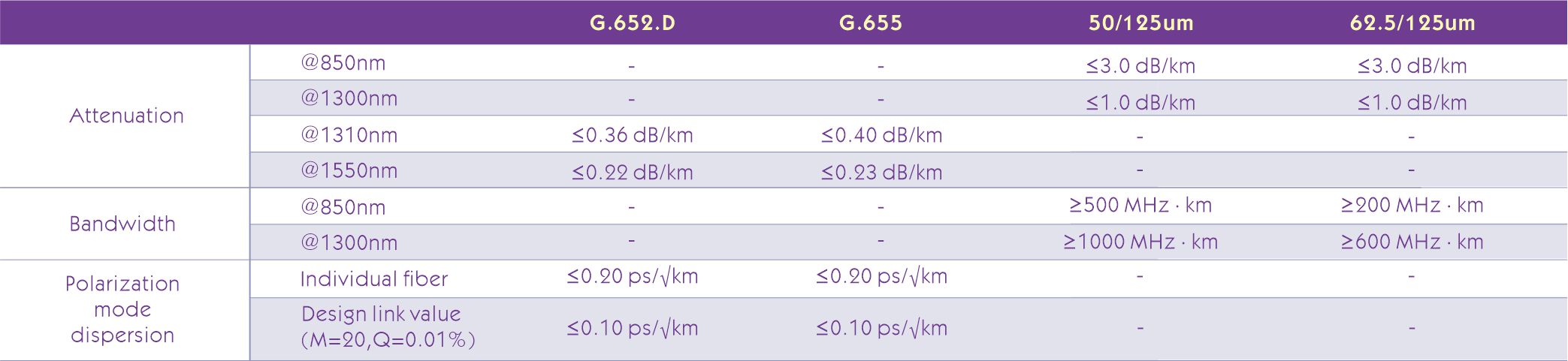

Optical Characteristics

Optical Characteristics



Standard

ITU-T Rec. G.657A           IEC 60794          GR-409

     ISO9001                     ICEA-596           YD/T 1997-2009



Structure and technical parameters

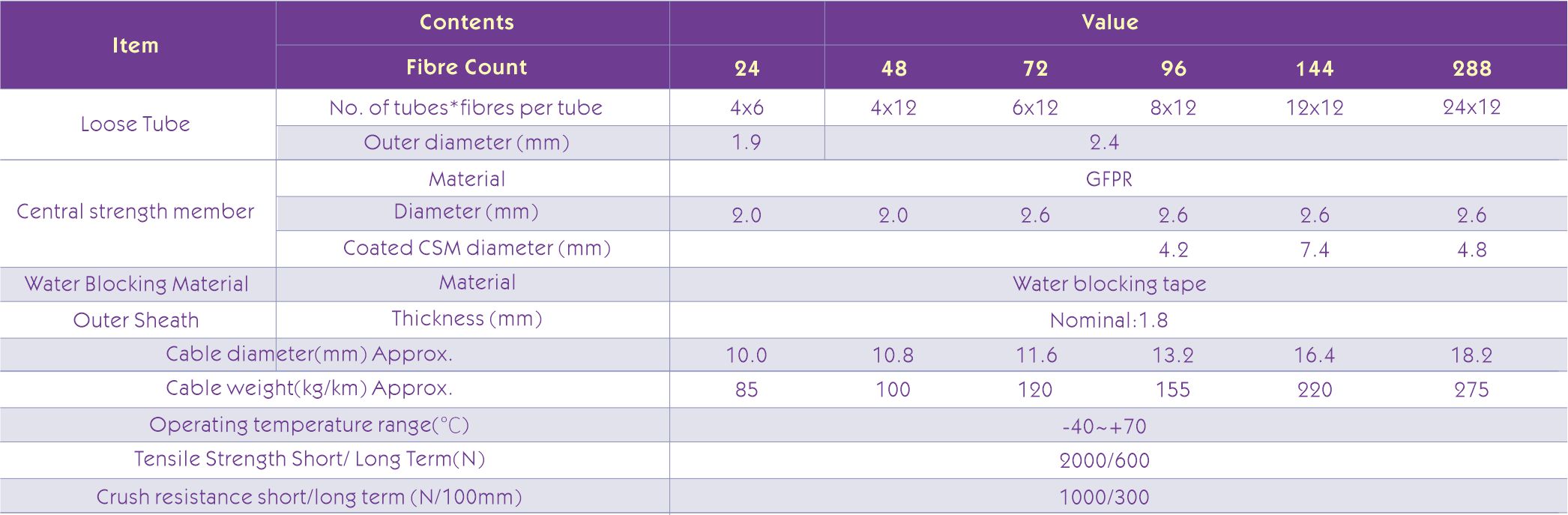

GYFY Technical Data
