GYXTW53

  • GYXTW53

  • N/M

  • N/M

  • Outdoor Fiber Optic Cables

  • UG Buried Duplex sheath

  • ISO9001

  • 3km/Spool

  • Wooden Spool ,Φ1200*750mm

  • 40km

  • 5-25 Days

  • NINGBO CHINA

  • 30%TT as deposit,70%Balance before shipping.

Availability:

Product Description

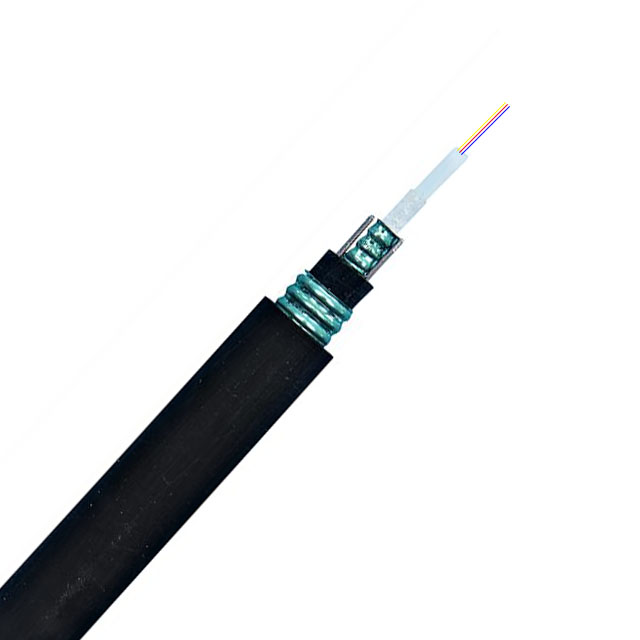

GYXTW53-96 photos


Characteristic: Double Jacket/Armor Optical Fiber cable

Cable Type: Central Tube Cable

Fiber Type: G.652.D
Jacket Material:
Flame retardant Polyethylene (PE)
Total Fiber Count: 4-8,10-12
Subunit Type: Gel-filled

Environmental Space: Indoor distribution

Armor:  PSP Armor


Technical data:

Numbers of fibers:  4-8,10-12

Design(Strength Member+Tube&Filler): Central-tube Cable

Fiber type: Single mode G.652.D

Strength Member: PSP

Loose Tube:  PBT

Filler Rope:  No

Water Blocking Layer(Material): Water Blocking tape

Additional Strength Member(Material):PSP

Outer Sheath:  Flame retardant Polyethylene (PE)

Cable Diameter(±0.2mm): 13mm;12mm;11mm;

Cable Weight(±10.0kg/km): 140-180kg

Attenuation coefficient :  @ 1310nm≤0.35dB ;   @ 1550nm ≤0.2dB

Min. bending radius Without Tension: 10.0×Cable-φ

Min. bending radius Under Maximum Tension: 20.0×Cable-φ


Description:

The GYXTW53 optical fiber cable is a kind of self-supporting aerial cable combines fiber optic with a diameter of 250μm and fiber count ranging from 2 cores to 12 cores inside a loose tube made of high modulus materials. The loose tube is filled with a waterproof compound, and its exterior is also waterproof treated to prevent water penetration into the fiber optic cable. There is a parallel FRP on each side, which is sheathed with PVC to form up cables. The design of the loose tube is beneficial to the lengthy problems for precise fiber optic control. The attenuation of this fiber optic cable is 1.0dB and the bandwidth of it is 1000MHz.km while it is transmitting at the wavelength of 1300nm.


Characteristics:

  • Good mechanical and temperature performance.

  • High strength loose tube that is hydrolysis resistant.

  • Special tube filling compound ensure a critical protection of fiber.

  • Crush resistance and flexibility.

  • Two parallel steel wires ensure tensile strength

  • Small diameter, light weight and friendly installation

  • Long delivery length

  • PSP enhancing moisture-proof


Fibre Colors

No.

1

2

3

4

5

6

Color

Blue

Orange

Green

Brown

Gray

White

No.

7

8

9

10

11

12

Color

Red

Black

Yellow

Violet

Pink

Aqua


Loose Tube Colors

No.

1

2

3

4

5

6

Color

Blue

Orange

Green

Brown

Gray

White

No.

7

8

9

10

11

12

Color

Red

Black

Yellow

Violet

Pink

Aqua



Single mode optical fiber (ITU-T Rec. G.652.D)

Item

Specification

Fiber type

Single mode

Fiber material

Doped silica

Attenuation coefficient

@ 1310 nm

@ 1383 nm

@ 1550 nm

@ 1625 nm



£ 0.35 dB/km

£ 0.32 dB/km

£ 0.21 dB/km

£ 0.24 dB/km

Point discontinuity

£ 0.05 dB

Cable cut-off wavelength

£ 1260 nm

Zero-dispersion wavelength

1300 ~ 1324 nm

Zero-dispersion slope

£ 0.092 ps/(nm2.km)

Chromatic dispersion

@ 1288 ~ 1339 nm

@ 1271 ~ 1360 nm

@ 1550 nm

@ 1625 nm

£3.5 ps/(nm. km)

£5.3 ps/(nm. km)

£18 ps/(nm. km)

£22 ps/(nm. km)

PMDQ (Quadrature average*)

£0.2 ps/km1/2

Mode field diameter @ 1310 nm

9.2±0.4 um

Core / Clad concentricity error

£ 0.5 um

Cladding diameter

125.0 ± 0.7 um

Cladding non-circularity

£1.0%

Primary coating diameter

245 ± 10 um

Proof test level

100 kpsi (=0.69 Gpa), 1%

Temperature dependence

0oC~ +70oC @ 1310 & 1550nm

£ 0.1 dB/km
